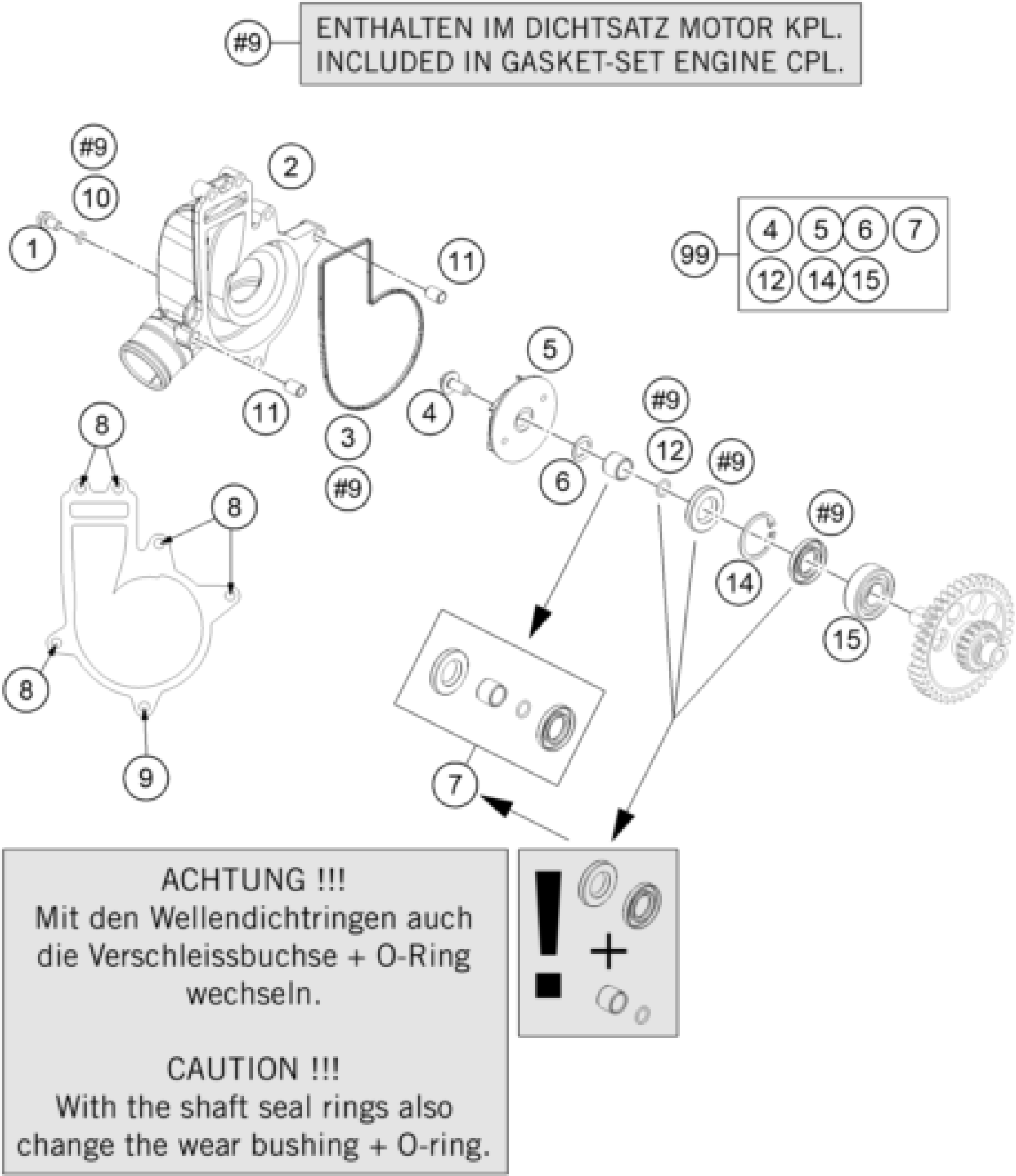

KTM 1190 ADVENTURE ABS ORANGE 2014 WATER PUMP Diagram

#

Description
Price

2

WATER PUMP COVER

6923505200041

$72.06

1

HH collar screw M6x10 TX30

0025060106

$3.08

3

MOLDED RING WATER PUMP COV. 08

61235061000

$6.07

4

HH collar screw M6x13 TX30

0024060136

$3.08

5

WATER PUMP ROTOR 08

61235055000

$7.66

6

double-d washer 16x1 SST

60035055150

$1.49

7

WEAR BUSHING WITH SEAL RING

61235065244

$55.25

8

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

O-RING 5,0X1,2 NBR 70

0770050012

$1.49

11

dowel sleeve 6x8x11.5

59030023000

$1.49

12

O-RING 9x1,5 V80 SH

07700900151

$2.05

14

CIRCLIP DIN0472-30X1,2 NIRO

04720300121

$4.11

15

CYL.ROLLER BEAR. NJ202 ECP C3

0412153511

$69.65

99

WATER PUMP REP. KIT RC8 13-14

61235055110

Unavailable
