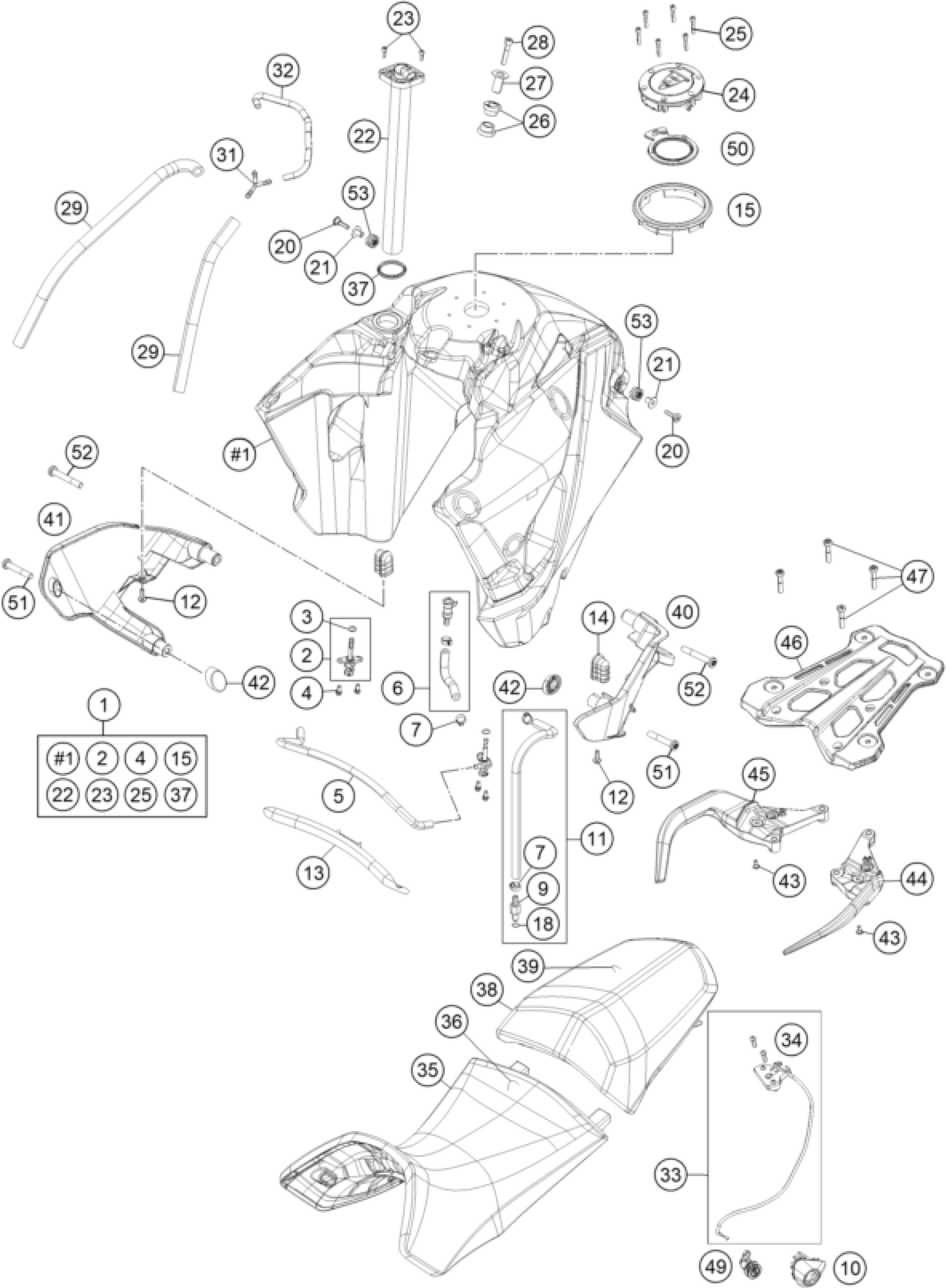

KTM 1190 ADVENTURE ABS ORANGE 2014 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL.

6030711304433A

$1,927.77

2

Fuel cock cmpl.

58507003200

$26.55

3

O-RING 1,78x10,82x14,38 2-013

0770020130

$2.05

4

HH collar screw M6x12 TX30

0025060126

$3.08

5

FUEL HOSE 6,4X3,2 L=510MM

60007416510

$21.12

6

FUEL HOSE TANK/CONNECTOR

60307017000

$37.48

7

Variable one-ear clamp 15.7mm

00050157706

$5.23

9

Plug CPC black 05

5850701030030

$43.28

10

SEAT LOCK COVER

60307053000

$11.12

11

FUEL HOSE 1 CPL.

60307016000

$50.11

12

HH collar screw M6x20 TX30

0024060206

$3.08

13

BRACKET FUEL HOSE

60307070000

$15.79

14

TANK RUBBER

60307020000

$24.40

15

TANK CAP RING

60307009000

$5.23

20

SPECIAL SCREW M6X32.5 ISA 40

60307025000

$10.46

53

rubber grommet, tank mounting

69007027000

$3.08

18

O-ring VITON f. plug CPC 0

58507012000

$6.26

21

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

22

GAS LEVEL SENSOR

60307080000

$138.65

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

TANK CAP

60307008100

$458.33

25

AH SCREW DIN0912-M 5X25

0912050253

$1.49

26

collar bushing, front tank hol

61007065000

$7.85

27

collar bushing, bearing, outsi

61007060000

$9.90

28

AH collar screw DIN0912 M8x40

0912080403

$2.05

29

HOSE 5,4X9,4 NBR, METER

60007126001

$7.10

31

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

$5.23

32

HOSE TANK BREAT.

60307008150

$27.39

33

SEAT LOCK CPL.

60307050000

$34.68

34

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

35

SEAT

60307040100

$263.85

36

SEAT COVER

60307040050

$37.95

37

Gasket fuel lever sensor

60307080090

$50.67

38

SEAT PILLION

60307047100

$137.53

39

SEAT COVER PILLION

60307047150

$45.15

40

TANK PROTECTOR L/S

60307027000B1A

$123.50

41

TANK PROTECTOR R/S

60307028000B1A

$123.50

42

DAMPER

60307032000

$8.31

43

Screw for expansion tank

69013099050

$4.11

44

HAND GRIP L/S

6031200800030

$22.99

45

HAND GRIP R/S

6031200900030

$24.86

46

BAGGAGE CARRIER BRIDGE

6031201000033S

$192.13

47

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

49

LOCK CYLINDER SEAT LOCK

60307050020

$145.76

50

GASKET TANK CAP

60307008190

$7.85

51

AH-COLLAR SCREW M10X60 ISA45

0035100609S

$9.34

52

AH-COLLAR SCREW M10X70 ISA45

0035100709S

$7.85
