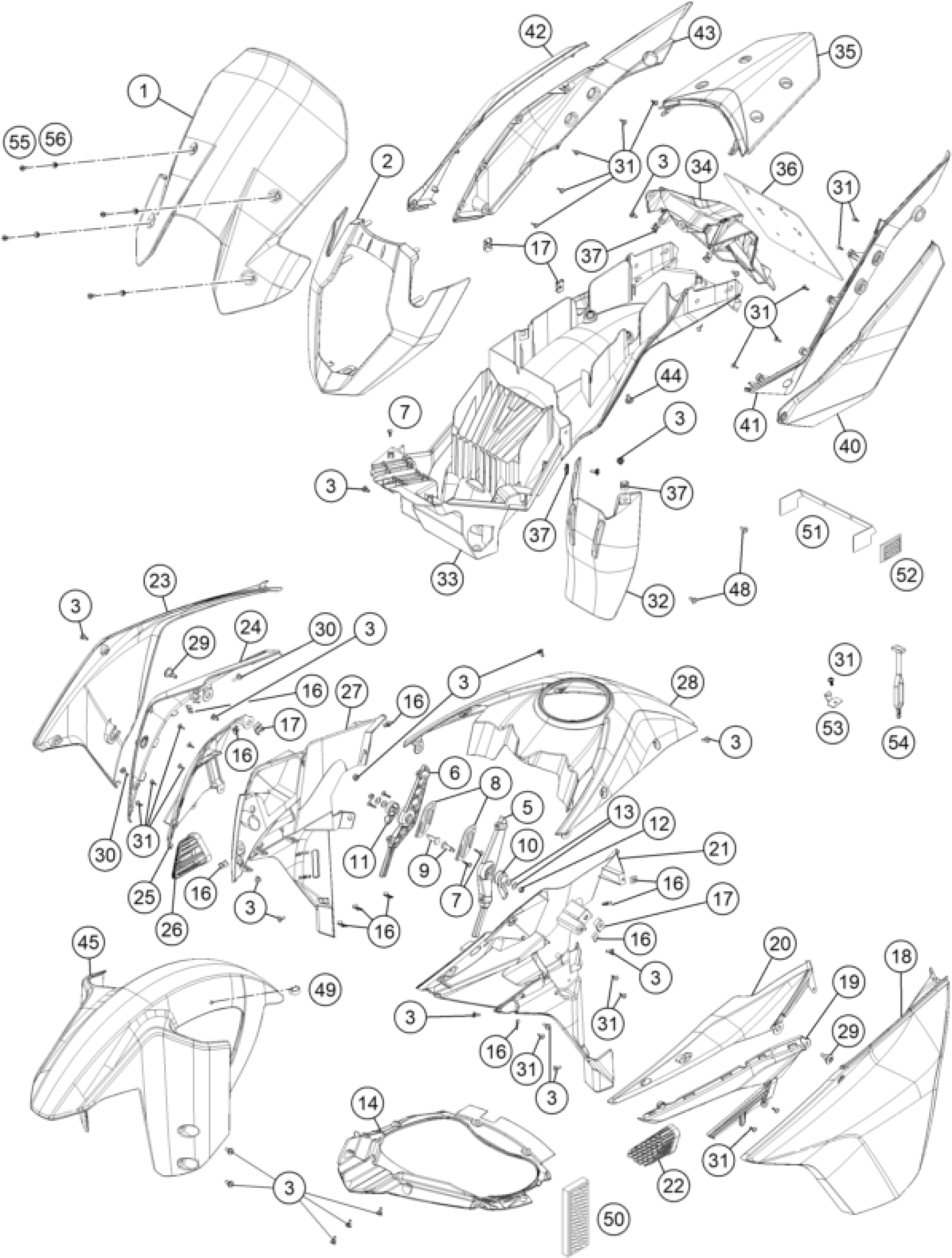

KTM 1190 ADVENTURE ABS ORANGE 2013 MASK, FENDERS Diagram

#

Description
Price

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

30

special screw M5x17

69008021060

$3.08

31

EJOT PT screw K50x12

0081050121

$2.05

32

SPLASH PROTECTION

60304050000

$14.58

33

TAIL END LOWER PART

60308019000

$57.96

34

NUMBER PLATE SUPPORT

60308015000

$18.97

35

REAR FENDER

6030801300033

$13.46

36

license plate mouning plate

60012081200

$8.41

37

RANGE CHANGE METAL NUT M5

54603048200

$5.23

40

SIDE COVER LEFT ORANGE

60308041000ECA

$237.95

41

REAR SIDE COVER LEFT

6030804300033

$25.89

42

SIDE COVER RIGHT ORANGE

60308042000ECA

$237.95

43

REAR SIDE COVER RIGHT

6030804400033

$25.89

1

WIND SHIELD USA

60308108000

$192.41

2

HEADLIGHT MASK

6030800100033

$29.49

3

special screw M5x12

69008021160

$4.11

5

WIND SHIELD SUPPORT L/S

60308008050

$19.16

6

WIND SHIELD SUPPORT R/S

60308008051

$22.43

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

SLIDING SHEET WIND SHIELD

60308008055

$6.63

9

TENSION BOLT

60308008056

$11.02

10

TENSION LEVER L/S

60308008052

$6.35

11

TENSION LEVER R/S

60308008053

$6.35

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

13

BELLEVILLE SPRING 8,2X15X0,8

0093081508

$1.49

14

COCKPIT COVER LOWER SIDE

60308005000

$19.37

16

clip nut M5

69008021080

$3.08

17

clip nut M6

54603048100

$4.11

18

SPOILER LEFT ORANGE

60308050000ECA

$407.84

19

AIR INTAKE L/S

6030800205033

$16.35

20

MASK SPOILER L/S

60308002000B1A

$97.14

21

INNER COVER LEFT

60308025000

$28.72

22

COVERING GRID AIR INTAKE L/S

60308021050

$12.15

23

SPOILER RIGHT ORANGE

60308051000ECA

$407.84

24

MASK SPOILER R/S

60308003000B1A

$97.14

25

AIR INTAKE R/S

6030800305033

$17.10

26

COVERING GRID AIR INTAKE RIGHT

60308031050

$11.12

27

INNER COVER RIGHT

60308026000

$28.72

28

COVER FUEL TANK ORANGE

60308030000ECA

$329.39

53

BRACKET FOR VEHICLE TOOLS

60312062000

$21.78

54

RUBBER L=145MM

50303018000

$6.44

44

SPECIAL SCREW M6X15X3

83008000015

$3.08

45

FRONTFENDER

6030811000033

$63.76

48

HH collar screw M8x12 TX40

0025080126

$3.08

49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

50

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

51

BRACKET SIDE REFLECTOR 06

62512081000

$27.95

52

SIDE REFLECTOR RED REAR

16512180100

$7.10

55

Special screw M5x14

60708008071

$2.05

56

rubber bush windshield fixatio

60708008070

$2.05
