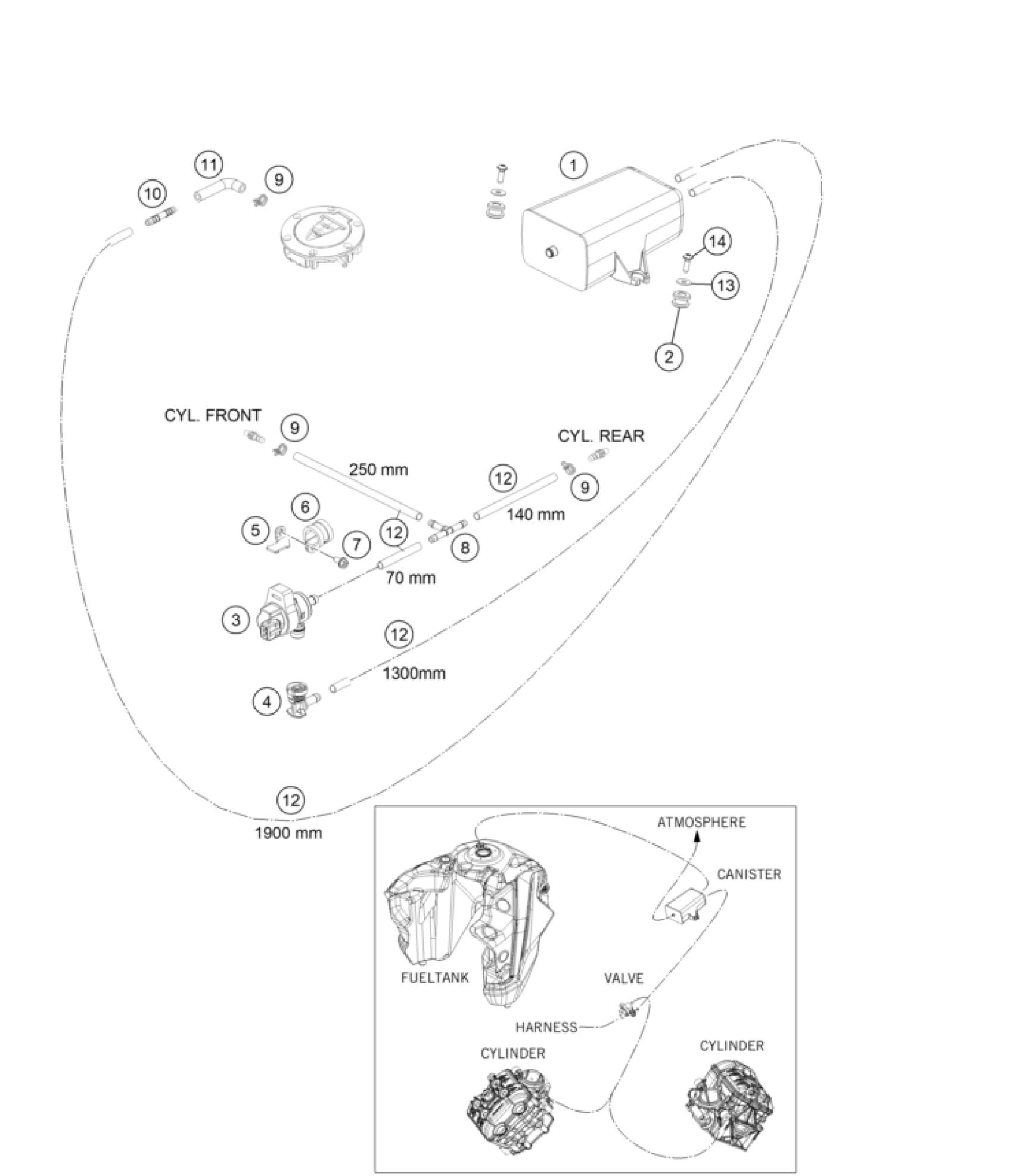

KTM 1190 ADVENTURE ABS GREY 2016 EVAPORATIVE CANISTER Diagram

#

Description

Price

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

1

EVAPORATE CANISTER

60415001000

$67.97

13

washer DIN 9021 A - 5.3

0021050003

$1.49

5

RETAINING PLATE VALVE EC

76515032000

$11.68

6

CLAMP RSGU 18/15 03

59007439000

$5.79

7

HH collar screw M5x10 TX30

0025050106

$1.49

8

T-connector TS-6 03

60015022000

$5.98

9

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

10

HOSE CONNECTION STRAIGHT

69015019010

$5.23

11

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

12

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

14

EJOT PT SCREW K50X16 1451

0081050161

$1.49

2

VIBRATION DAMPER DIGITALBOX 03

60039030000

$3.08
