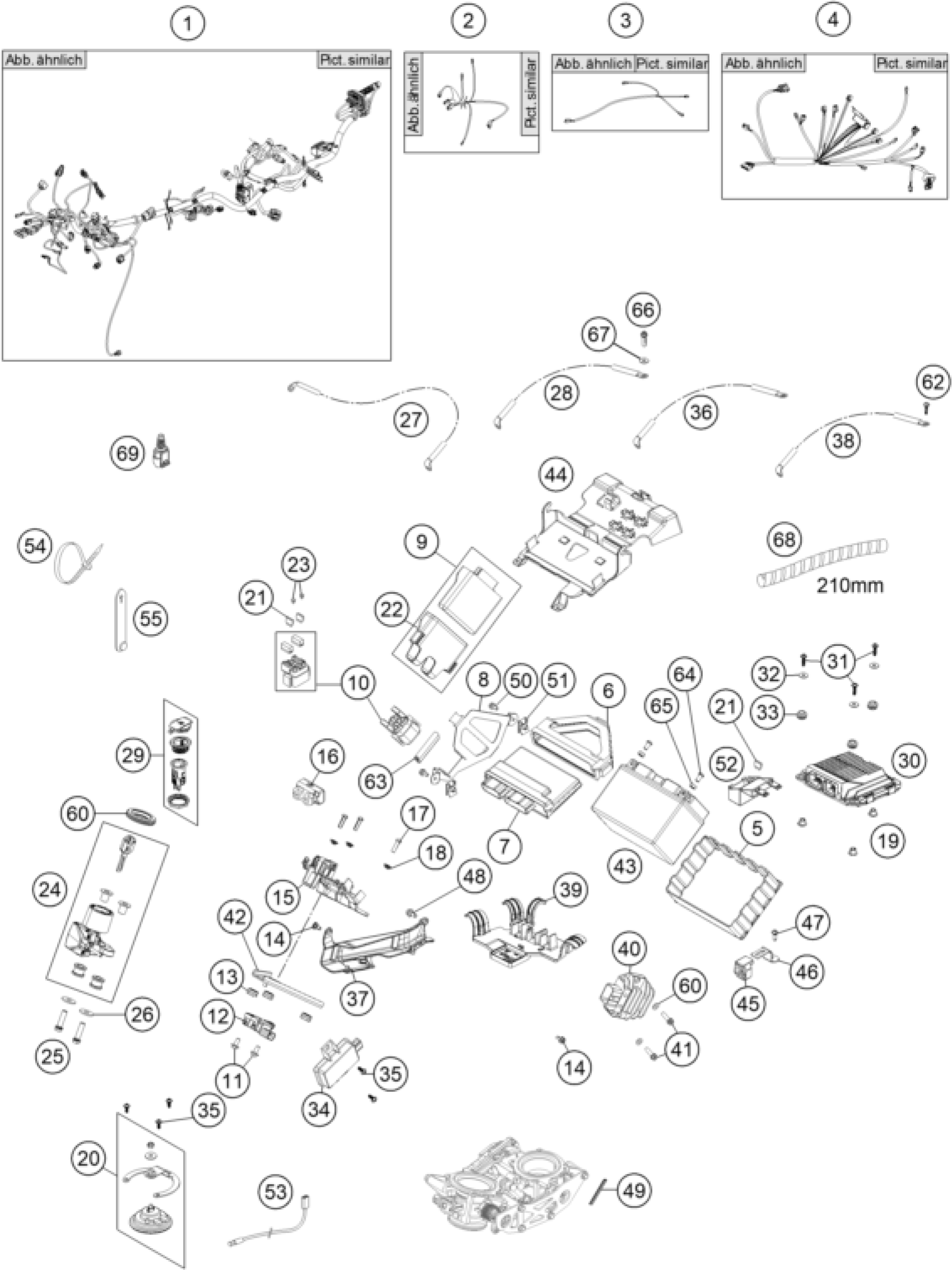

KTM 1190 ADVENTURE ABS GREY 2016 WIRING HARNESS Diagram

#

Description
Price

50

HH collar screw M5x12 TX30

0025050126

$3.08

52

RUBBERCOVER F.LOCKHOLDER

58411087050

$11.49

54

Cable tie 200/4.6mm black

44011076200

Unavailable

48

COLLAR SCREW M6X12 TX

0023060123

$2.05

49

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

51

RANGE CHANGE METAL NUT M5

54603048200

$5.23

53

Temperatur sensor

61111018100

$31.59

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

55

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

60

SHAFT SEAL RING17X10X3 NBR

0760171030

$3.08

61

PLASTIC WASHER 03

60007020040

$1.49

62

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

63

EDGE PROTECTOR 14X9,5X66 MM 06

60114010070

$3.08

64

OVAL HEAD SCREW ISK. ISO7380

0738060121

$1.49

65

Hex. nut DIN 934 M6

0934060003

$1.49

66

HH collar screw M6x16 TX30

0025060166

$3.08

67

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

68

SPIRAL HOSE D=9MM PER METER

58513001000

$21.59

46

BRACKET PRESSURE SENSOR

60311040100

$11.30

47

EJOT PT SCREW K50X16 1451

0081050161

$1.49

1

MAIN WIRING HARNESS CPL.

60311075333

$1,065.52

2

WIRING ENGINE

60311085100

$458.24

3

WIRING HARNESS HEAD LIGHT

60311079000

$49.83

4

REAR WIRING HARNESS

60311076000

$44.12

5

Battery Housing

60311053050

$13.74

6

ECU RUBBER BRACKET

60341031050

$17.76

7

Engine control unit

61341031000

$634.95

8

BRACKET ELECTRIC

60311057050

$41.97

9

CONTROL UNIT EDS

60316031100

$632.05

10

Starter reley 12V 99

58211058000

$72.64

11

HH collar screw M6x13 TX30

0024060136

$3.08

12

SLOPING POSITIONS SENSOR

60342090000

$466.28

13

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

14

special screw M5x12

69008021160

$4.11

15

SUPPORT BRACKET FRONT

60311048100

$5.23

16

ROLLOVER SENSOR 05

61041088000

$67.69

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

18

COLLAR BUSHING 6,5X8,8X12,5X10

60611046000

$5.70

19

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

20

HORN

60311060100

$39.82

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

21

Plug-in fuse, big 10A

58011109110

Unavailable

22

RUBBER EDS-CONTROL UNIT

60316029000

$33.18

23

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

24

IGNITION LOCK

60311066100

$589.14

25

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

26

WASHER DIN9021-A 8,4

0021080003

$1.49

27

STARTER CABLE

60311059000

$29.82

28

GROUND CABLE

60311098000

$22.81

29

POWER OUTLET 12V

60311042000

Unavailable

30

MOTORCYCLE CONTROL UNIT 2.1

60311033200

$838.03

31

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

32

washer DIN 9021 A - 5.3

0021050003

$1.49

33

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

34

RECEIVER AIR PRESSURE SENSOR

60312032000

$169.69

35

EJOT PT screw K50x12

0081050121

$2.05

36

GROUND CABLE

60311097000

$28.04

37

CABLE CHANNEL R/S

60311047000

$8.13

38

BATTERIE CABLE

60311059050

$20.75

39

SUPPORT BRACKET REAR

60311049100

$5.40

40

VOLTAGE REGULATOR

60311034000

$177.55

41

HH collar screw M6x20 TX30

0025060206

$3.08

42

BRACKET SLOPING POSITIONS SENS

60342090040

$36.18

43

BATTERY 12V/11AH 03

60011053000

$366.89

44

BATTERIE COVER

60308017000

$19.81

45

RUBBER SUPP. PRESSURE SENS. 05

61041085050

$4.11

69

Rubber Grommet EDS

60316175000

Unavailable
