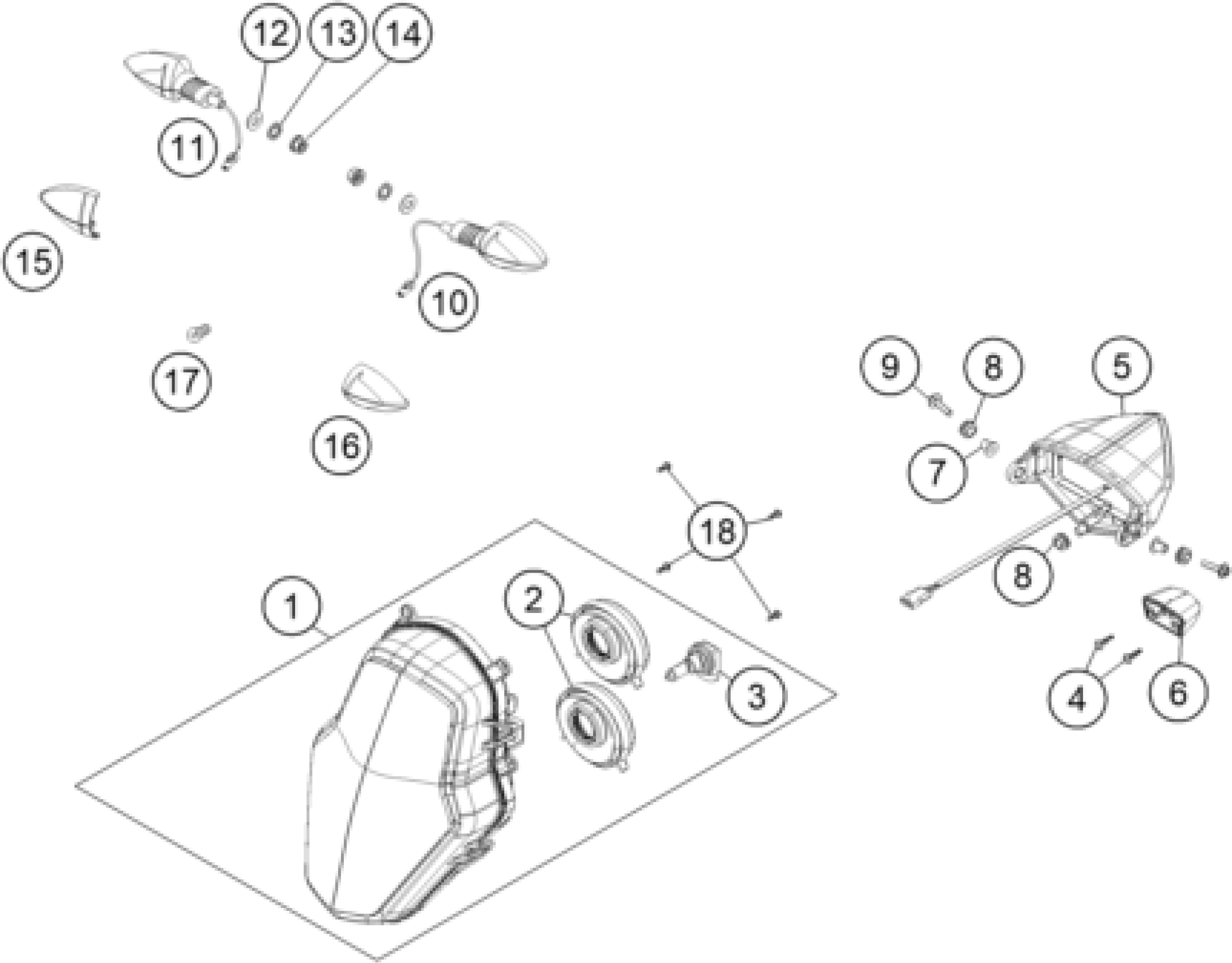

KTM 1190 ADVENTURE ABS GREY 2015 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT TFL

60314001100

$562.02

2

CAP H11

60314001050

$22.71

3

LAMP H11 12V 55W

60314003000

$26.45

4

EJOT PT screw K50x12

0081050121

$2.05

5

REAR LIGHT

60314040000

$117.24

6

license plate lighting

60314047000

$35.62

7

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

8

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

9

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

10

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

11

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

12

Washer DIN0433-M10

0433100003

$1.49

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

14

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

15

FLASHER LENS L/S R/S TRANSP.

78114028000

$8.50

16

FLASHER LENS FRO.L/S-REAR R/S

78114027000

$8.50

17

BULB 12V ORANGE (RY10W)

60114027000

$6.63

18

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49
