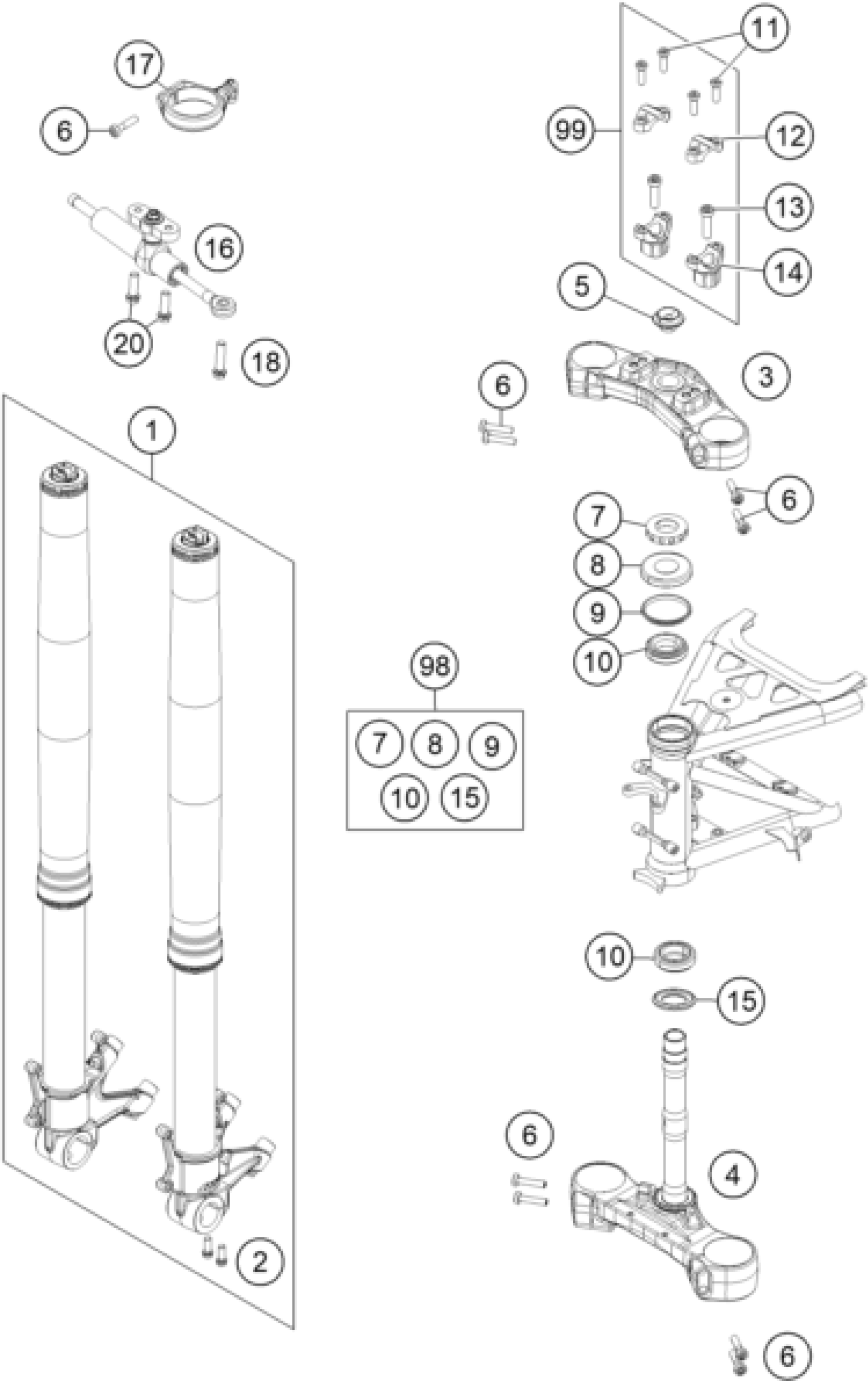

KTM 1190 ADVENTURE ABS GREY 2014 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

4

BOTTOM TRIPLE CLAMP CPL.

6030103203233S

Unavailable

5

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

Unavailable

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

1

FORK ADVENTURE EDS 2013

14189M2401

Unavailable

2

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

3

TOP TRIPLE CLAMP

6030103403233S

Unavailable

9

STEARING HEAD GASKET TOP

54601184000

Unavailable

10

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

15

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

16

STEERING DAMPER CPL.

16181N53ES

Unavailable

17

CLAMP STEERING DAMPER

6031200700033S

Unavailable

18

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

20

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

7

STEER.HEAD NUT

57301036100

Unavailable

8

STEERING HEAD COVER 05

61001086000

Unavailable

98

STEARING HEAD REP. KIT ADV 13

60301081010

Unavailable
