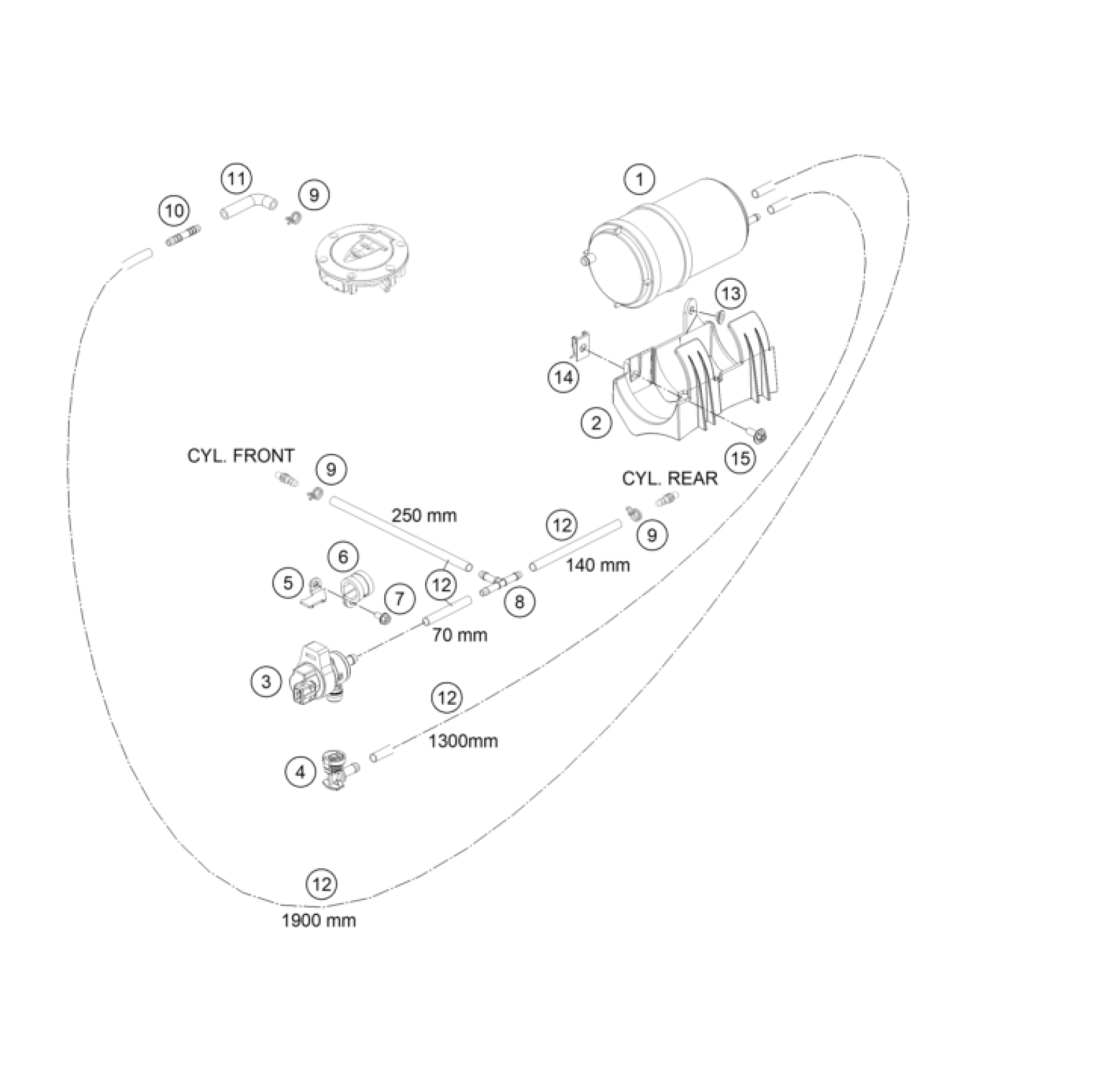

KTM 1190 ADVENTURE ABS GREY 2013 EVAPORATIVE CANISTER Diagram

#

Description

Price

3

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

4

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

2

BRACKET EVAP CANISTER

60315001010

$14.37

5

RETAINING PLATE VALVE EC

76515032000

$11.68

6

CLAMP RSGU 18/15 03

59007439000

$5.79

7

HH collar screw M5x10 TX30

0025050106

$1.49

8

T-connector TS-6 03

60015022000

$5.98

9

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

10

HOSE CONNECTION STRAIGHT

69015019010

$5.23

11

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

12

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

$80.96

13

Chain slider bushing

69004060050

$4.11

14

clip nut M6

54603048100

$4.11

15

HH collar screw M6x15 TX30

0024060156

$3.08
