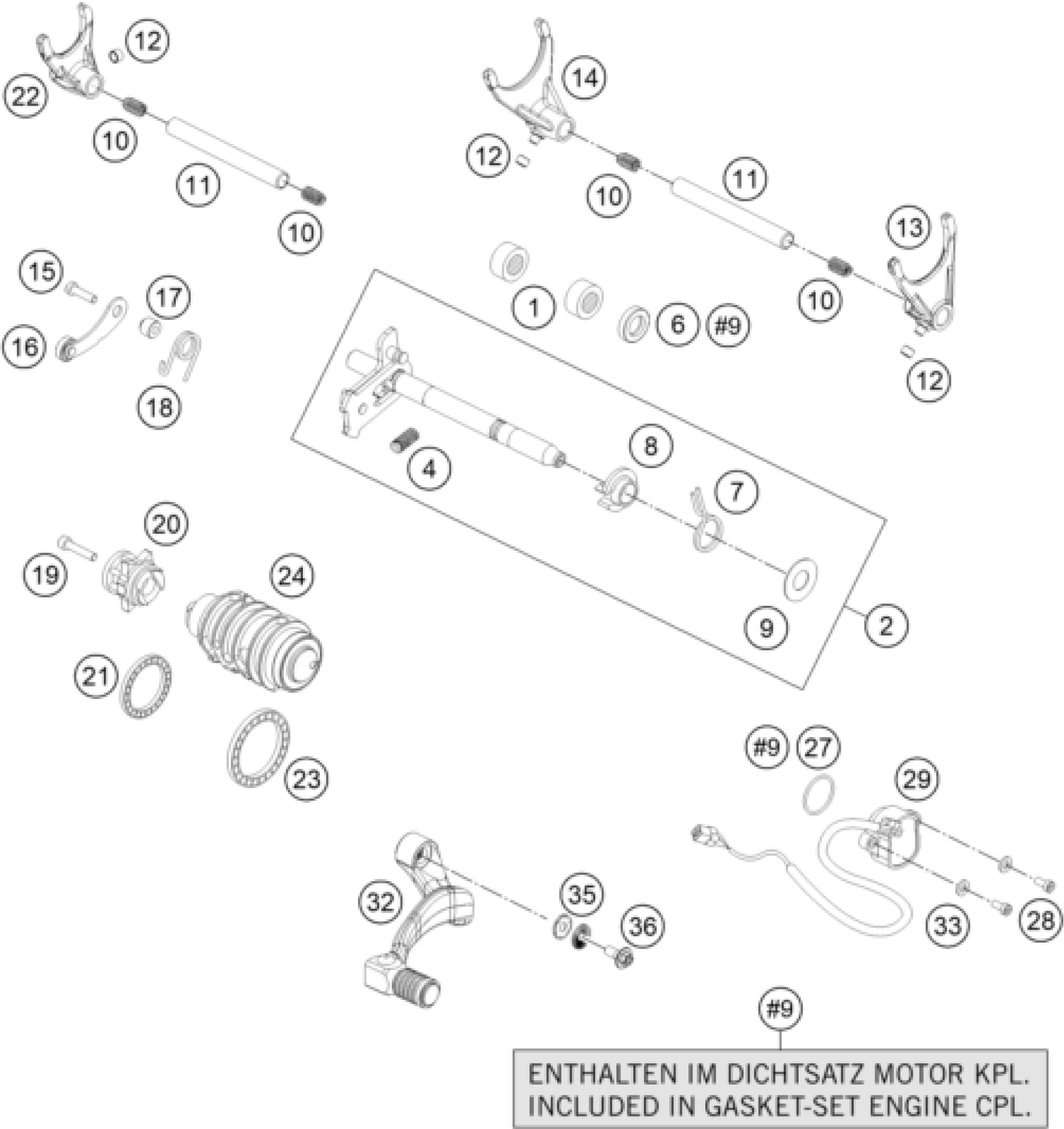

KTM 1190 ADV. ABS ORANGE WES. 2016 SHIFTING MECHANISM Diagram

#

Description
Price

1

needle sleeve HK 1412 14x20x12

54632095000

$7.00

2

SHIFT SHAFT CPL.

61234005333

$63.35

4

TENSIONING SPRING 0,8MM

56534013100

$1.49

6

radial shaft seal 14x24x6 B

0760142460

$9.25

7

RETURNSPRING 2MM

61234014000

$6.44

8

SPRING GUIDE

54634020000

$6.44

9

STOP DISK 14X30X1

54634050000

$2.05

10

PRESSURE SPRING 0,9MM

58038023200

$4.11

11

SHIFT RAIL 11,8X105MM

59034020000

$13.36

12

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

13

SHIFT FORK 2-3 GEAR

61234002100

$51.60

14

SHIFTING FORK 08

61234001000

$48.89

15

HH collar screw M6x20 TX30

0024060206

$3.08

16

LOCKING LEVER CPL. 07

75034024044

$19.16

17

SLEEVE FOR LOCKING LEVER 07

75034052000

$4.11

18

SPRING - LOCKING LEVER

61234023000

$6.07

19

AH SCREW DIN0912-M 6X30 12.9

0912060309

$1.49

20

SHIFT DRUM LOCATING CPL.

61234015444

$25.42

21

BALL BEARING 61805 C3

0625618050

$43.94

22

SHIFT FORK 5-6 GEAR

61234003200

$52.73

23

GROOVED BALL BEARING 6808 JRC3

0625068080

$32.16

24

SHIFTING DRUM CPL.

60334012100

$85.31

27

o-ring 24.00x2.50 Viton

07700240251

$3.08

28

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

$2.05

29

GEAR-POSITION SENSOR

60211023100

$165.21

32

SHIFTING LEVER CPL.

6003403104433S

$143.14

33

WASHER DIN0125-A 5,3

0125050003

$1.49

35

PAIR NORDLOCK WASHER M6

50233041500

$4.11

36

HH collar screw M6x15 TX30

0024060156S

$2.05
