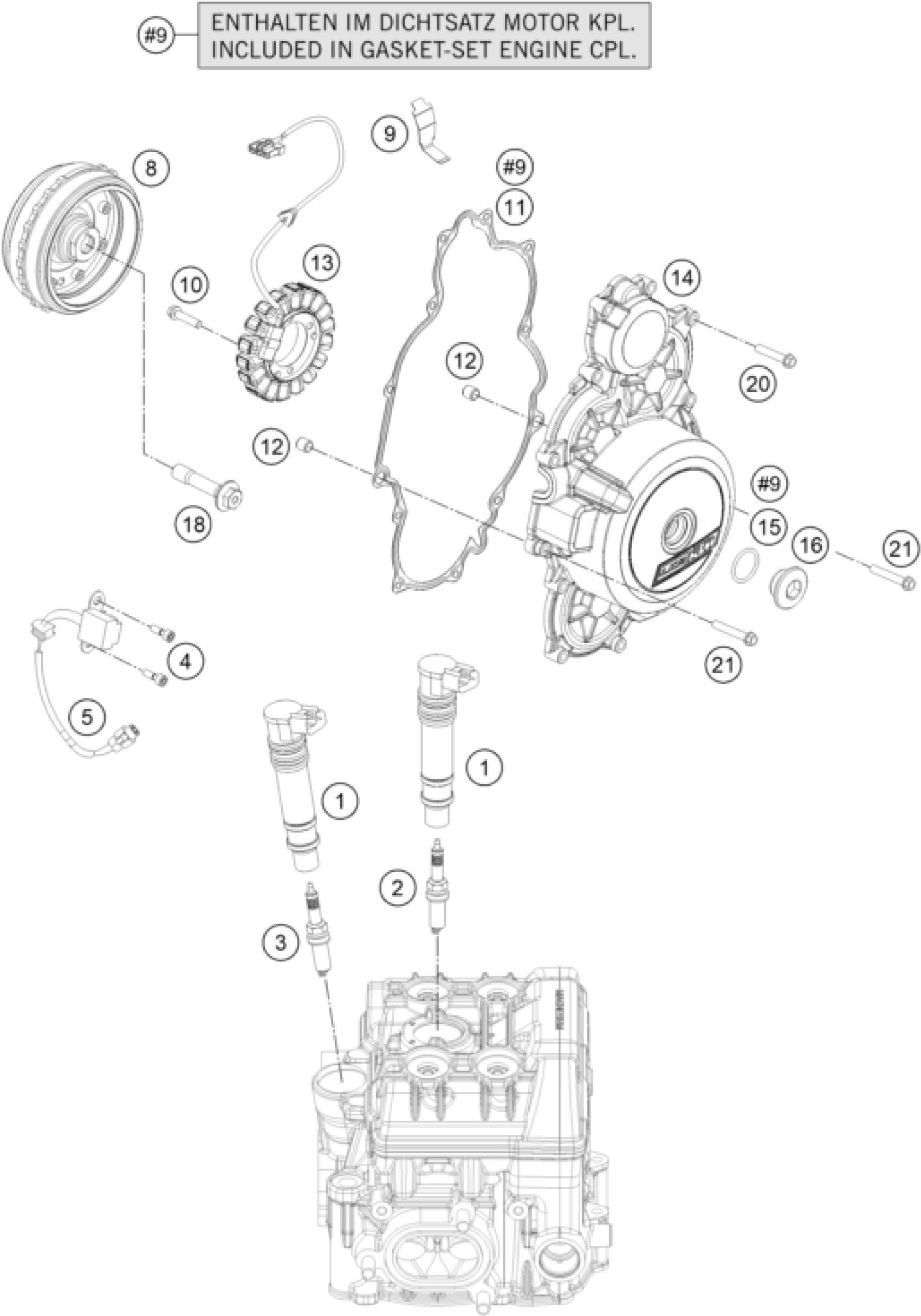

KTM 1190 ADV. ABS ORANGE WES. 2016 IGNITION SYSTEM Diagram

#

Description
Price

10

HH collar screw M6x25 TX30

0025060256

Unavailable

11

GASKET GENERATORCOVER

61230040100

Unavailable

12

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

13

STATOR

60339004000

Unavailable

14

IGNITION COVER WITH BEARINGS

6023010214441

Unavailable

15

o-ring 24.00x2.50 Viton

07700240251

Unavailable

16

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

18

special screw M12x1.5 WS15

60339003000

Unavailable

20

HH collar screw M6x30 TX30

0025060306

Unavailable

21

HH collar screw M6x35 TX30

0025060356

Unavailable

1

STICK COIL 03

60039006000

Unavailable

2

SPARK PLUG M12X1,25 08

61239093200

Unavailable

4

SPECIAL SCREW M5X16

60339035000

Unavailable

5

pulse generator KOKUSAN 4K3-A/

59039034000

Unavailable

3

SPARK PLUG NGK ''LMAR7A-9''

69139093000

Unavailable

8

ROTOR

60239105000

Unavailable

9

generator line bracket

60039040020

Unavailable
