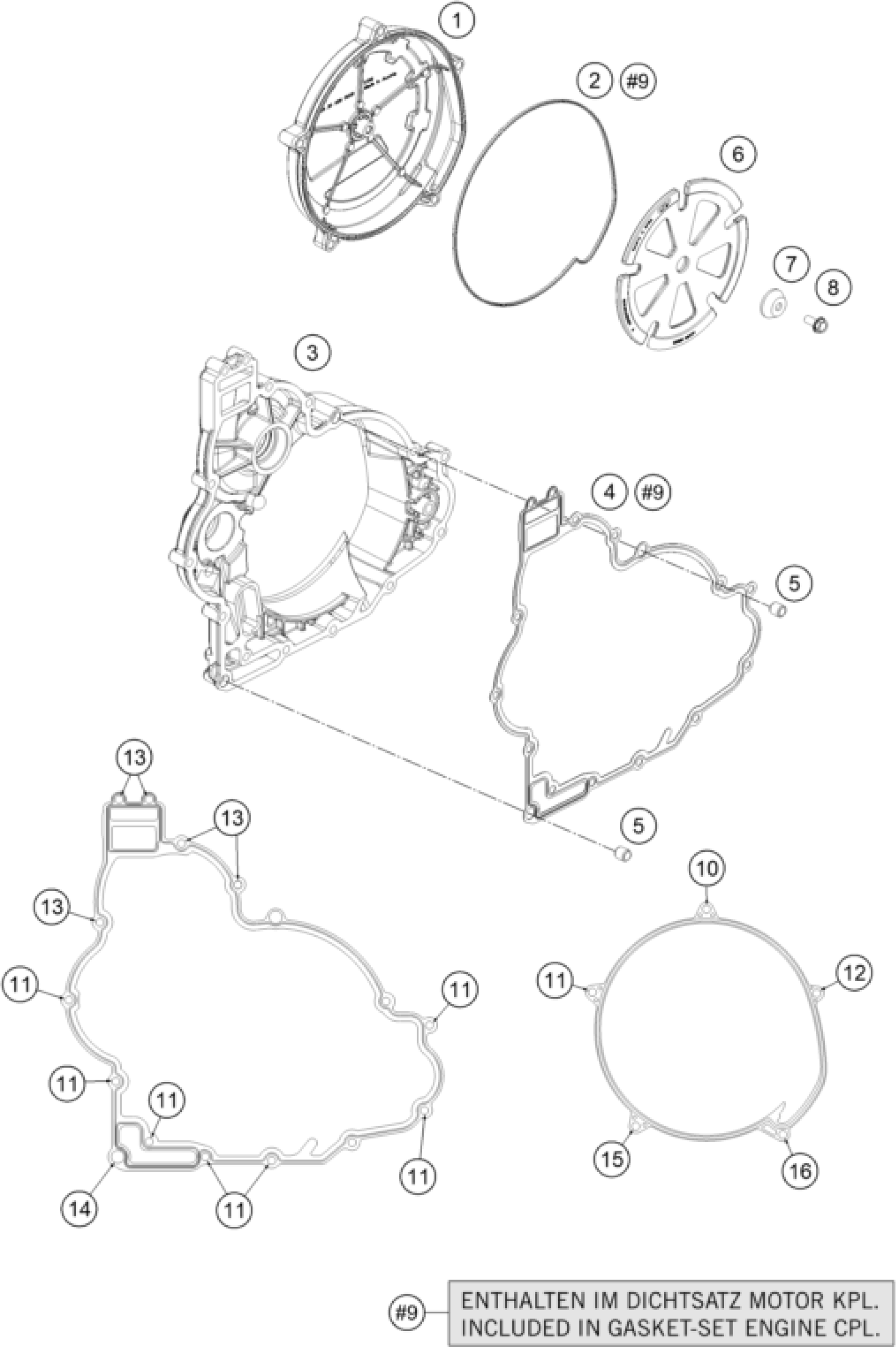

KTM 1190 ADV. ABS ORANGE WES. 2016 CLUTCH COVER Diagram

#

Description
Price

1

OUTER CLUTCH COVER

6033002600041

$51.42

2

MOLDED RING OUTER CLUTCH COVER

61230027000

$5.98

12

HH COLLAR SCREW M6X90 TX30

0025060906

$3.08

14

HH collar screw M6x35 TX30

0025060356

$3.08

15

HH collar screw M6x25 TX30

0025060256

$3.08

16

HH COLLAR SCREW M6X85 TX30

0025060856

$3.08

3

CLUTCH COVER WITH BEARINGS

6033000114441

$300.22

4

CLUTCH COVER GASKET

61230025100

$36.83

5

DOWEL 9,8 X 7 X 10

49030090000

$2.05

6

DAMPING SHEET CPL.

60330026050

$19.53

8

EJOT ALTRACS SCR. WN5147,60X14

60030126080

$1.49

10

HH COLLAR SCREW M6X95 TX30

0025060956

$3.08

11

HH collar screw M6x30 TX30

0025060306

$3.08

7

BUSHING

60330026053

$5.41

13

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05
