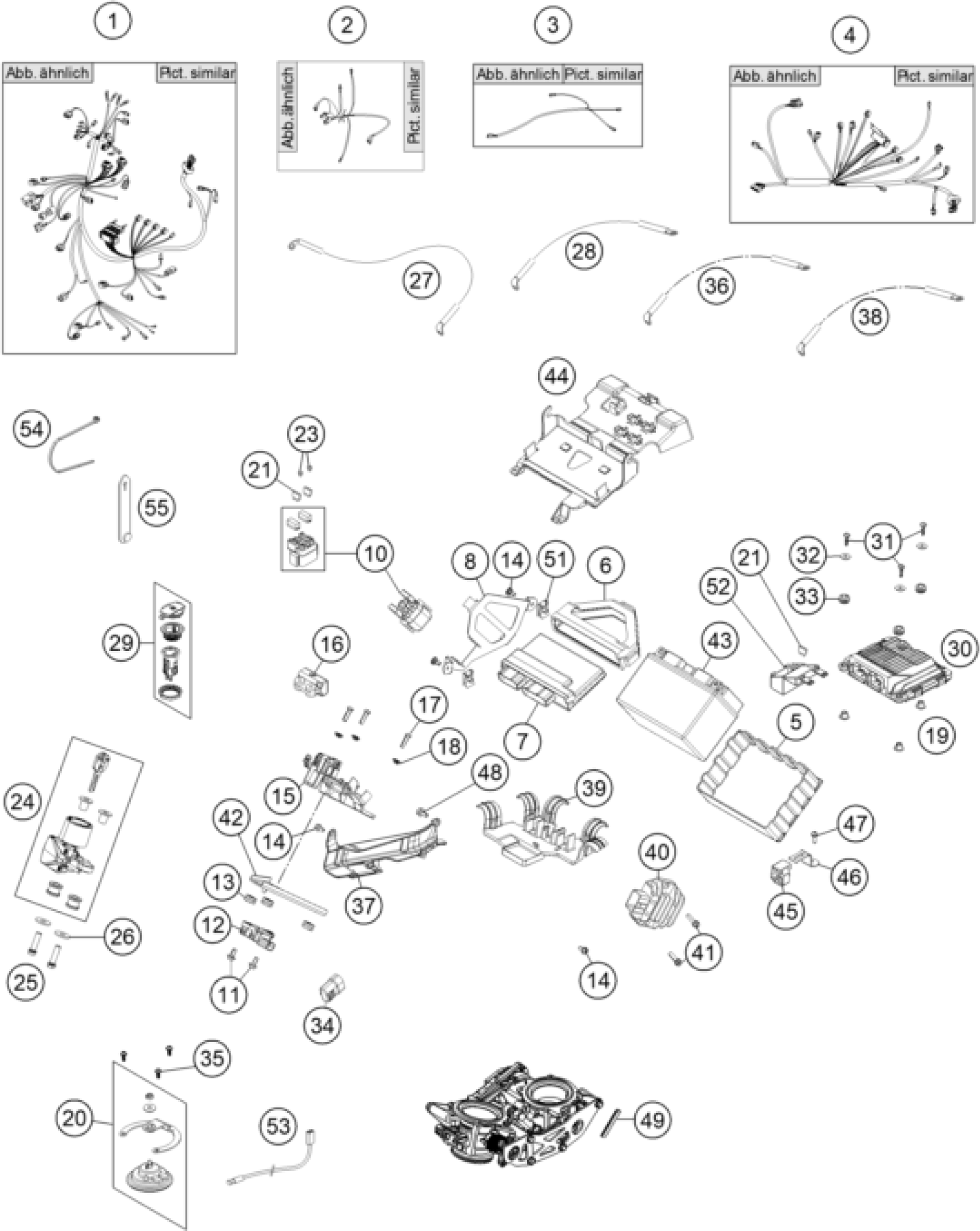

KTM 1190 ADV. ABS GREY WES. 2015 WIRING HARNESS Diagram

#

Description
Price

38

BATTERIE CABLE

60311059050

$20.75

39

SUPPORT BRACKET REAR

60311049000

$16.46

40

VOLTAGE REGULATOR

60311034000

$177.55

41

HH collar screw M6x20 TX30

0025060206

$3.08

42

BRACKET SLOPING POSITIONS SENS

60342090040

$36.18

43

BATTERY 12V/11AH 03

60011053000

$366.89

44

BATTERIE COVER

60308017000

$19.81

45

RUBBER SUPP. PRESSURE SENS. 05

61041085050

$4.11

46

BRACKET PRESSURE SENSOR

60311040100

$11.30

1

MAIN WIRING HARNESS

60311175000

$1,046.44

2

WIRING ENGINE

60311085000

$458.24

3

WIRING HARNESS HEAD LIGHT

60311079000

$49.83

4

REAR WIRING HARNESS

60311076000

$44.12

5

Battery Housing

60311053050

$13.74

6

ECU RUBBER BRACKET

60341031050

$17.76

7

Engine control unit

61341031000

$634.95

8

BRACKET ELECTRIC

60311057050

$41.97

10

Starter reley 12V 99

58211058000

$72.64

11

HH collar screw M6x13 TX30

0024060136

$3.08

12

SLOPING POSITIONS SENSOR

60342090000

$466.28

13

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

14

special screw M5x12

69008021160

$4.11

15

SUPPORT BRACKET FRONT

60311048100

$5.23

16

ROLLOVER SENSOR 05

61041088000

$67.69

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

18

COLLAR BUSHING 6,5X8,8X12,5X10

60611046000

$5.70

19

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

20

HORN

60311060100

$39.82

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

21

Plug-in fuse, big 10A

58011109110

Unavailable

23

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

24

IGNITION LOCK

60311066000

$589.14

25

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

26

WASHER DIN9021-A 8,4

0021080003

$1.49

27

STARTER CABLE

60311059000

$29.82

28

GROUND CABLE

60311098000

$22.81

29

POWER OUTLET 12V

60311042000

Unavailable

30

MOTORCYCLE CONTROL UNIT 2.1

60311033200

$838.03

31

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

32

washer DIN 9021 A - 5.3

0021050003

$1.49

33

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

34

CAP FOR CONNECTOR 000700000HJ

000700000HJ01

$4.11

35

EJOT PT screw K50x12

0081050121

$2.05

36

GROUND CABLE

60311097000

$28.04

37

CABLE CHANNEL R/S

60311047000

$8.13

48

COLLAR SCREW M6X12 TX

0023060123

$2.05

49

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

50

special screw M5x12

69008021160

$4.11

51

RANGE CHANGE METAL NUT M5

54603048200

$5.23

52

RUBBERCOVER F.LOCKHOLDER

58411087050

$11.49

53

TEMPERATURE SENSOR 07

61111018000

$31.59

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

Cable tie 200/4.6mm black

44011076200

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

47

EJOT PT SCREW K50X16 1451

0081050161

$1.49
