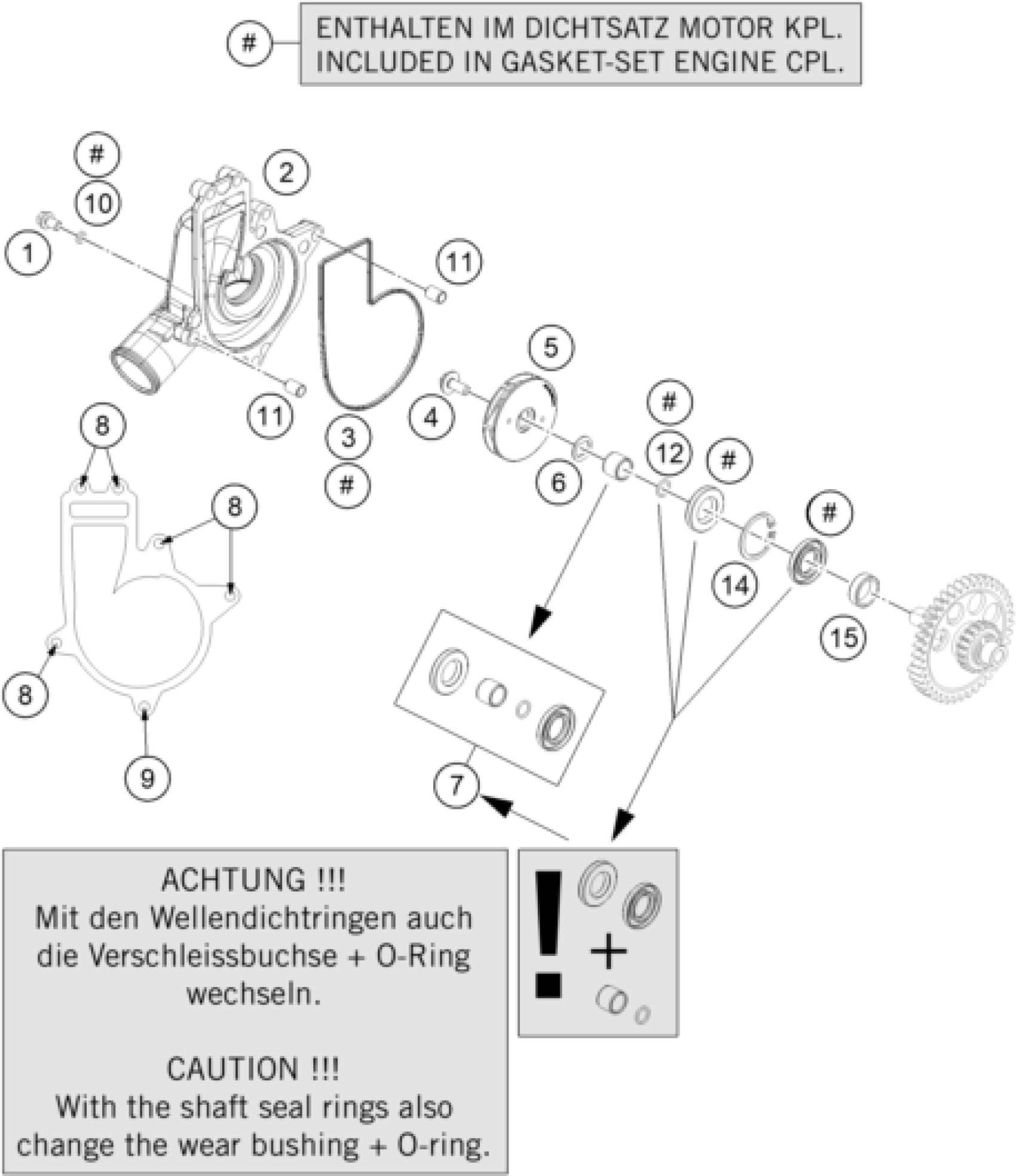

KTM 1190 ADV. ABS GREY WES. 2015 WATER PUMP Diagram

#

Description
Price

14

CIRCLIP DIN0472-30X1,2 NIRO

04720300121

Unavailable

1

HH collar screw M6x10 TX30

0025060106

Unavailable

2

WATER PUMP COVER CPL.

6033505200041

Unavailable

3

MOLDED RING WATER PUMP COV. 08

61235061000

Unavailable

4

HH collar screw M6x13 TX30

0024060136

Unavailable

5

WATER PUMP WHEEL CPL.

60335055100

Unavailable

6

double-d washer 16x1 SST

60035055150

Unavailable

7

WEAR BUSHING WITH SEAL RING

61235065244

Unavailable

8

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

11

dowel sleeve 6x8x11.5

59030023000

Unavailable

12

O-RING 9x1,5 V80 SH

07700900151

Unavailable

15

CYL.ROLLER BEAR. NJ202 ECP C3

0412153511

Unavailable
