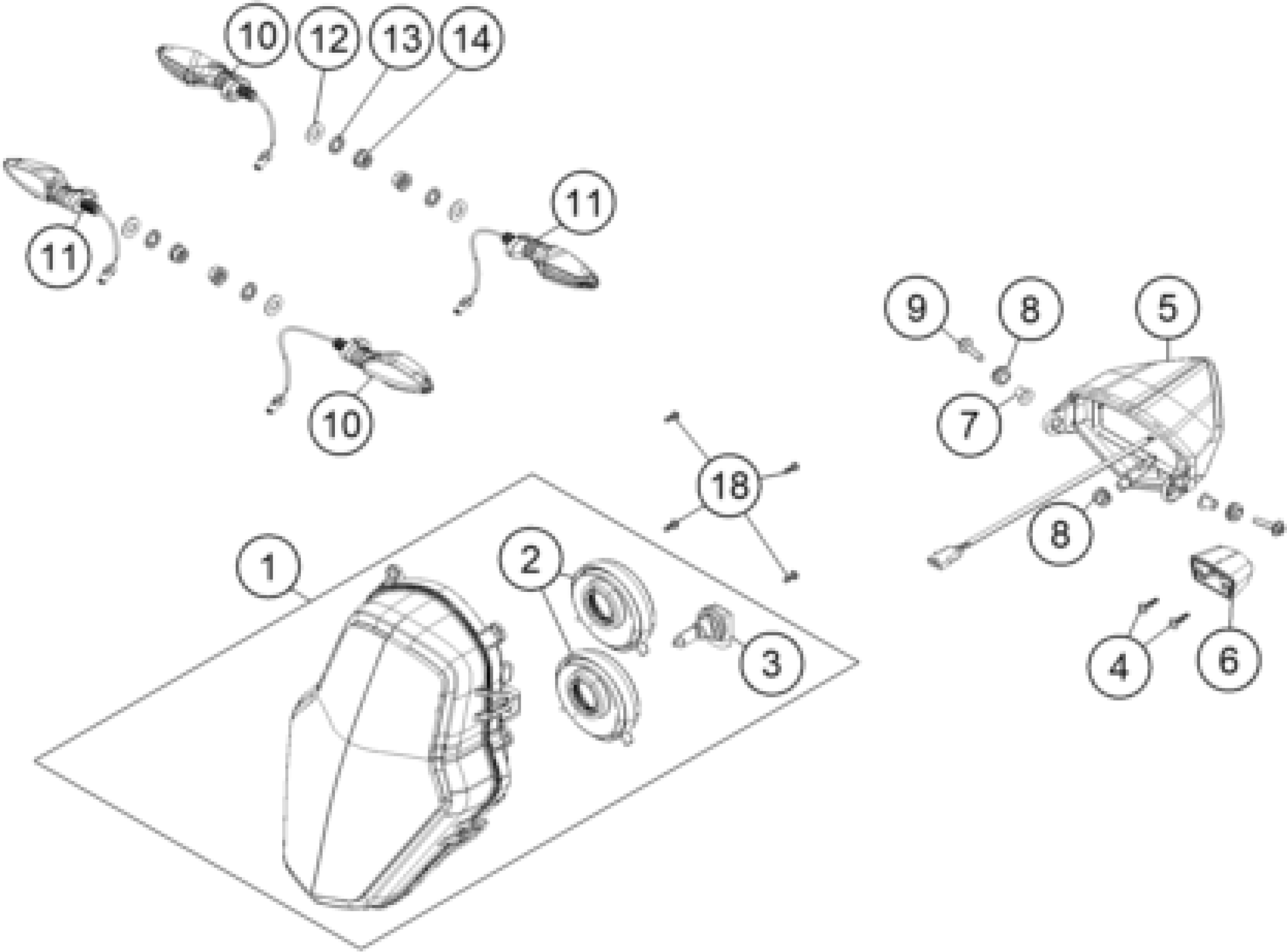

KTM 1190 ADV. ABS GREY WES. 2015 LIGHTING SYSTEM Diagram

HEAD LIGHT TFL

60314001100

$562.02

CAP H11

60314001050

$22.71

LAMP H11 12V 55W

60314003000

$26.45

EJOT PT screw K50x12

0081050121

$2.05

REAR LIGHT

60314040000

$117.24

license plate lighting

60314047000

$35.62

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

FLASHER CPL. FR.LS/REAR R/S

76014025000

Unavailable

FLASHER CPL. FR.RS/REAR L/S

76014026000

Unavailable

Washer DIN0433-M10

0433100003

$1.49

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49
