Partiron

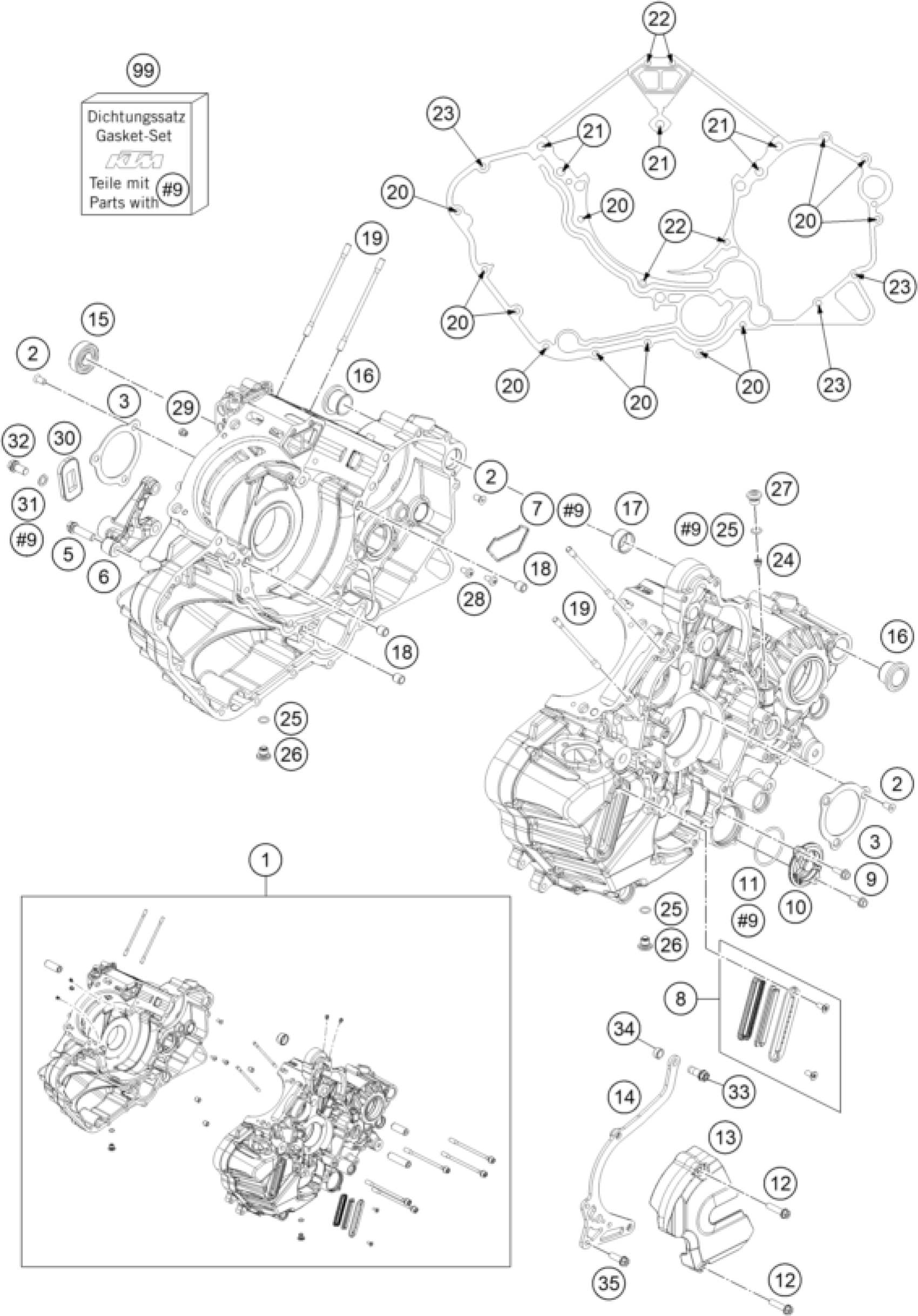

KTM 1190 ADV. ABS GREY WES. 2015 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. W. BEARINGS

6033000004424

Unavailable

2

hex lobe countersunc screw M5x

0019050106S

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

ENGINE BRACKET R/S BLACK

6033006600033S

Unavailable

7

MOLDED RING CASE CENTER

61230039100

Unavailable

8

OIL SIGHT GLASS CPL.

62638084044

Unavailable

9

HH collar screw M5x16 TX30

0025050166

Unavailable

10

oil filter cover

75038041200

Unavailable

11

O-RING 39,34X2,62

07700390261

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

PINION COVER CPL.

69030060144

Unavailable

14

CHAIN FAIL. PROTECTION CPL.

60330047144

Unavailable

15

CYL.ROLLER BEAR. NJ202 ECP C3

0412153511

Unavailable

16

SWING BEARING OUTSIDE LC8 03

60030010000

Unavailable

17

DOWEL 20,1X24X12 03

60030023000

Unavailable

18

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

19

STUD M6X110 08

61230044000

Unavailable

20

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

21

CASE SCREW M8X125 AS 08

61230043000

Unavailable

22

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

23

HH collar screw M6x60 TX30

0025060606

Unavailable

24

REDUCING JET ''30'' M6X0,75

60038029200

Unavailable

25

O-RING 9x1,5 V80 SH

07700900151

Unavailable

26

SCREW PLUG

77336056095

Unavailable

27

SCREW PLUG

77236080000

Unavailable

28

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

29

MAIN JET 100 DELLORTO

57031523100

Unavailable

30

SAS Reed Valve

60005026000

Unavailable

31

SEAL RING 8X14X1 AI

45038017000

Unavailable

32

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

33

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

34

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

99

GASKET KIT ENGINE KPL. RC8-R

69130099000

Unavailable

3

BRACKET FOR BEARING INSERT 08

61230084000

Unavailable

35

HH collar screw M6x16 TX30

0025060166

Unavailable
