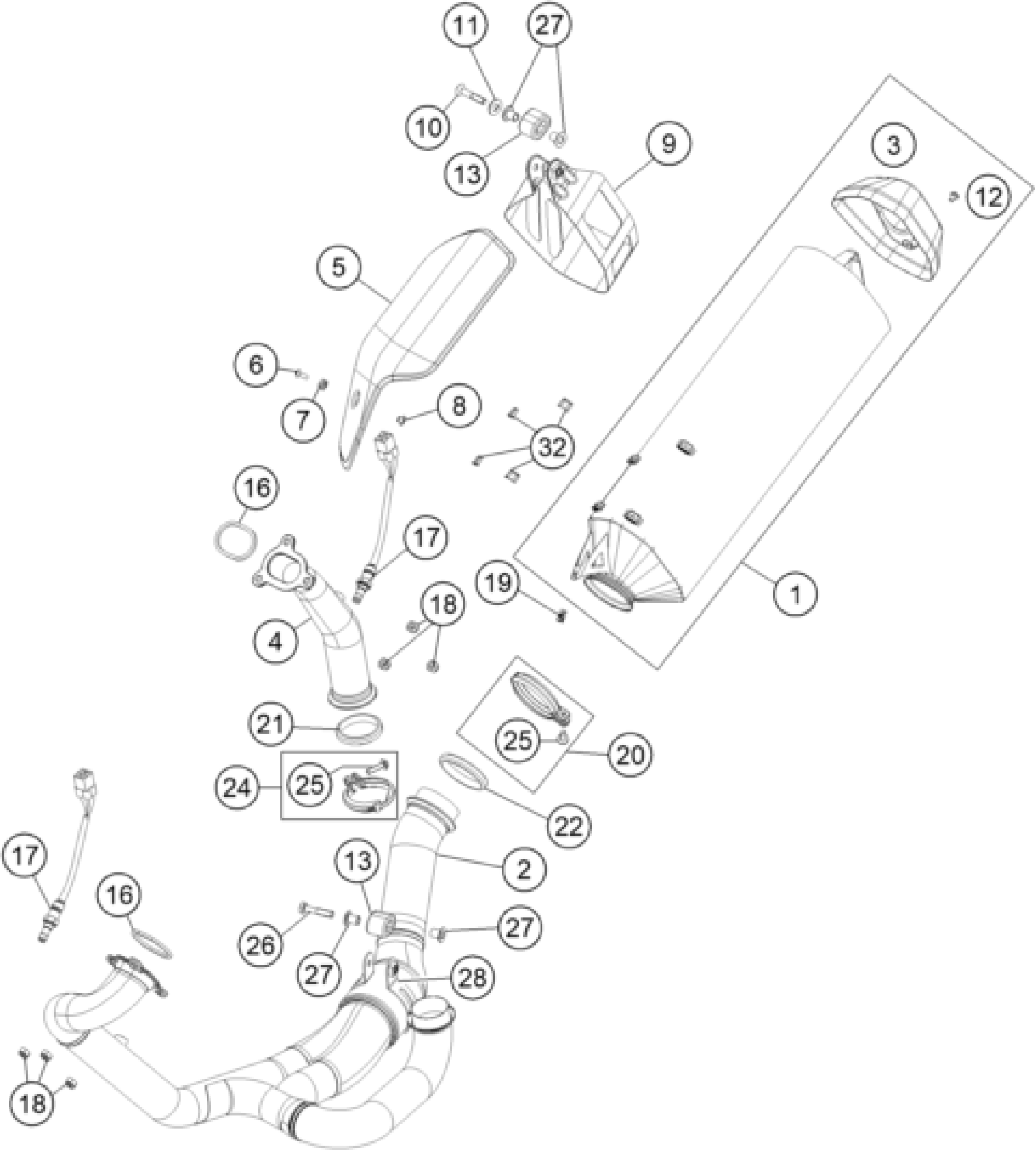

KTM 1190 ADV. ABS GREY WES. 2014 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER

60305083000

$1,240.74

2

MANIFOLD FRONT CPL.

60305007000

$1,927.49

3

ENDCAP

60305083161

$124.07

4

MANIFOLD REAR CPL.

60305008000

$448.98

5

EXHAUST GUARD

60305111000

$108.64

6

Oval head screw M5x14 TX25

58605083014

$3.08

7

SILICON SLEEVE

60305083081

$3.08

8

SPACER BUSHING

60305083082

$2.05

9

CLAMP SILENCER

60305083190

$70.86

10

countersunk screw M8x45 TX45

0019080456

$4.11

11

WASHER 8MM GALVANIZED

54633037000

$6.07

12

SCREW TORX M5X10

78105081010

$2.05

13

DAMPING RUBBER

61305068000

$15.51

16

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

17

LAMBDA SENSOR 07

75041090000

$171.19

18

self-locking nut M8 Cu

51010086100

$3.08

19

clip nut M5

69008021080

$3.08

20

EXHAUST CLAMP CPL. 60MM

61305090000

$26.08

21

MANIFOLD GASKET

69005005005

$16.82

22

MANIFOLD GASKET 60MM

61305005005

$11.02

24

CLAMP CPL.

69005050000

$24.58

25

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

26

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

27

BUSHING

60305069000

$2.05

32

DAMP. COMPON. SILICONE GREY 05

61005091000

$8.31

28

SHELL EXHAUST PIPE CPL.

60305007015

$33.74
