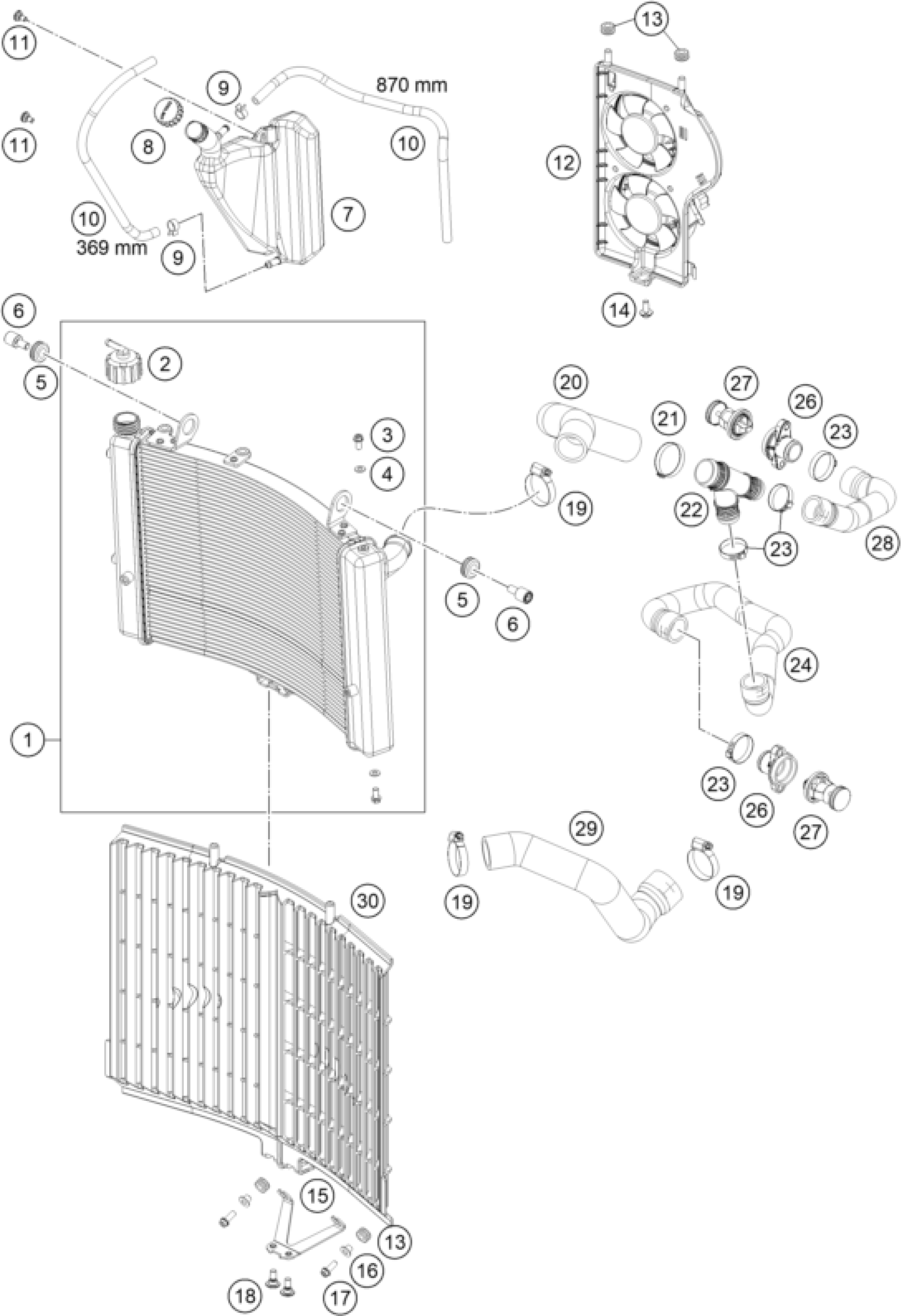

KTM 1190 ADV. ABS GREY WES. 2014 COOLING SYSTEM Diagram

#

Description
Price

1

WATER COOLER

60335010000

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

HH collar screw M6x12 TX30

0025060126

Unavailable

4

ALU-GASKET 6X10X1.5

60035048000

Unavailable

5

RUBBER SLEEVE D=12MM

41001052000

Unavailable

6

STUD BOLT M6 11X11 ISA45

69035001000

Unavailable

7

expansion tank

60335065001

Unavailable

8

PLUG F. EXPANSION TANK

60035066000

Unavailable

9

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

special screw M5x12

69008021160

Unavailable

12

FAN COVER CPL.

60335044033

Unavailable

13

rubber grommet D=8mm open

31008060000

Unavailable

14

HH collar screw M6x15 TX30

0024060156

Unavailable

15

MOUNTING PLATE COOLER BOTTOM

60335005000

Unavailable

16

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable

17

HH collar screw M6x16 TX30

0025060166

Unavailable

18

HH collar screw M5x10 TX30

0025050106

Unavailable

19

HOSE CLAMP 30-45 SGT

54305058000

Unavailable

20

PREFORMED HOSE

60335026000

Unavailable

21

VARIABLE ONE-EAR CLAMP 39,6MM

00050396706

Unavailable

22

Y-JOINT

60335093000

Unavailable

23

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

24

PREFORMED HOSE

60335025000

Unavailable

26

WATER CONNECTION CPL.

61235019100

Unavailable

27

THERMOSTAT 70 DEGREE

61235017000

Unavailable

28

PREFORMED HOSE

60335024000

Unavailable

29

PREFORMED HOSE

60335027000

Unavailable

30

RADIATOR PROTECTOR

60335040000

Unavailable

18

Screw for expansion tank

69013099050

Unavailable
