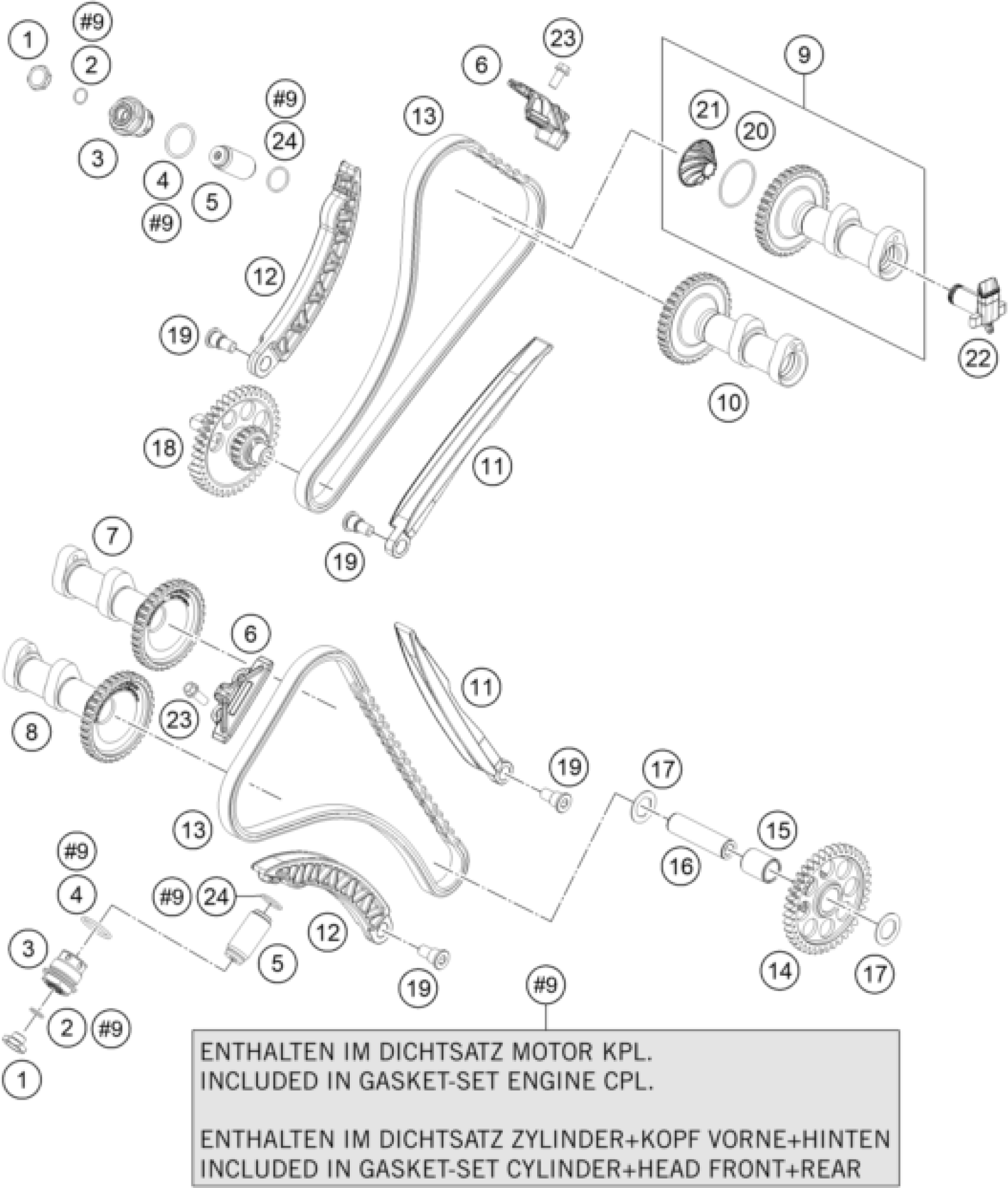

KTM 1190 ADV. ABS GREY WES. 2013 TIMING DRIVE Diagram

#

Description
Price

1

HOLDING BOLT

77336008010

$8.31

2

o-ring 10.00x1.00 NBR70

0770010010

$2.05

3

chain tension adjuster plug cp

61236008200

$30.38

4

o-ring 22.00X2.00 NBR70

0770220020

$2.05

5

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

6

GUIDE RAIL TOP 08

61236005000

$17.48

7

CAMSHAFT INTAKE - FRONT

60336009000

$147.72

8

CAMSHAFT EXHAUST - FRONT

60336010000

$147.72

9

CAMSHAFT INRE CPL.

60336109044

$157.91

10

CAMSHAFT EXHAUST - REAR

60336110000

$134.35

11

GUIDE RAIL 08

61236001000

$7.00

12

TENSIONER RAIL 08

61236002000

$5.79

13

TIMING CHAIN 08

61236013000

$41.69

14

TIMING DRIVE IDLER GEAR L/S

61230057100

$106.39

15

NEEDLE BEARING K 15X19X24ZW

0405151924

$17.76

16

BEARING BOLT 15X57,5 08

61230057050

$15.98

17

STOP DISK 15,2X25X1

61230057060

$4.11

18

IDLER GEAR R/S

60330157000

$166.89

19

hex socket head shoulder screw

61236002050

$5.23

20

O-RING 34X1,5 VITON

0770034015

$3.08

21

CENTRIFUGE CONE

61236080100

$5.88

22

ANGLE PIECE F. BREATHER SYSTEM

61236081000

$6.07

23

HH collar screw M6x20 TX30

0025060206

$3.08

24

o-ring 18.00x2.00 NBR70

0770180020

$2.05
