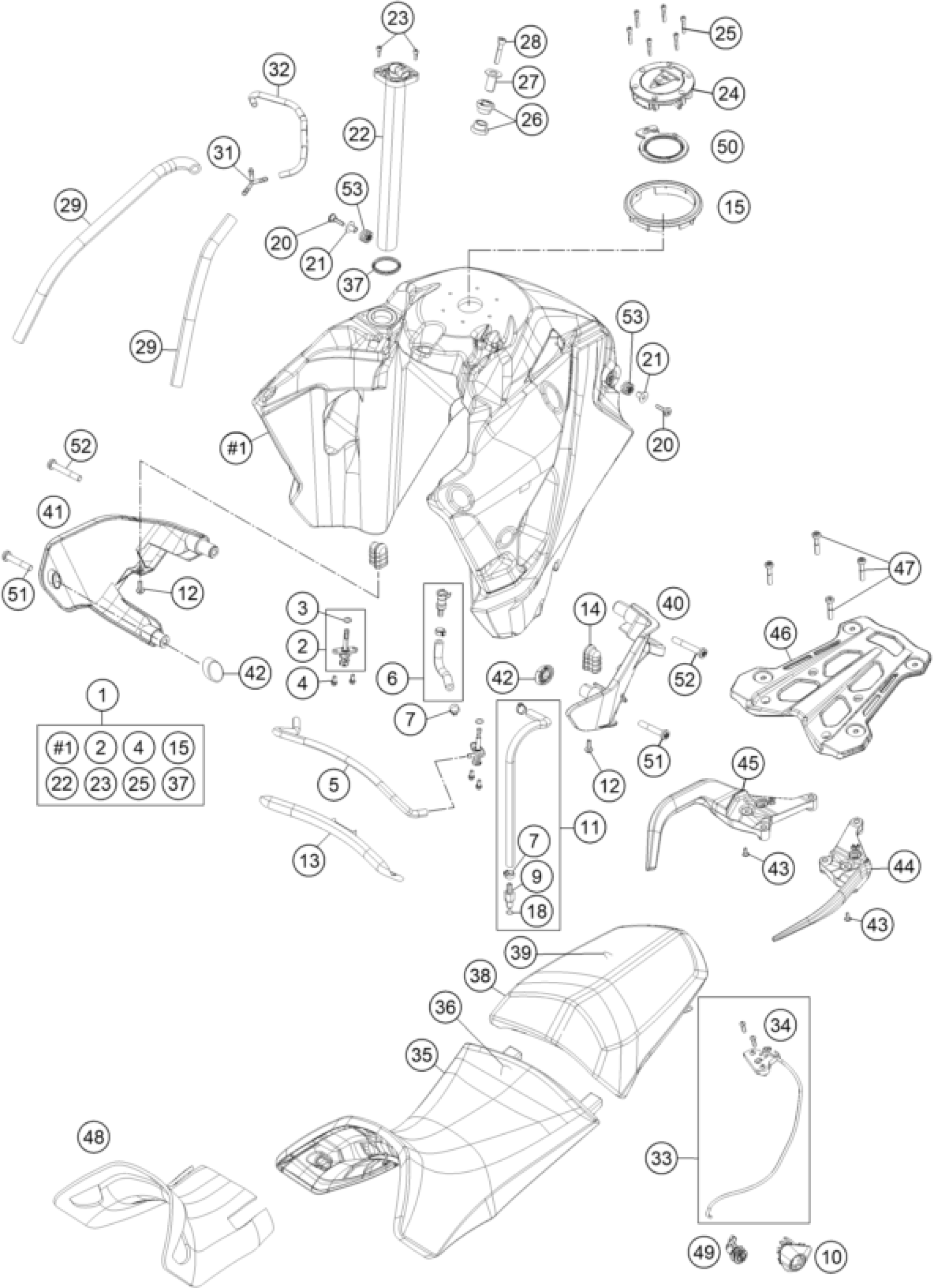

KTM 1190 ADV. ABS GREY WES. 2013 TANK, SEAT Diagram

#

Description
Price

47

AH-COLLAR SCREW M8X40 ISA45

0035080406

Unavailable

15

TANK CAP RING

60307009000

Unavailable

51

AH-COLLAR SCREW M10X60 ISA45

0035100609S

Unavailable

52

AH-COLLAR SCREW M10X70 ISA45

0035100709S

Unavailable

50

GASKET TANK CAP

60307008190

Unavailable

43

Screw for expansion tank

69013099050

Unavailable

44

HAND GRIP L/S

6031200800030

Unavailable

45

HAND GRIP R/S

6031200900030

Unavailable

46

BAGGAGE CARRIER BRIDGE

6031201000033S

Unavailable

40

TANK PROTECTOR L/S

60307027000B1A

Unavailable

53

rubber grommet, tank mounting

69007027000

Unavailable

18

O-ring VITON f. plug CPC 0

58507012000

Unavailable

1

FUELTANK VMT

6030701304433A

Unavailable

2

Fuel cock cmpl.

58507003200

Unavailable

3

O-RING 1,78x10,82x14,38 2-013

0770020130

Unavailable

4

HH collar screw M6x12 TX30

0025060126

Unavailable

5

FUEL HOSE 6,4X3,2 L=510MM

60007416510

Unavailable

6

FUEL HOSE TANK/CONNECTOR

60307017000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

9

Plug CPC black 05

5850701030030

Unavailable

10

SEAT LOCK COVER

60307053000

Unavailable

11

FUEL HOSE 1 CPL.

60307016000

Unavailable

12

HH collar screw M6x20 TX30

0024060206

Unavailable

14

TANK RUBBER

60307020000

Unavailable

20

SPECIAL SCREW M6X32.5 ISA 40

60307025000

Unavailable

21

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

Unavailable

22

GAS LEVEL SENSOR

60307080000

Unavailable

23

AH collar screw DIN 912 M5x16

0912050163

Unavailable

24

TANK CAP

60307008000

Unavailable

49

LOCK CYLINDER SEAT LOCK

60307050020

Unavailable

48

HEAT PROTECTOR

60307040080

Unavailable

25

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

26

collar bushing, front tank hol

61007065000

Unavailable

27

collar bushing, bearing, outsi

61007060000

Unavailable

28

AH collar screw DIN0912 M8x40

0912080403

Unavailable

29

HOSE 5,4X9,4 NBR, METER

60007126001

Unavailable

31

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

32

HOSE TANK BREAT.

60307008150

Unavailable

33

SEAT LOCK CPL.

60307050000

Unavailable

34

FLAT HEAD SCREW ISO7380 M6X20

0738060201

Unavailable

35

SEAT

60307040100

Unavailable

36

SEAT COVER

60307040050

Unavailable

37

Gasket fuel lever sensor

60307080090

Unavailable

38

SEAT PILLION

60307047100

Unavailable

39

SEAT COVER PILLION

60307047050

Unavailable

41

TANK PROTECTOR R/S

60307028000B1A

Unavailable

42

DAMPER

60307032000

Unavailable

13

BRACKET FUEL HOSE

60307070000

Unavailable
