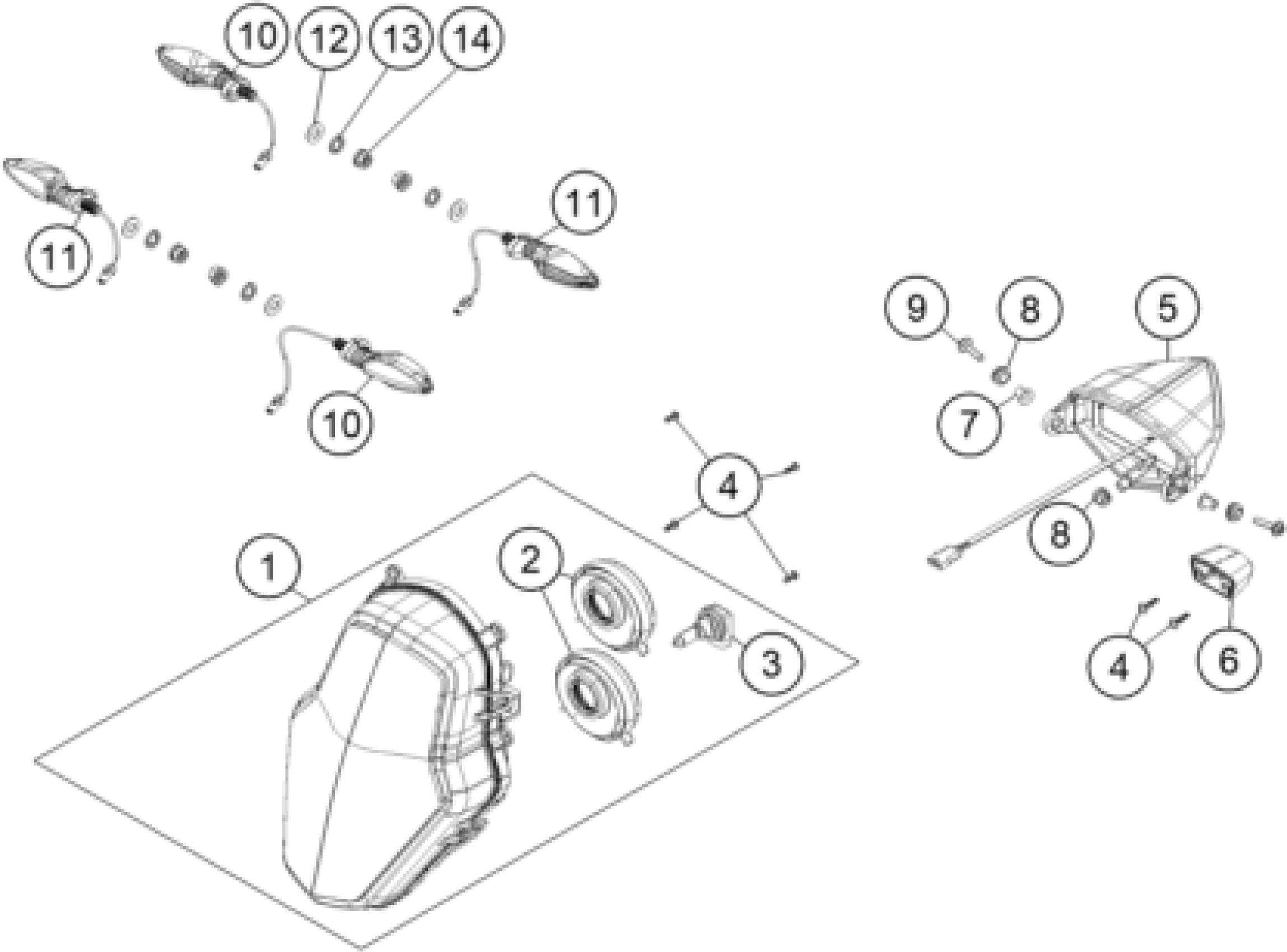

KTM 1190 ADV. ABS GREY WES. 2013 LIGHTING SYSTEM Diagram

#

Description

Price

1

HEAD LIGHT TFL

60314001000

$562.02

3

LAMP H11 12V 55W

60314003000

$26.45

4

EJOT PT screw K50x12

0081050121

$2.05

5

REAR LIGHT

60314040000

$117.24

6

license plate lighting

60314047000

$35.62

8

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

7

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

9

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

10

FLASHER CPL. FR.LS/REAR R/S

76014025000

Unavailable

11

FLASHER CPL. FR.RS/REAR L/S

76014026000

Unavailable

12

Washer DIN0433-M10

0433100003

$1.49

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

14

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

2

CAP H11

60314001050

$22.71
