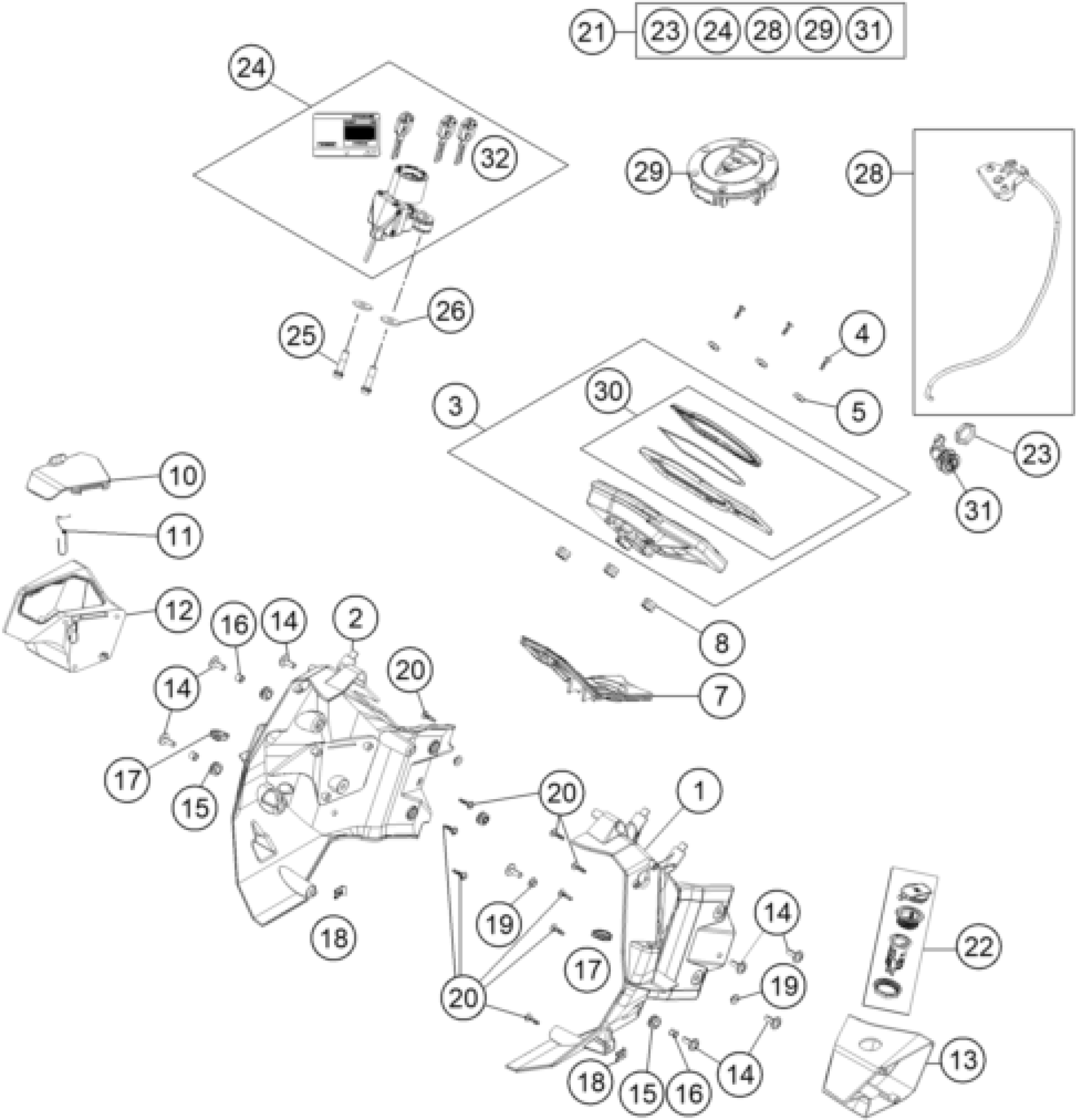

KTM 1190 ADV. ABS GREY WES. 2013 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

23

NUT SEAT LOCK M22X1,5

69007050050

Unavailable

30

Frame cpl. without screen

60314069050

Unavailable

31

LOCK CYLINDER SEAT LOCK

60307050020

Unavailable

26

WASHER DIN9021-A 8,4

0021080003

Unavailable

28

SEAT LOCK CPL.

60307050000

Unavailable

29

TANK CAP

60307008000

Unavailable

1

COCKPIT SUPPORT L/S

60314010000

Unavailable

2

COCKPIT SUPPORT R/S

60314011000

Unavailable

7

IGNITION LOCK CAP

60314012000

Unavailable

4

SCREW FOR PLASTIC PT K50X14T25

0081250141

Unavailable

5

SPECIAL WASHER 4.5X16

60308045000

Unavailable

8

DAMP. COMPONENT SPEEDOMETER

61314069051

Unavailable

15

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

18

RANGE CHANGE MET. NUT M5 15460

54603048400

Unavailable

14

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

16

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

17

RUBBER SLEEVE

60308008057

Unavailable

19

Chain slider bushing

69004060050

Unavailable

20

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

13

COCKPIT COVER L/S

60314070000

Unavailable

10

STORAGE BOX COVER

60314079000

Unavailable

11

STORAGE BOX SPRING

60314080000

Unavailable

12

STORAGE BOX

60314078000

Unavailable

3

SPEEDOMETER

60314069000

Unavailable

21

LOCK SYSTEM

60311066144

Unavailable

25

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

24

IGNITION LOCK

60311066000

Unavailable

22

POWER OUTLET 12V

60311042000

Unavailable

32

KTM ignition key

60411067000

Unavailable
