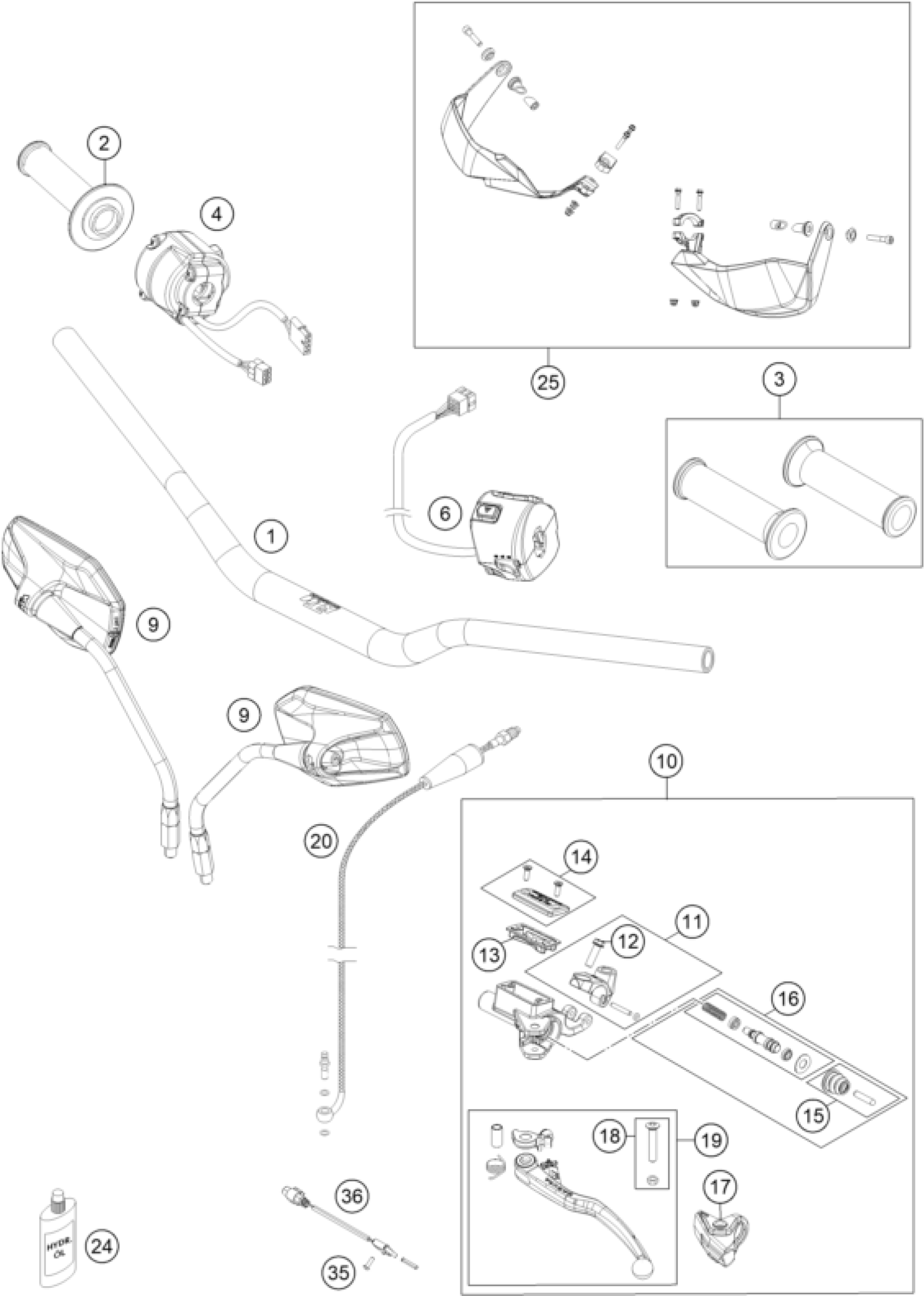

KTM 1190 ADV. ABS GREY WES. 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

20

CLUTCH PIPE LC8 ADV '03

60032063100

Unavailable

1

HANDLEBAR

60302001000

Unavailable

2

THROTTLE GRIP

76002010000

Unavailable

3

GRIP SET OPEN END

76002021000

Unavailable

4

START-STOP/E-GAS

76011073000

Unavailable

6

HANDLEBAR SWITCH

60311070000

Unavailable

9

MIRROR

60312040000

Unavailable

10

MASTER CYLINDER MAGURA 12MM

60302030000

Unavailable

11

CLAMP, CYL. PIN, O-RING

76513005000

Unavailable

12

HH collar screw M6x16 TX30

0025060166

Unavailable

13

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

14

COVER HYDR. CLUTCH CPL. 13

76502033000

Unavailable

15

PUSH ROD CPL. 13

76502046000

Unavailable

16

REPAIR KIT PISTONS

60302032000

Unavailable

17

PROTECT.CAP FOR LEVER PERCH 13

76502037000

Unavailable

18

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

19

CLUTCH LEVER LONG CPL. 2013

60302031000

Unavailable

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

25

HANDGUARDS CLOSED BLACK

6030217900030

Unavailable

35

FLAT HEAD SCREW DIN7985 M3x1

0985030103

Unavailable

36

CLUTCH SWITCH ATV

83111049000

Unavailable
