Description

Price

3

Screw cap M51x1,5 rebound red

48601062S2

$58.15

4

Screw cap M51x1,5 compression

48601062S3

$64.04

5

O-ring 45x2 NBR70 siliconized

46810340

$1.49

6

SPRING SPACER KIT

R514

$31.45

7

Cardridge kit cmpl. r/s

48601293S2

$373.87

8

Cardridge kit cmpl. l/s

48601294S2

$385.28

9

SPRING KIT

95010059S1

$130.89

10

AXLE CLAMP W. INNER TUBE L/S

48601081S1

$569.59

11

AXLE CLAMP W. INNER TUBE R/S

48601082S1

$569.59

12

Fork outer tube 49,13x550 dt54

48601099

$624.48

13

Gasket set cmpl.

R14030

Unavailable

14

Guide bushing 48x52x12

48601009

$12.05

15

Guide bushing 47x49x20

48601008

$12.05

16

pilot bushing set

R14028

$25.70

18

AH SCREW M10X20 SET

00501020S1

$11.49

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

Rep. kit ADV 2013

R14031

Unavailable

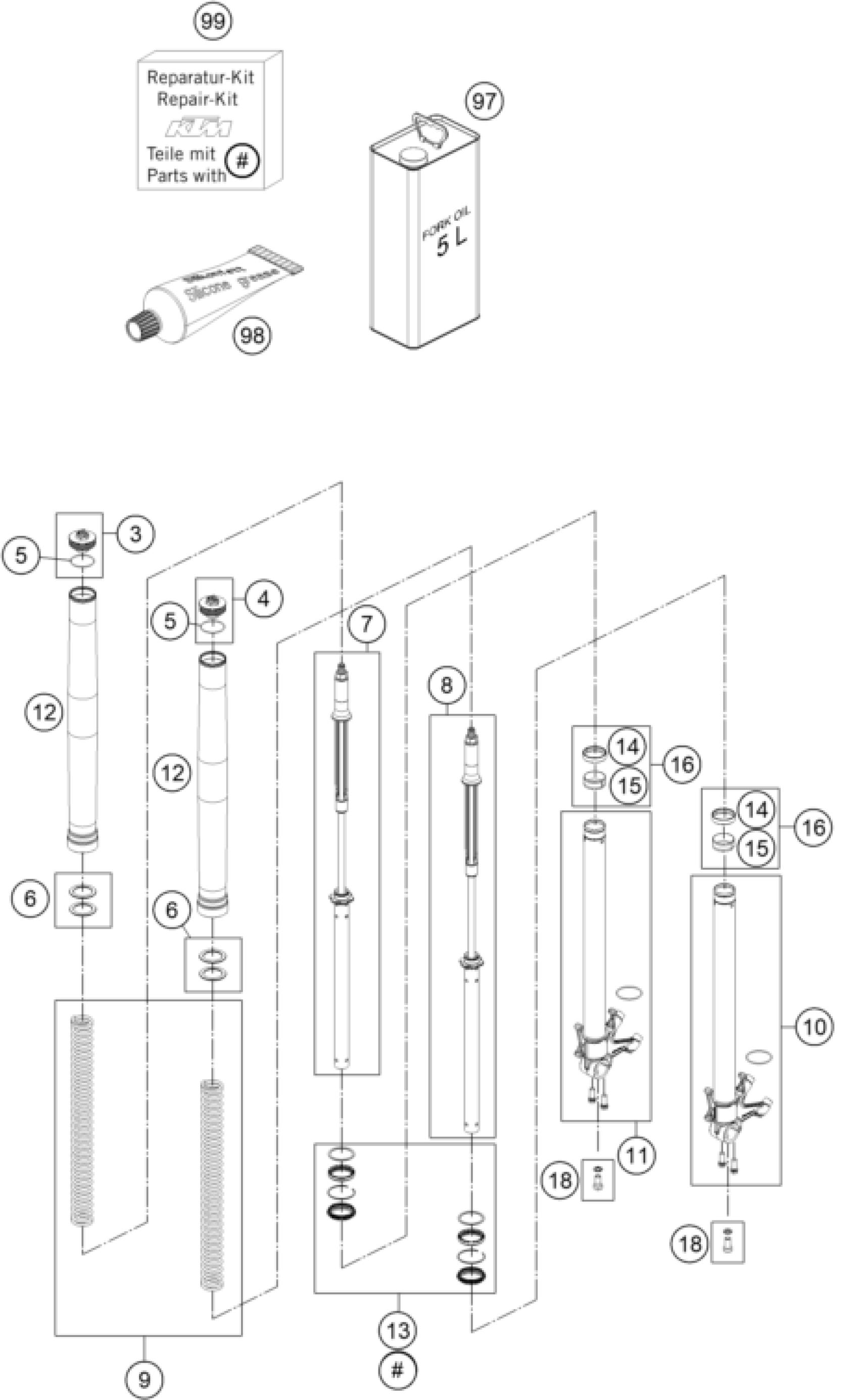

KTM 1190 ADV. ABS GREY WES. 2013 FRONT FORK DISASSEMBLED Diagram

Screw cap M51x1,5 rebound red

Screw cap M51x1,5 compression

O-ring 45x2 NBR70 siliconized

SPRING SPACER KIT

Cardridge kit cmpl. r/s

Cardridge kit cmpl. l/s

SPRING KIT

AXLE CLAMP W. INNER TUBE L/S

AXLE CLAMP W. INNER TUBE R/S

Fork outer tube 49,13x550 dt54

Gasket set cmpl.

Guide bushing 48x52x12

Guide bushing 47x49x20

pilot bushing set

AH SCREW M10X20 SET

Fork Fluid Viscosity 4.0 5L

SILICONE GREASE F. DUST STRI

Rep. kit ADV 2013
