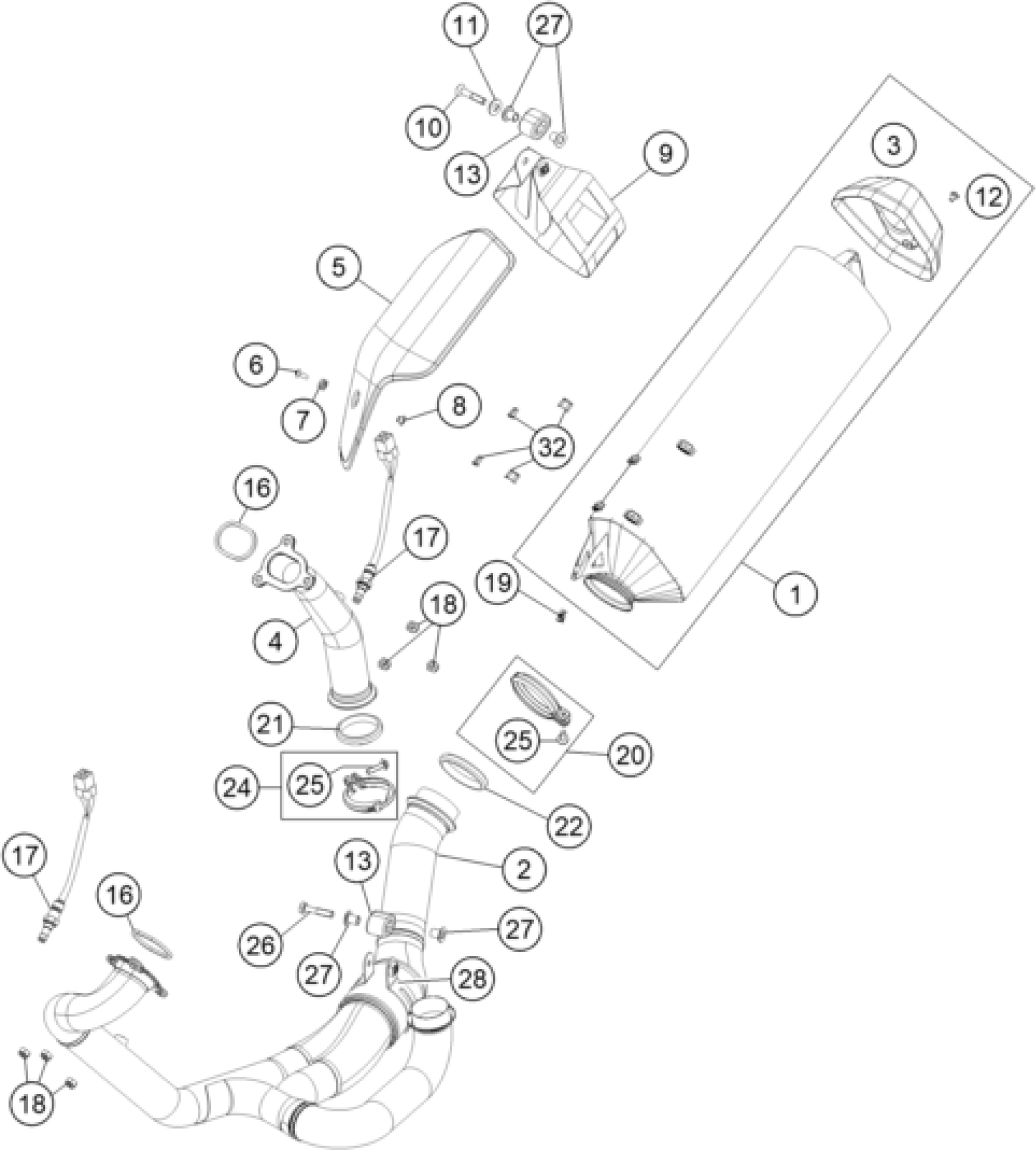

KTM 1190 ADV. ABS GREY WES. 2013 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER

60305083000

Unavailable

2

MANIFOLD FRONT CPL.

60305007000

Unavailable

4

MANIFOLD REAR CPL.

60305008000

Unavailable

6

Oval head screw M5x14 TX25

58605083014

Unavailable

7

SILICON SLEEVE

60305083081

Unavailable

8

SPACER BUSHING

60305083082

Unavailable

9

CLAMP SILENCER

60305083090

Unavailable

5

EXHAUST GUARD

60305111000

Unavailable

19

clip nut M5

69008021080

Unavailable

20

EXHAUST CLAMP CPL. 60MM

61305090000

Unavailable

10

countersunk screw M8x45 TX45

0019080456

Unavailable

11

WASHER 8MM GALVANIZED

54633037000

Unavailable

3

ENDCAP UNMOUNTED

60305083061

Unavailable

12

SCREW TORX M5X10

78105081010

Unavailable

13

DAMPING RUBBER

61305068000

Unavailable

32

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

17

LAMBDA SENSOR 07

75041090000

Unavailable

16

EXHAUST PIPE FLANGE GASKET

69005005100

Unavailable

18

self-locking nut M8 Cu

51010086100

Unavailable

21

MANIFOLD GASKET

69005005005

Unavailable

22

MANIFOLD GASKET 60MM

61305005005

Unavailable

24

CLAMP CPL.

69005050000

Unavailable

25

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

26

AH-COLLAR SCREW M8X40 ISA45

0035080406

Unavailable

27

BUSHING

60305069000

Unavailable

28

SHELL EXHAUST PIPE CPL.

60305007015

Unavailable
