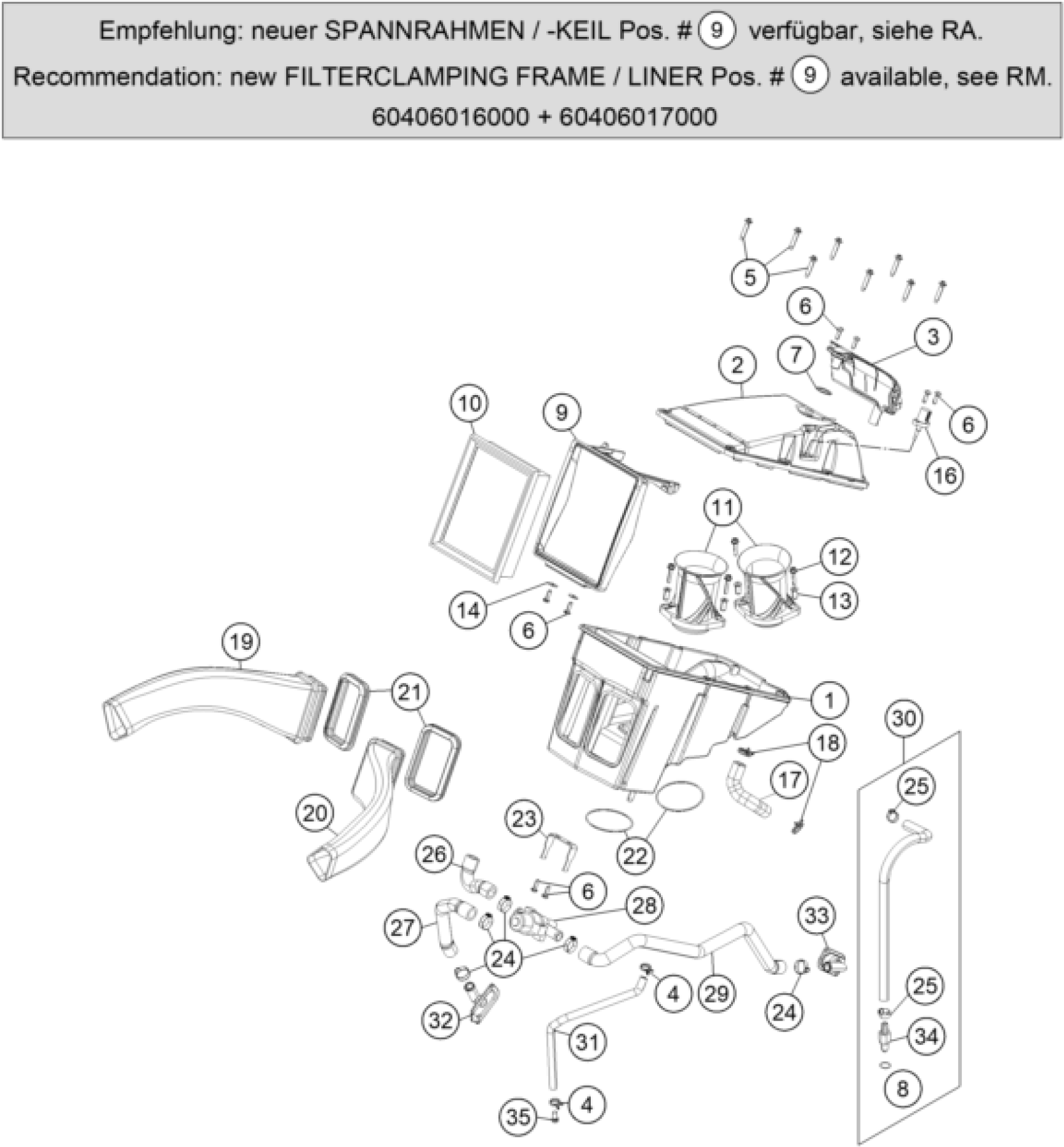

KTM 1190 ADV. ABS GREY WES. 2013 AIR FILTER Diagram

#

Description
Price

1

AIR FILTER HOUSING LOWER PART

60306001000

Unavailable

2

AIR FILTER BOX COVER

60306002000

$43.00

3

OIL SEPARATOR

60330088000

$37.67

5

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

9

FILTER FRAME MESH

60306016000

Unavailable

10

AIR FILTER

60306015000

$10.84

11

INTAKE TRUMPET LENGTH 100

60341040100

$16.54

12

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

13

Bushing intake funnel

60306042010

$4.11

22

O-RING 69,00X2,00 NBR 70

0770690020

$5.23

7

O-RING 21X2

0770210020

$2.05

14

washer DIN 9021 A - 5.3

0021050003

$1.49

16

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

17

OIL SEPARATOR FOAM HOSE

60330088030

$9.53

18

CLAMP YDNAC 10173 (19MM)

60306082000

$2.05

19

INTAKE DUCT RS

60306040000

$23.37

20

INTAKE DUCT LS

60306041000

$23.37

21

GASKET INTAKE DUCT

60306040050

$6.63

23

RETAINING BRACKET SLS

61305031000

$22.71

24

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

$3.08

25

Variable one-ear clamp 15.7mm

00050157706

$5.23

26

SAS HOSE - AIRBOX

61305035023

$16.54

27

SAS HOSE CYLINDER FRONT

61305035021

$19.72

28

CONTROL VALVE SAS 05

61005026000

$132.76

29

SAS HOSE CYLINDER REAR

61305035022

$32.25

30

FUEL HOSE 1 CPL.

60307016000

$50.11

31

HOSE NBR 7X11 PER METER

60015019001

$7.66

32

SAS flange

61205122000

$13.36

33

SAS-FLANGE

61205032000

$18.97

34

Plug CPC black 05

5850701030030

$43.28

35

HH collar screw M8x12 TX40

0025080126

$3.08

6

EJOT PT SCREW K50X16 1451

0081050161

$1.49

4

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

O-ring VITON f. plug CPC 0

58507012000

$6.26
