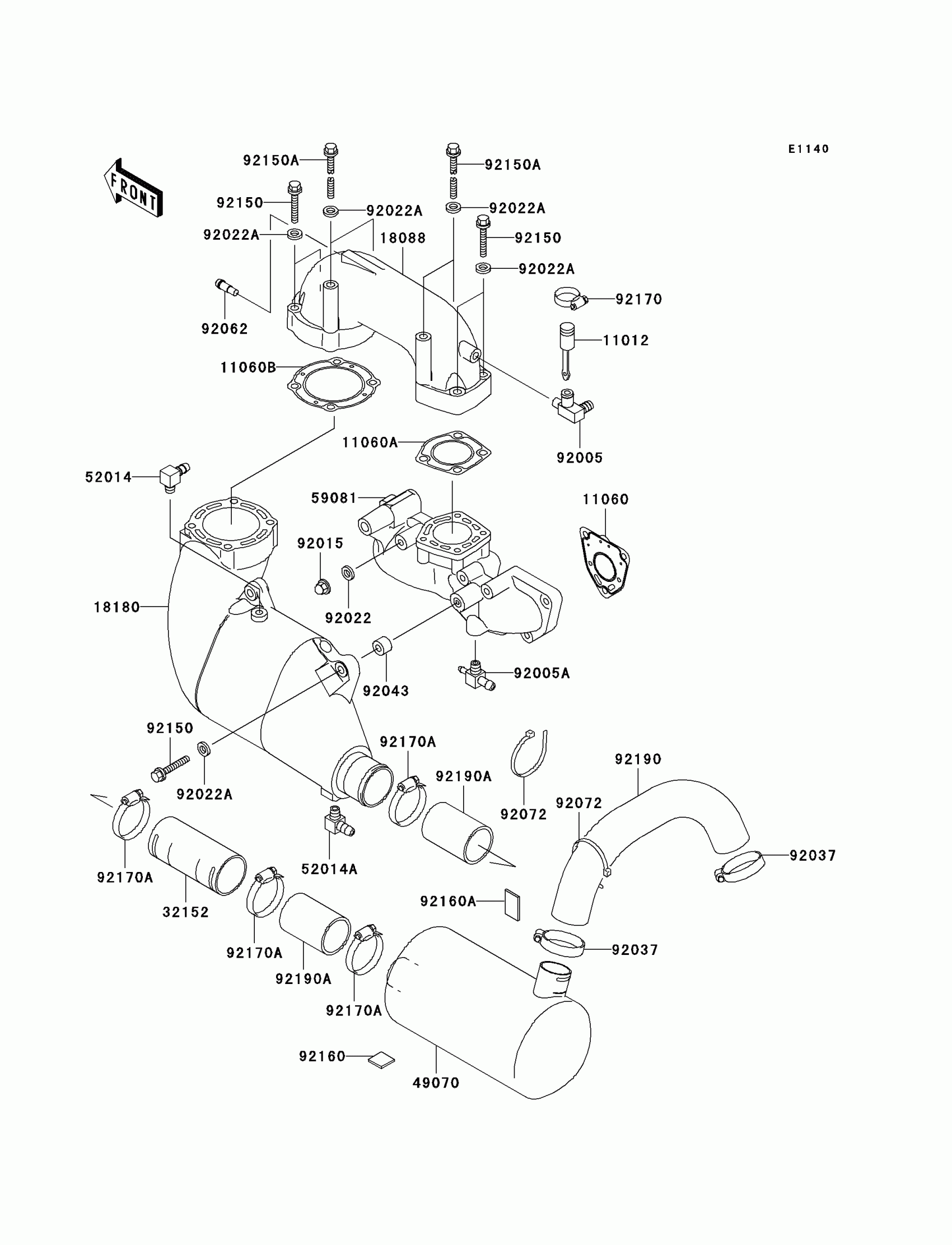

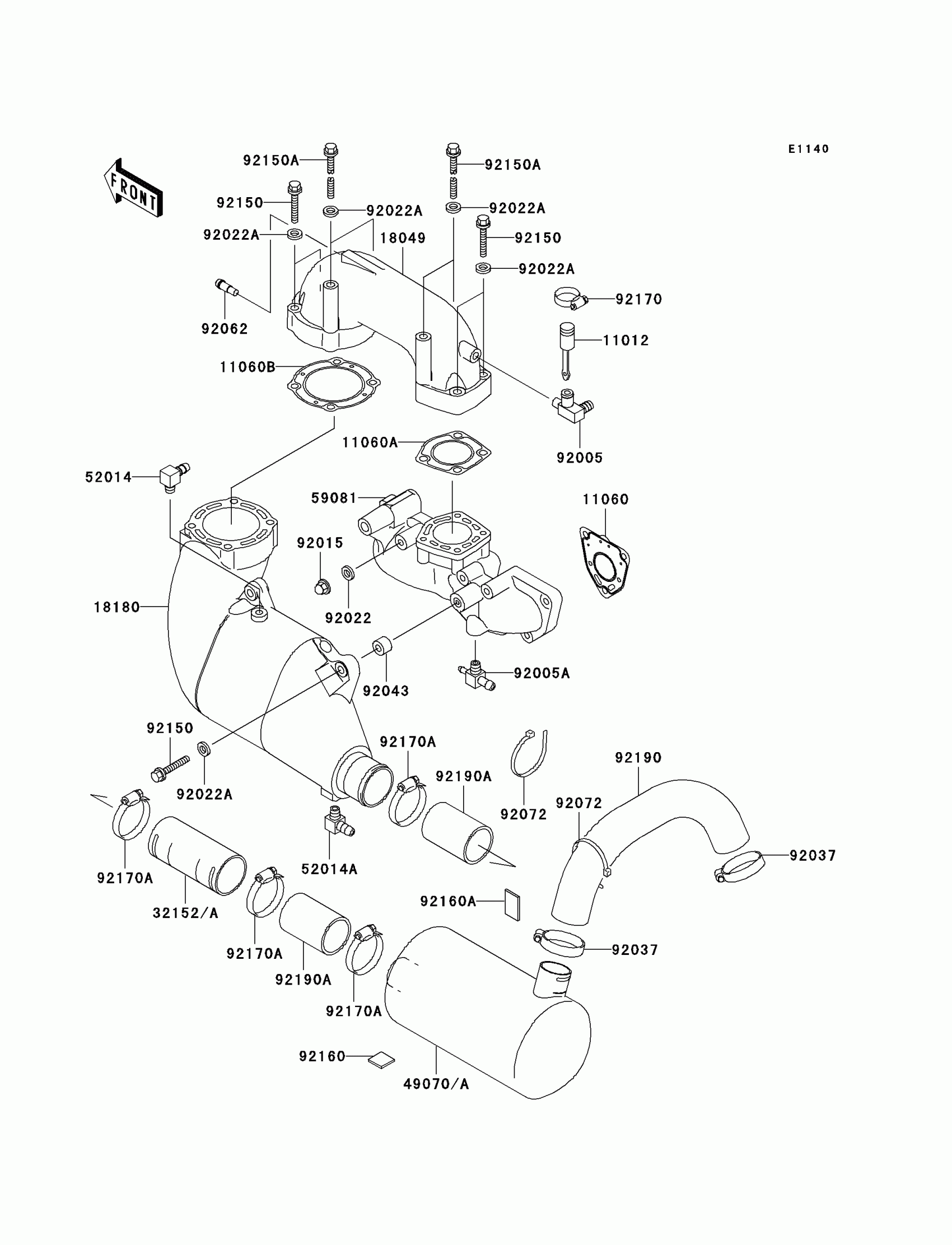

Kawasaki 1100 ZXi Muffler(s) Diagram
#
Description
Price
11012
CAP
11012-3757
$10.97
11060
GASKET
11060-3767
$29.61
11060A
GASKET,MANIFOLD
11060-3768
$38.51
11060B
GASKET,MUFFLER
11060-3769
$39.28
18088
PIPE-EXHAUST
18088-3707
$175.50
18180
BODY-MUFFLER
18180-3725
$446.43
32152
PIPE
32152-3757
$58.29
49070
MUFFLER-COMP
49070-3734
$363.16
52014
ELBOW
52014-3709
$26.86
52014A
ELBOW
52014-3711
$30.12
59081
MANIFOLD-EXHAUST
59081-3730
$621.37
92005
FITTING
92005-3715
$48.80
92005A
FITTING
92005-3720
$40.82
92015
NUT,CAP,8MM
92015-1371
$5.00
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER,10.2X20X1.5
92022-3742
$4.18
92037
CLAMP
92037-3738
$6.89
92043
PIN,11X14X12.3
92043-1266
$1.08
92062
NOZZLE
92062-3705
$8.44
92072
BAND,L=368.3
92072-3808
$1.59
92150
BOLT,10X50
92150-3819
$13.08
92150A
BOLT,10X125
92150-3825
$20.50
92160
DAMPER,25X25
92160-3864
$3.32
92160A
DAMPER,40X25
92160-3865
$5.24
92170
CLAMP
92170-3729
Unavailable
92170A
CLAMP
92170-3754
$13.41
92190
TUBE,MUFFLER-TAILPIPE
92190-3938
$41.45
92190A
TUBE,CHAMBER-MUFLLER
92190-3950
$29.82
