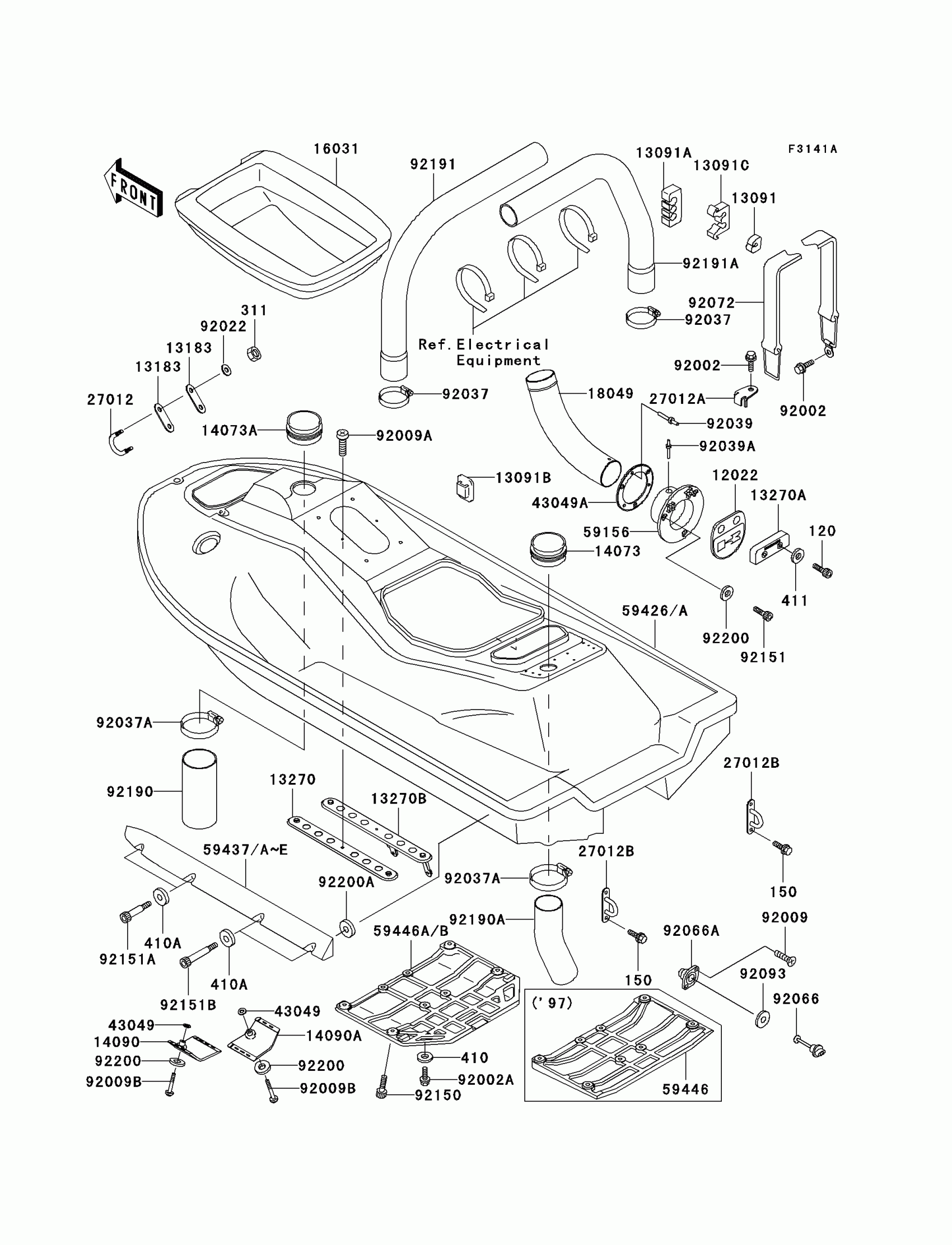

Kawasaki 1100 ZXi Hull(JH1100-A2-A5) Diagram

#

Description
Price

12022

VALVE-REED

12022-3706

$32.36

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER,TUBE

13091-3758

$10.75

13091B

HOLDER,BAND

13091-3764

$4.58

13091C

HOLDER,FILTER

13091-3795

$9.47

13183

PLATE

13183-3809

$5.61

13270

PLATE,HANDLE POLE BRACKET

13270-3776

Unavailable

13270A

PLATE

13270-3785

$7.97

13270B

PLATE,HANDLE POLE BRACKET

13270-3844

Unavailable

14073

DUCT,AIR INTAKE

14073-3750

$13.56

14073A

DUCT,AIR INTAKE

14073-3762

$15.68

14090

COVER,RAM,LH

14090-3787

$24.64

14090A

COVER,RAM,RH

14090-3788

$24.64

16031

FLOAT,TANK

16031-3837

Unavailable

18049

PIPE-EXHAUST

18049-3755

$87.83

27012

HOOK

27012-3776

$39.15

27012A

HOOK,WATER MUFFLER

27012-3777

$5.71

27012B

HOOK,REAR

27012-3782

$11.88

43049

PACKING

43049-3710

$0.58

43049A

PACKING

43049-3711

$10.44

59156

PIPE-TAIL

59156-3714

$27.54

59426

HULL-COMP,S.YELLOW

59426-3887-7H

$3,098.12

59437B

STABILIZER,LH,F.BLACK

59437-3711-6Z

$74.35

59437E

STABILIZER,RH,F.BLACK

59437-3712-6Z

$74.35

59446B

COVER-JET PUMP

59446-3745

$352.62

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92009A

SCREW,5X16

92009-3789

$2.42

92009B

SCREW,5X35

92009-3831

$2.63

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

120

BOLT-SOCKET,6X16

120R0616

$2.76

150

BOLT-WS,6X18

150R0618

$4.15

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

411

WASHER-PLAIN,6MM

411S0600

$1.49

92037

CLAMP

92037-3009

$3.25

92037A

CLAMP

92037-541

$9.85

92039

RIVET,4MM

92039-3703

$4.17

92039A

RIVET,4.8MM

92039-3719

$5.42

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92066A

PLUG,DRAIN

92066-3749

Unavailable

92072

BAND,WATER MUFFLER

92072-3781

$13.64

92093

SEAL

92093-3720

$2.75

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,5X25

92151-3709

$1.89

92151A

BOLT,SOCKET,6X40

92151-3719

$5.58

92151B

BOLT,SOCKET,6X52

92151-3720

$5.75

92190

TUBE

92190-3962

Unavailable

92190A

TUBE

92190-3963

Unavailable

92191

TUBE,LH

92191-3775

Unavailable

92191A

TUBE,RH

92191-3797

Unavailable

92200

WASHER,WD5X12X1.8

92200-3748

$5.22

92200A

WASHER,6X16X3

92200-3754

$4.15
