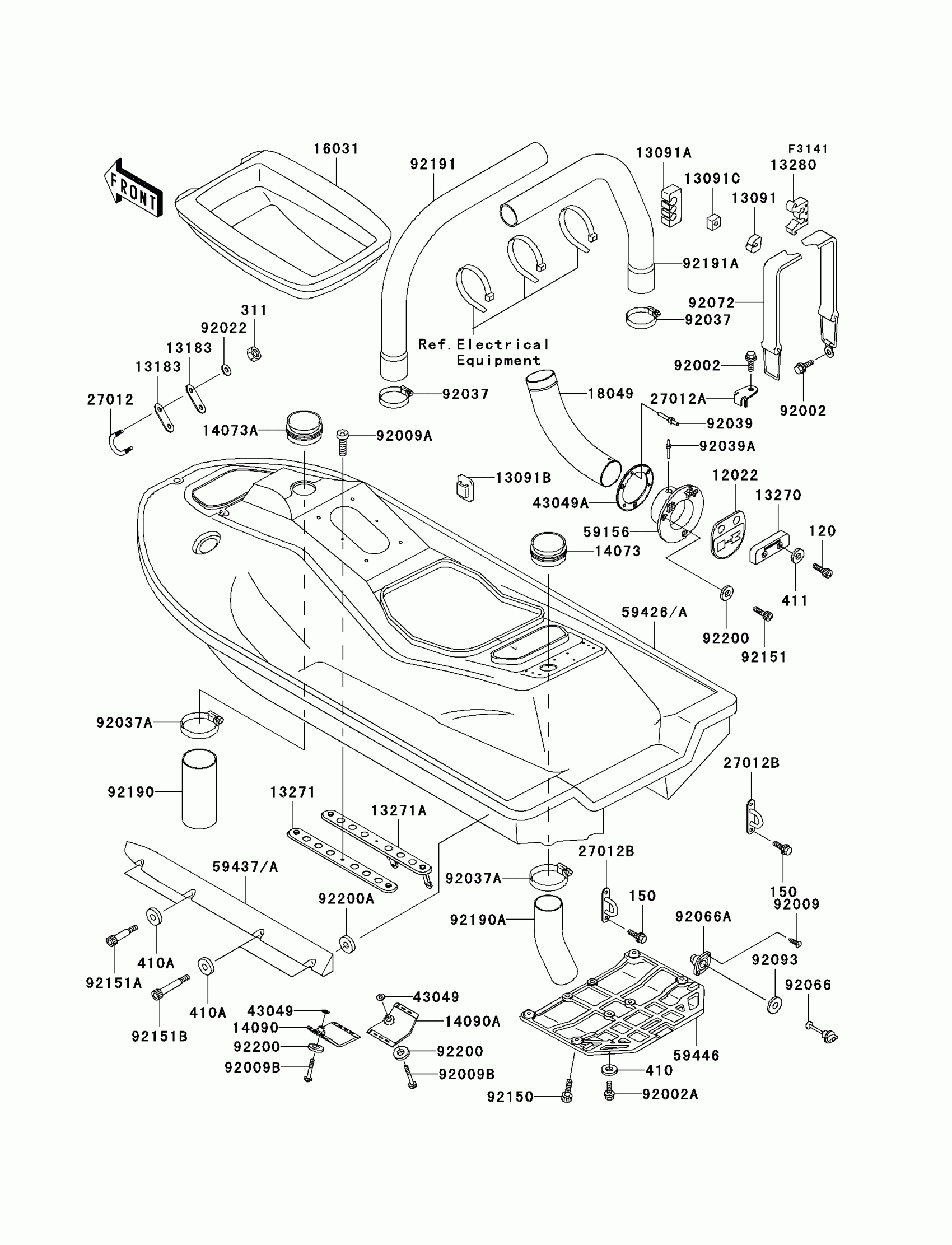

Kawasaki 1100 ZXi Hull Diagram
#
12022
VALVE-REED
12022-3706
$31.76
13091
HOLDER
13091-3712
$4.65
13091A
HOLDER,TUBE
13091-3758
$11.19
13091B
HOLDER,BAND
13091-3764
$5.17
13091C
HOLDER
13091-3804
$6.89
13183
PLATE
13183-3809
$7.34
13270
PLATE
13270-3785
$8.16
13271
PLATE,HANDLE POLE BRACKET
13271-3803
Unavailable
13271A
PLATE,HANDLE POLE BRACKET
13271-3805
Unavailable
13280
HOLDER,FUEL FILTER
13280-3705
$9.80
14073
DUCT,AIR INTAKE
14073-3750
$17.99
14073A
DUCT,AIR INTAKE
14073-3762
$16.68
14090
COVER,RAM,LH
14090-3787
$26.25
14090A
COVER,RAM,RH
14090-3788
$26.25
16031
FLOAT,TANK
16031-3901
Unavailable
18049
PIPE-EXHAUST
18049-3755
$86.17
27012
HOOK
27012-3776
$38.41
27012A
HOOK,WATER MUFFLER
27012-3777
$6.56
27012B
HOOK,REAR
27012-3782
$12.43
43049
PACKING
43049-3710
Unavailable
43049A
PACKING
43049-3711
$10.86
59156
PIPE-TAIL
59156-3714
Unavailable
59426A
HULL-COMP,J.WHITE
59426-3887-8C
$3,025.42
59437
STABILIZER,LH,F.BLACK
59437-3711-6Z
$72.96
59437A
STABILIZER,RH,F.BLACK
59437-3712-6Z
$72.96
59446
COVER-JET PUMP
59446-3745
$345.39
92002
BOLT,6X16
92002-3728
$4.69
92002A
BOLT,6X20
92002-3755
$4.69
92009
SCREW,TAPPING,4X14
92009-3755
$2.55
92009A
SCREW,5X16
92009-3789
$2.97
92009B
SCREW,5X35
92009-3831
$3.27
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92037
CLAMP
92037-3009
$3.70
92037A
CLAMP
92037-541
$10.24
92039
RIVET,4MM
92039-3703
$4.69
92039A
RIVET,4.8MM
92039-3719
$6.22
92066
PLUG,RR,DRAIN
92066-3744
$20.70
92066A
PLUG,DRAIN
92066-3749
$9.53
92072
BAND,WATER MUFFLER
92072-3781
$14.36
120
BOLT-SOCKET,6X16
120R0616
$3.65
150
BOLT-WS,6X18
150R0618
$4.67
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
410A
WASHER-PLAIN-SMALL,8MM
410S0800
$2.58
411
WASHER-PLAIN,6MM
411S0600
$2.06
92093
SEAL
92093-3720
$3.62
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92151
BOLT,SOCKET,5X25
92151-3709
$2.67
92151A
BOLT,SOCKET,6X40
92151-3719
$6.41
92151B
BOLT,SOCKET,6X52
92151-3720
$6.61
92190
TUBE
92190-3962
Unavailable
92190A
TUBE
92190-3963
Unavailable
92191
TUBE,LH
92191-3775
Unavailable
92191A
TUBE,RH
92191-3797
Unavailable
92200
WASHER,WD5X12X1.8
92200-3748
$5.96
92200A
WASHER,6X16X3
92200-3754
$4.67
