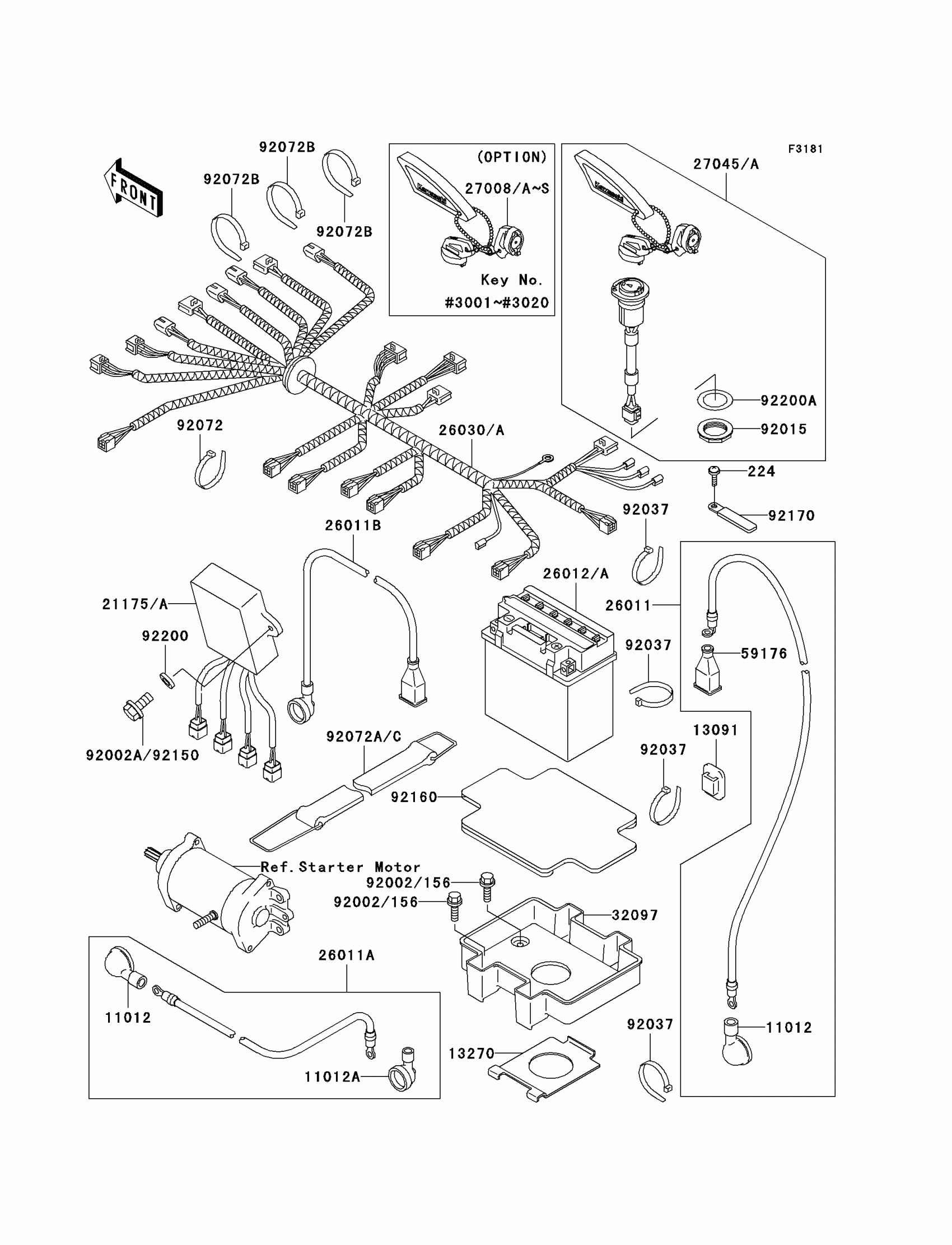

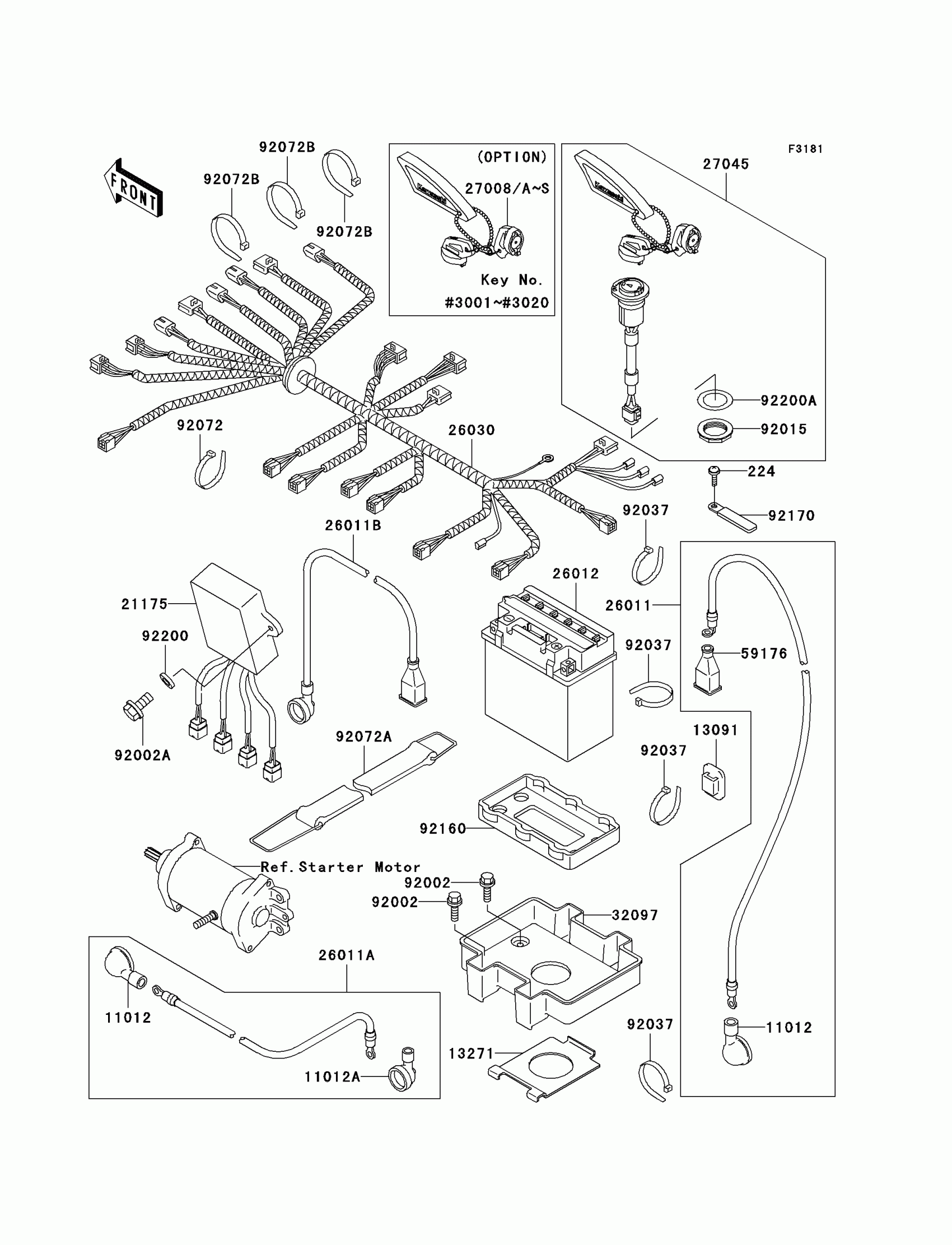

Kawasaki 1100 ZXi Electrical Equipment Diagram

#

Description
Price

11012

CAP

11012-3004

$7.44

11012A

CAP,LEAD WIRE

11012-3726

$7.71

13091

HOLDER,BAND

13091-3764

$4.58

13270

PLATE,BATTERY

13270-3879

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-3705

$594.98

26011

WIRE-LEAD,STARTER-BATTERY

26011-3796

$70.16

26011A

WIRE-LEAD,RELAY-STARTER

26011-3797

$66.79

26011B

WIRE-LEAD,BATTERY(+)

26011-3825

$61.36

26012A

BATTERY,YTX20L-BS,12V 18AH

26012-3725

$150.70

26030A

HARNESS,MAIN

26030-3717

$493.63

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$75.48

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

Unavailable

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

Unavailable

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$75.48

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$75.48

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

Unavailable

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

Unavailable

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$75.48

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$75.48

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

Unavailable

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$75.48

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$75.48

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$75.48

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

Unavailable

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

$75.48

224

SCREW-PAN-WP-CROS

224R0614

$2.64

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$75.48

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

Unavailable

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

$75.48

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$75.48

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

Unavailable

27045A

SWITCH-ASSY,MAIN

27045-3716

$362.14

32097

CASE-BATTERY

32097-3703

$18.59

59176

CAP.,TERMINAL

59176-501

Unavailable

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92015

NUT

92015-3848

$4.85

92037

CLAMP

92037-1173

$2.58

92072

BAND,L=201

92072-3778

$1.61

92072B

BAND

92072-3799

$1.20

92072C

BAND,340X22

92072-3805

$11.31

92160

DAMPER,BATTERY

92160-3860

$11.39

92170

CLAMP

92170-3705

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92200A

WASHER

92200-3736

$2.66
