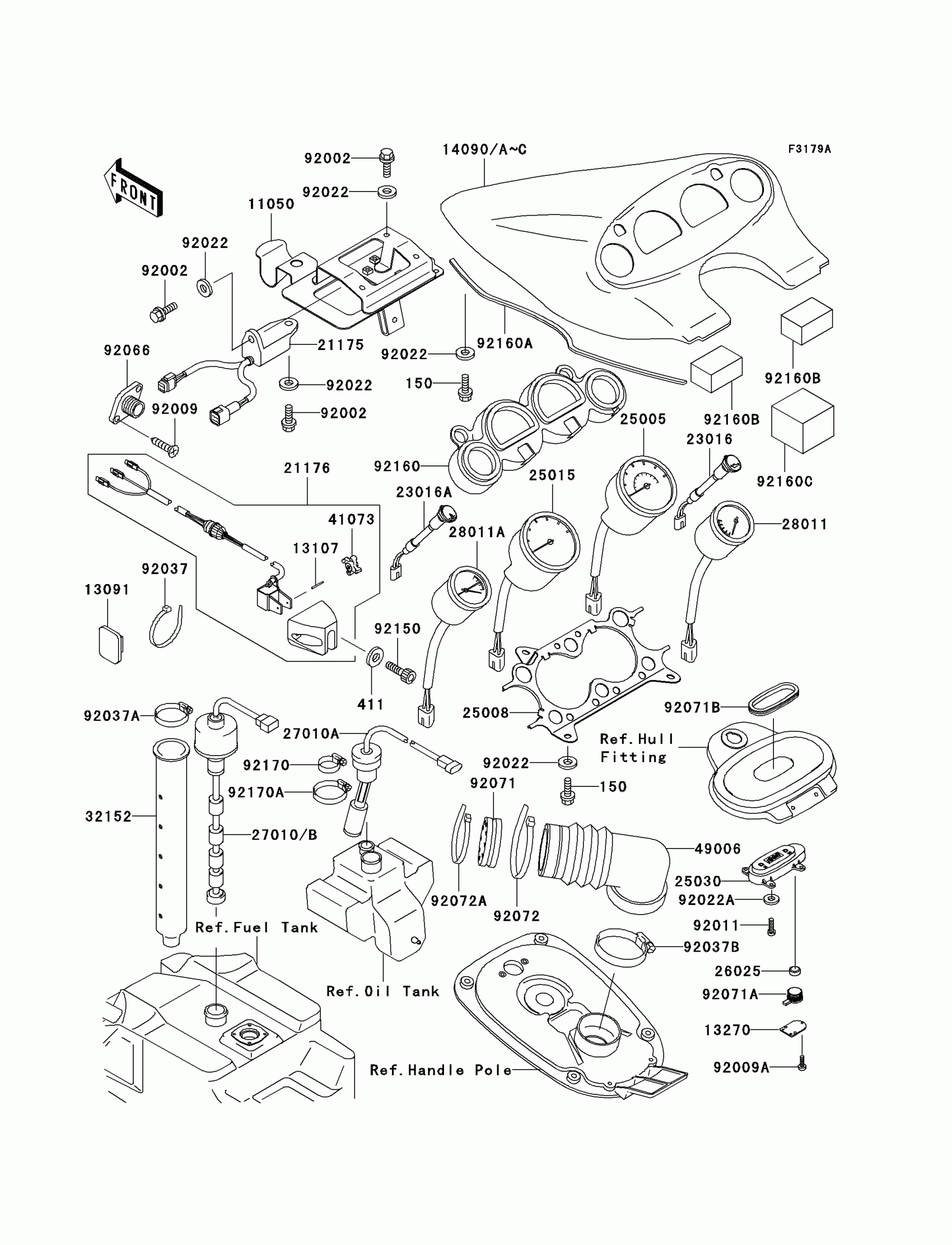

Kawasaki 1100 ZXi Meters(JH1100-A2-A5) Diagram

#

Description
Price

11050

BRACKET,UNIT MOUNT

11050-3715

Unavailable

13091

HOLDER,BAND

13091-3764

$4.58

13107

SHAFT,PADDLEWHEEL

13107-3743

$5.51

13270

PLATE

13270-3838

$7.54

14090

COVER,METER,EBONY

14090-3749-H8

Unavailable

21175

CONTROL UNIT-ELECTRONIC

21175-3701

$282.96

21176

SENSOR,SPEEDOMETER

21176-3719

$182.68

23016

LAMP-ASSY,OIL LEVEL WARNING

23016-3703

$73.76

23016A

LAMP-ASSY,WATER TEMP WARNING

23016-3704

$73.76

25005

SPEEDOMETER

25005-3702

$443.21

25008

BRACKET-METER

25008-3705

$98.26

25015

TACHOMETER,X1000R/MIN

25015-3702

$411.59

25030

CLOCK,F.BLACK

25030-3704-6Z

$296.54

26025

Not Available As Spare Part - Friction Washer

Unavailable

27010A

SWITCH,OIL LEBEL

27010-3754

$177.46

27010B

SWITCH,FUEL LEVEL

27010-3771

Unavailable

28011

METER,FUEL

28011-3708

$259.63

28011A

METER,TRIM

28011-3718

$229.07

32152

PIPE,FUEL LEVEL SWITCH

32152-3734

$61.04

41073

WHEEL-ASSY,PADDLE

41073-3701

$13.30

49006

BOOT,HARNESS

49006-3715

Unavailable

92002

BOLT,6X20

92002-3755

$3.72

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92009A

SCREW,TAPPING,2X8

92009-3826

$2.64

92011

SCREW

92011-562

$1.42

92022

WASHER,6.5X20X1.5

92022-3710

$2.92

92022A

WASHER

92022-563

$1.05

92037

CLAMP

92037-1173

$2.92

92037A

CLAMP

92037-1596

Unavailable

92037B

CLAMP

92037-3711

$5.83

92066

PLUG,SPEEDOMETER SENSER

92066-3750

$9.75

92071

GROMMET,HARNESS

92071-3803

Unavailable

92071A

GROMMET

92071-3813

$7.73

92071B

GROMMET,CLOCK

92071-3817

Unavailable

92072

BAND,L=292.1

92072-3509

Unavailable

150

BOLT-WS,6X14

150R0614

$5.22

411

WASHER-PLAIN,6MM

411S0600

$1.73

92072A

BAND,L=201

92072-3778

$1.61

92150

BOLT,SOCKET,6X25

92150-3823

Unavailable

92160

DAMPER,METER

92160-3834

Unavailable

92160A

DAMPER

92160-3843

Unavailable

92160B

DAMPER

92160-3859

Unavailable

92160C

DAMPER

92160-3862

Unavailable

92170

CLAMP

92170-3718

$10.76

92170A

CLAMP

92170-3734

$15.02
