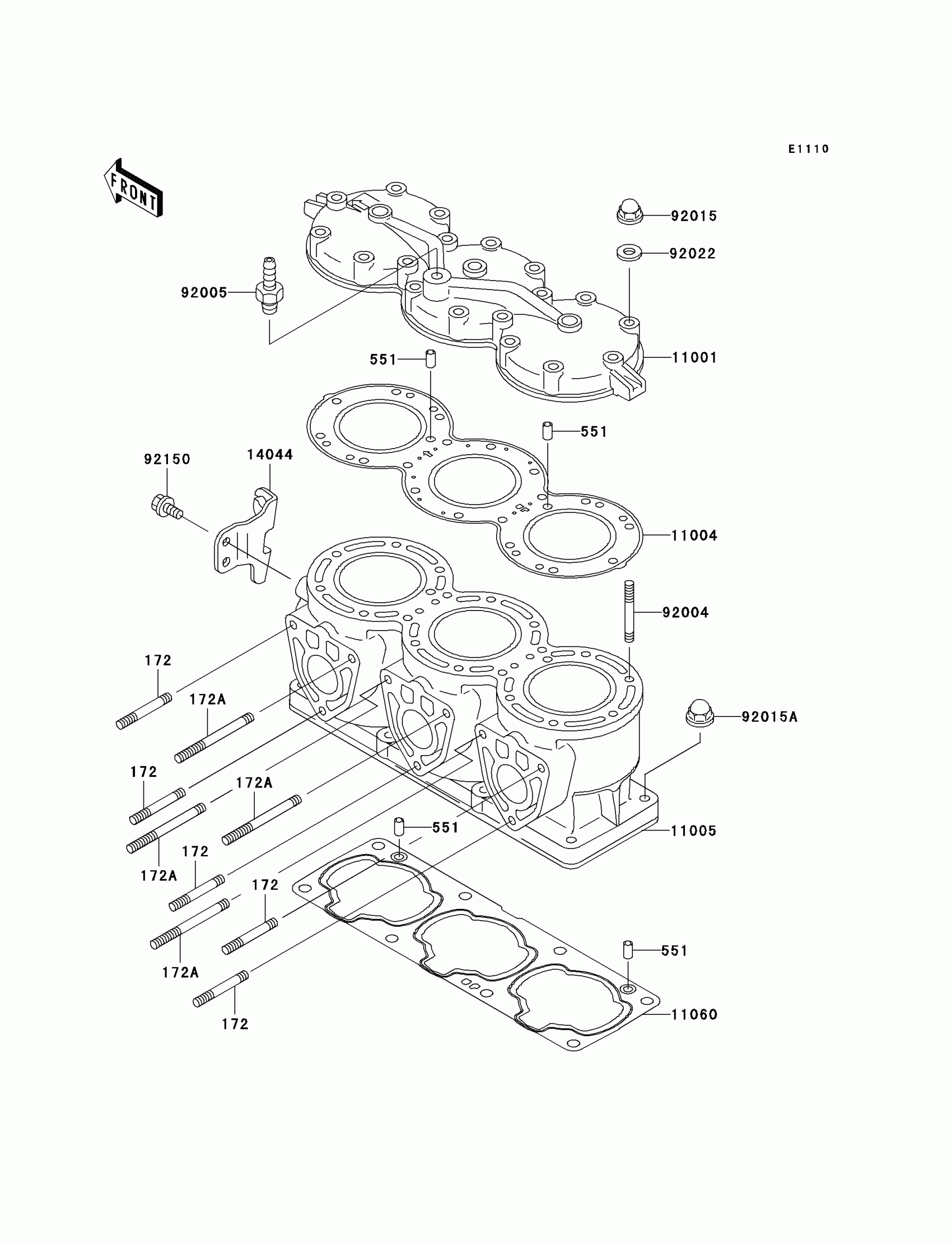

Kawasaki 1100 ZXi Cylinder Head/Cylinder Diagram

Description

Price

172

BOLT-STUD,8X30

172R0830

$8.44

172A

BOLT-STUD,8X75

172R0875

$16.72

551

PIN-DOWEL

551R0812

$7.91

11001

HEAD-CYLINDER

11001-3738

$655.26

11004

GASKET-HEAD

11004-3715

$70.12

11005

CYLINDER-ENGINE

11005-3747

$1,627.56

11060

GASKET,CYLINDER BASE

11060-3817

$67.72

14044

HOLDER-CABLE

14044-3729

$36.45

92004

STUD,8X43

92004-3715

$10.46

92005

FITTING

92005-3714

$18.72

92015

NUT,CAP,8MM

92015-1371

$5.00

92015A

NUT,10MM

92015-1649

$5.52

92022

WASHER,8.2X18X1.5

92022-1964

$4.18

92150

BOLT,8X16

92150-3722

$7.62
