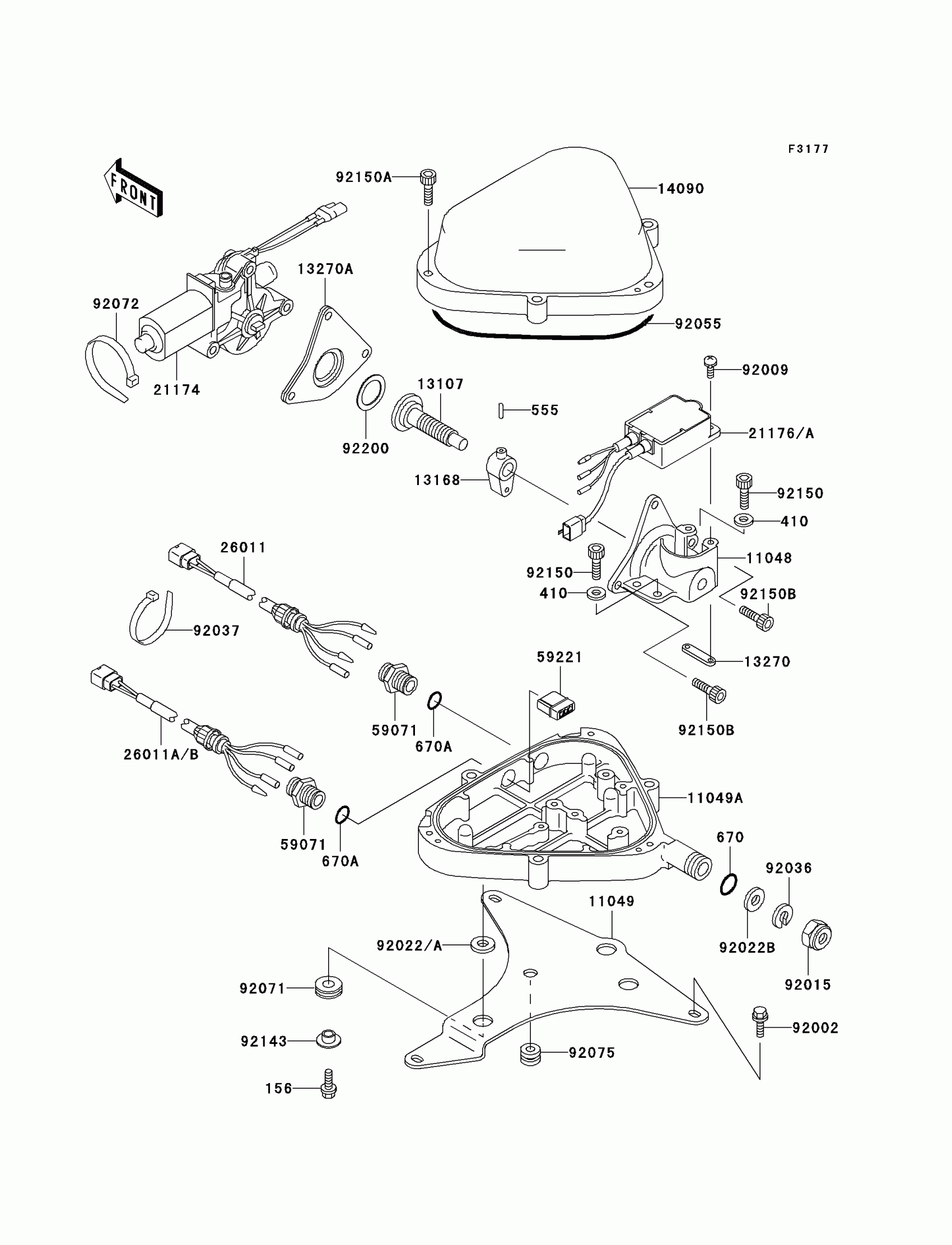

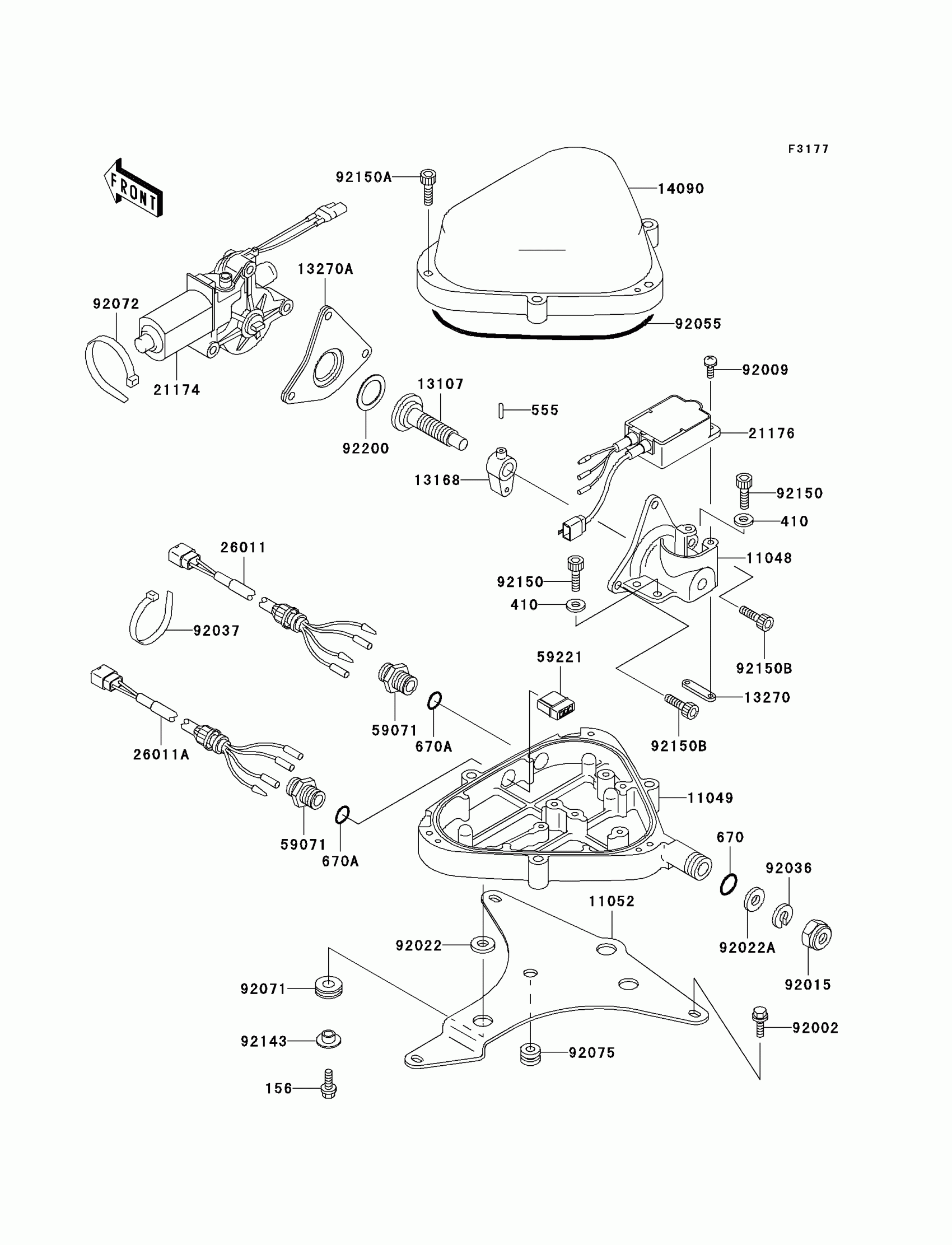

Kawasaki 1100 ZXi Control Diagram
#
Description
Price
156
BOLT-WP,6X22
156R0622
$4.09
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
555
PIN-SPRING,3X14
555B0314
$4.67
670
O RING,11MM
670B2011
$1.28
670A
O RING,16MM
670B2016
$1.36
11048
BRACKET,MOTOR MOUNT
11048-3738
$79.17
11049
BRACKET,MOTOR BOX,LWR
11049-3715
Unavailable
11052
BRACKET,TILT BOX
11052-3728
Unavailable
13107
SHAFT
13107-3748
$52.58
13168
LEVER,SLIDE
13168-3730
Unavailable
13270
PLATE,TRIM SENSOR
13270-3744
$7.33
13270A
PLATE,MOTOR MOUNT
13270-3822
$33.84
14090
COVER,MOTOR BOX,UPP
14090-3768
$172.03
21174
MOTOR-ELECTRIC
21174-3703
$607.83
21176
SENSOR,TRIM METER
21176-3722
$319.82
26011
WIRE-LEAD,TRIM SWITCH
26011-3835
$46.40
26011A
WIRE-LEAD,TRIM METER
26011-3840
$51.63
59071
JOINT
59071-3001
$6.29
59221
CONNECTOR-CORD
59221-3709
$2.44
92002
BOLT,6X16
92002-3728
$4.69
92009
SCREW,4X12
92009-3807
$4.97
92015
NUT,20MM
92015-526
$29.72
92022
WASHER,6.5X20X1.5
92022-3710
$3.65
92022A
WASHER
92022-535
$7.34
92036
RING-SNAP
92036-501
Unavailable
92037
CLAMP
92037-1173
$3.49
92055
RING-O,ID=171
92055-3737
$13.43
92071
GROMMET
92071-3737
$5.54
92072
BAND,L=201
92072-3778
$1.84
92075
DAMPER
92075-1435
$6.45
92143
COLLAR
92143-3749
$5.23
92150
BOLT,SOCKET,6X18
92150-3775
$4.69
92150A
BOLT,SOCKET,6X30
92150-3822
$4.31
92150B
BOLT,SOCKET,6X25
92150-3823
$4.40
92200
WASHER,22.5X32X1
92200-3742
Unavailable
