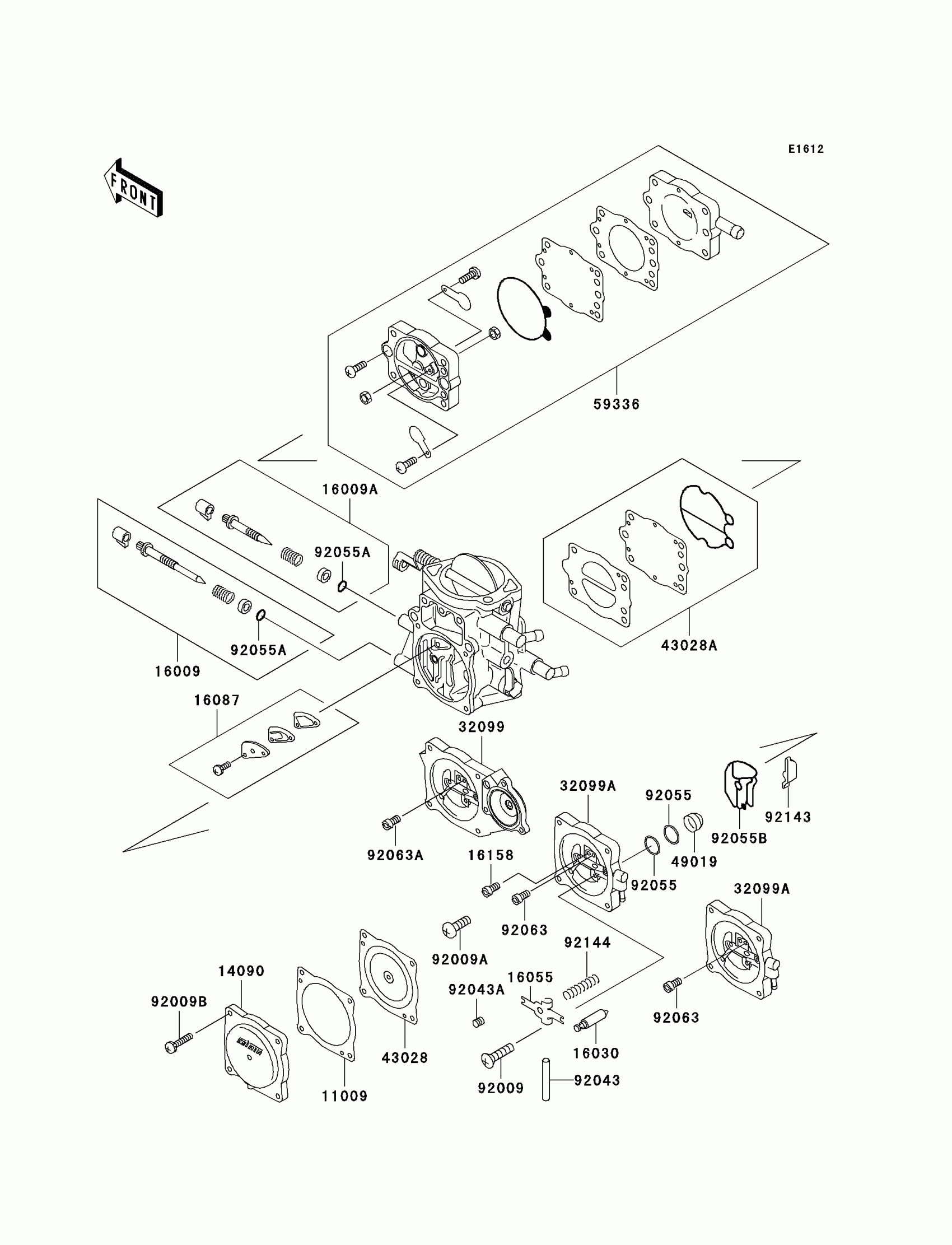

Kawasaki 1100 ZXi Carburetor Parts(-JHT10AE006977) Diagram

Description

Price

11009

GASKET,DIAPHRAGM

11009-3730

$14.53

14090

COVER,DIAPHRAGM

14090-3702

Unavailable

16009

NEEDLE-JET,SLOW

16009-3714

Unavailable

16009A

NEEDLE-JET,MAIN

16009-3719

Unavailable

16030

VALVE-FLOAT

16030-3701

$44.67

16055

ARM-FLOAT

16055-3701

$48.58

16087

VALVE-CHECK,MAIN

16087-3705

Unavailable

16158

JET-SLOW,#72

16158-3710

Unavailable

32099

CASE,FR

32099-3812

$148.90

32099A

CASE

32099-3823

Unavailable

43028

DIAPHRAGM,CARBURETOR

43028-3704

$97.40

43028A

DIAPHRAGM,PUMP

43028-3706

$147.16

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

59336

CASE-PUMP

59336-3710

$184.42

92009

SCREW,3X8

92009-3712

$1.49

92009A

SCREW,4X8

92009-3804

$3.98

92009B

SCREW,4X18

92009-3808

$8.36

92043

PIN,FLOAT

92043-1209

$5.37

92043A

PIN,THROTTLE STOP SCREW

92043-3712

Unavailable

92055

RING-O

92055-1246

$3.43

92055A

RING-O,ADJUST SCREW

92055-3713

Unavailable

92055B

RING-O

92055-3735

$10.19

92063

JET-MAIN,#120

92063-3702

Unavailable

92063A

JET-MAIN,#125

92063-3710

Unavailable

92143

COLLAR

92143-3727

$34.96

92144

SPRING,FLOAT ARM

92144-3744

Unavailable
