Description

Price

11049

BRACKET,SEAT

11049-3735

$50.89

11051

BRACKET,DECK,INSIDE

11051-3727

Unavailable

11065

CAP,SEAT LOCK HOOK

11065-3702

$25.85

13270

PLATE,FRONT SEAT HOOK,OUTER

13270-3910

$9.31

27012

HOOK,FRONT SEAT LOCK

27012-3814

$35.98

27016

LOCK-ASSY,FRONT SEAT

27016-3747

$66.32

27016A

LOCK-ASSY,REAR SEAT

27016-3749

$82.88

53001A

SEAT-ASSY,FR,F.SILVER

53001-3733-MN

$268.67

53001C

SEAT-ASSY,RR,S.GRAY

53001-3741-NJ

$138.25

53045

HOOK-ASSY,SEAT LOCK

53045-3706

$108.49

92002

BOLT,6X25

92002-3714

$5.00

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92015A

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92200

WASHER,6.5X20X1.5

92200-3715

$3.92

92200A

WASHER,8.5X18X3

92200-3761

$2.46

92210

NUT,FLANGED,6MM

92210-3718

$5.23

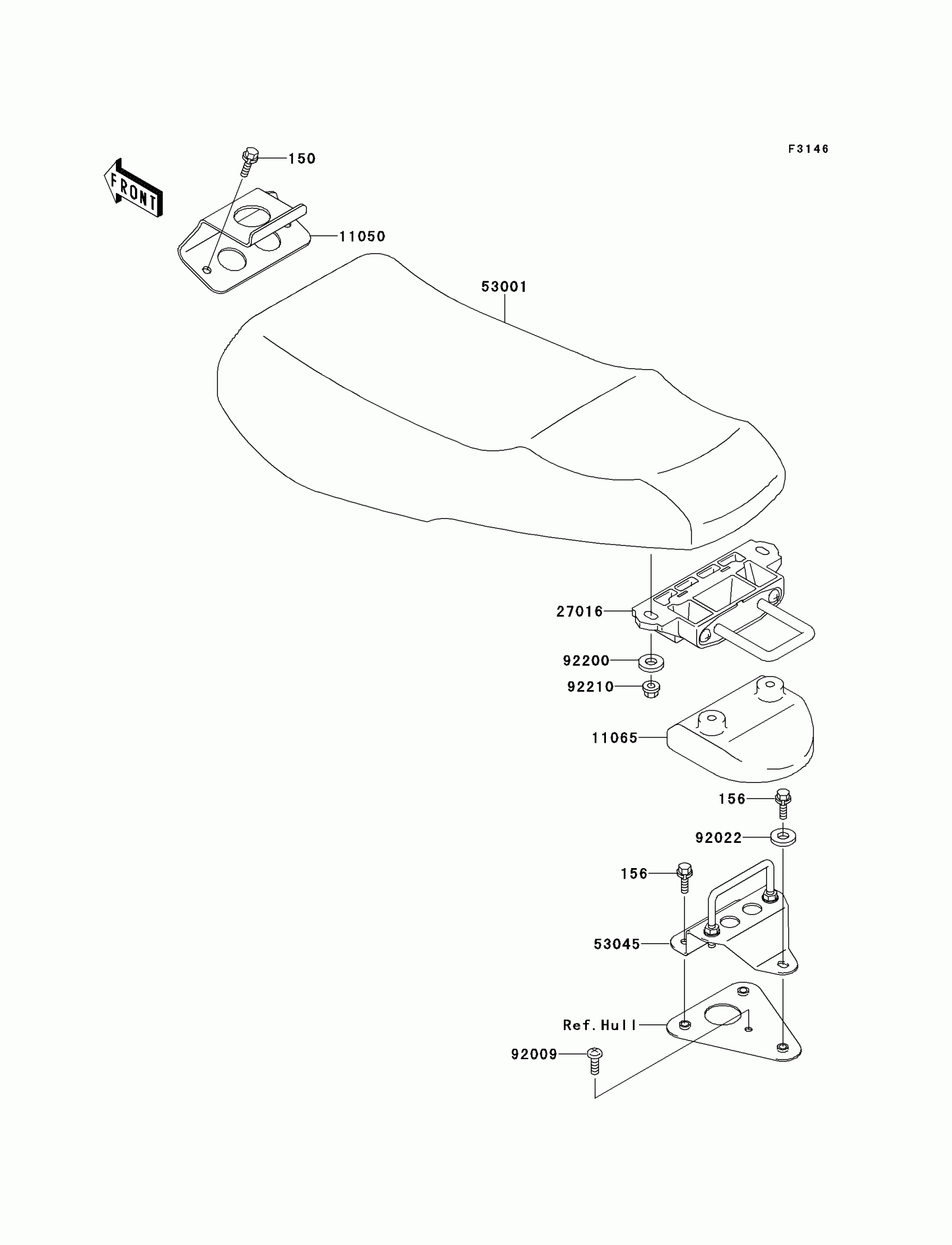

Kawasaki 1100 STX Seat Diagram

BRACKET,SEAT

BRACKET,DECK,INSIDE

CAP,SEAT LOCK HOOK

PLATE,FRONT SEAT HOOK,OUTER

HOOK,FRONT SEAT LOCK

LOCK-ASSY,FRONT SEAT

LOCK-ASSY,REAR SEAT

SEAT-ASSY,FR,F.SILVER

SEAT-ASSY,RR,S.GRAY

HOOK-ASSY,SEAT LOCK

BOLT,6X25

NUT,FLANGED,8MM

NUT,6MM

WASHER,6.5X20X1.5

CLAMP,SPEED,L=43

WASHER,6.5X20X1.5

WASHER,8.5X18X3

NUT,FLANGED,6MM
