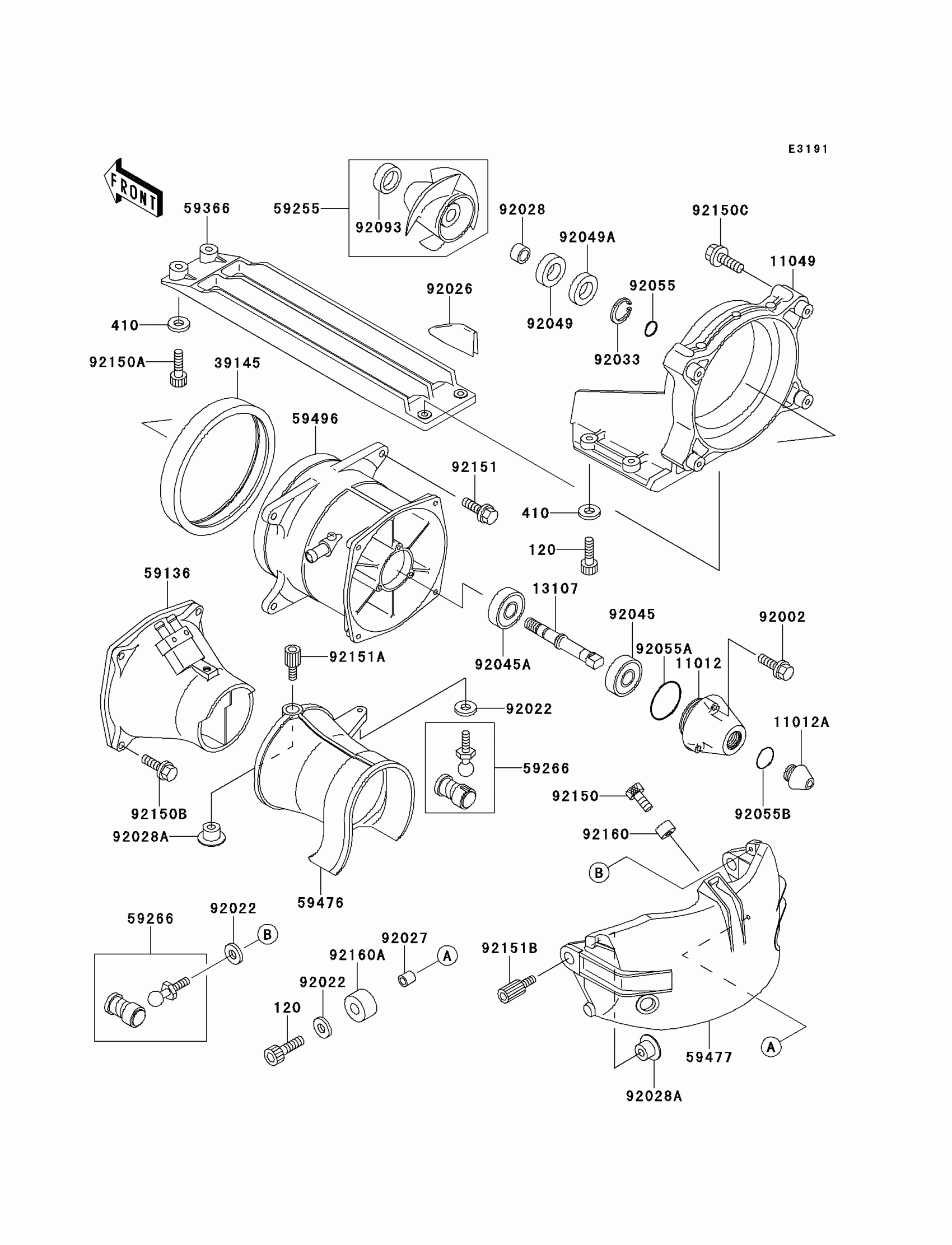

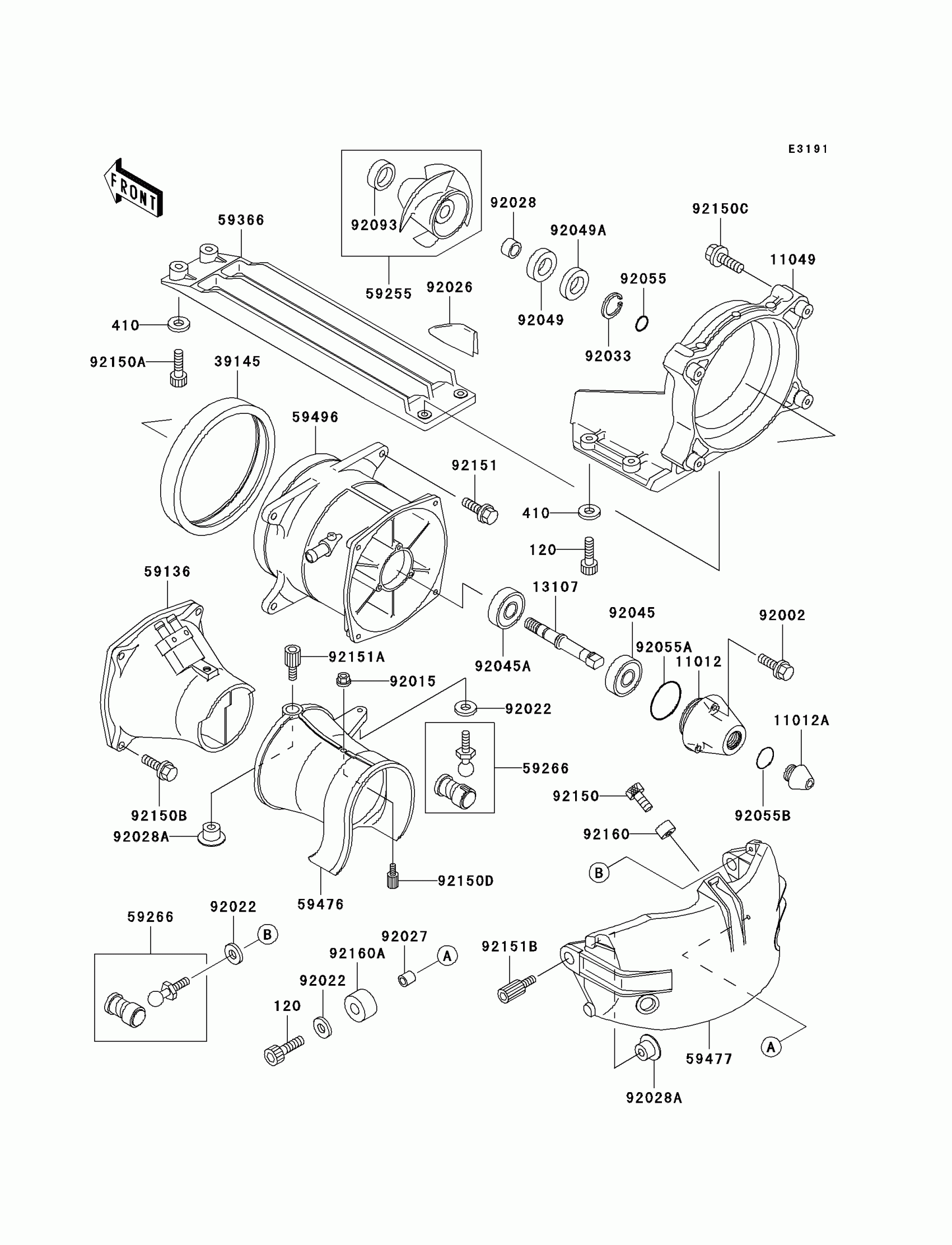

Kawasaki 1100 STX Jet Pump Diagram
#
120
BOLT-SOCKET,6X20
120R0620
$3.92
410
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
11012
CAP
11012-3785
$49.96
11012A
CAP
11012-3786
Unavailable
11049
BRACKET
11049-3759
Unavailable
13107
SHAFT,JETPUMP
13107-3752
$77.79
39145
TRIM-SEAL
39145-3742
$45.60
59136
NOZZLE-PUMP
59136-3734
Unavailable
59255
IMPELLER-COMP
59255-3711
$649.73
59266
JOINT-BALL
59266-3707
$66.16
59366
GRATE
59366-3712
$111.10
59476
NOZZLE-STRG
59476-3733
$144.10
59477
BUCKET-REVERSE
59477-3707
$503.66
59496
VANE-GUIDE
59496-3718
$386.08
92002
BOLT,6X30
92002-3726
$4.69
92015
NUT,6MM
92015-3767
$4.69
92022
WASHER
92022-567
$2.67
92026
SPACER
92026-3735
Unavailable
92027
COLLAR,6.2X10X10
92027-3705
$8.86
92028
BUSHING
92028-3756
$40.34
92028A
BUSHING
92028-3757
$8.81
92033
RING-SNAP
92033-3725
$21.80
92045
BEARING-BALL,62022RD
92045-3721
$19.27
92045A
BEARING-BALL,6303R-6
92045-3727
Unavailable
92049
SEAL-OIL,SCJ30X50X7
92049-3720
$40.70
92049A
SEAL-OIL,SCY30X50X7
92049-3721
$38.17
92055
RING-O,13X1.9
92055-1021
$7.62
92055A
RING-O
92055-3741
$3.32
92055B
RING-O
92055-3744
$2.91
92093
SEAL,JET PUMP
92093-3739
$15.50
92150
BOLT,SOCKET,6X10
92150-3759
$4.67
92150A
BOLT,SOCKET,6X18
92150-3775
$4.69
92150B
BOLT,8X35
92150-3792
$7.34
92150C
BOLT,FLANGED,8X30
92150-3803
$7.34
92150D
BOLT
92150-3808
$26.47
92151
BOLT,10X30
92151-3706
$6.57
92151A
BOLT
92151-3710
$18.04
92151B
BOLT
92151-3716
$18.04
92160
DAMPER
92160-3738
$14.36
92160A
DAMPER
92160-3739
$5.59
