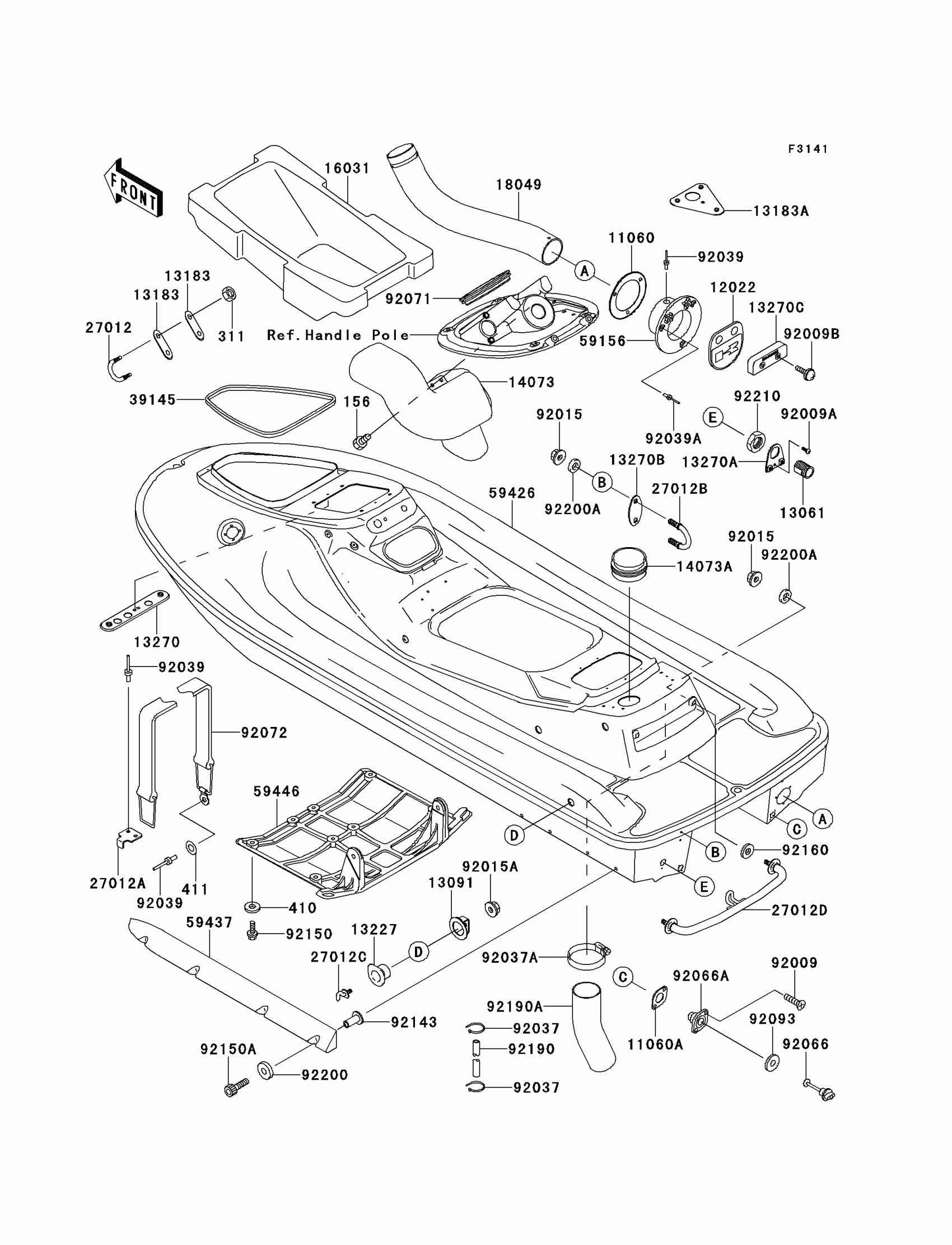

Kawasaki 1100 STX Hull Diagram

#

Description
Price

11060

GASKET,TAIL PIPE

11060-3765

Unavailable

11060A

GASKET

11060-3772

Unavailable

12022

VALVE-REED

12022-3706

$32.36

13061

BOSS

13061-3707

Unavailable

13091

HOLDER,CARGO NET HOOK

13091-3807

Unavailable

13183

PLATE

13183-3809

$5.61

13183A

PLATE,SEAT LOCK HOOK

13183-3820

Unavailable

13227

HOUSING,CARGO NET HOOK

13227-3706

Unavailable

13270

PLATE

13270-3809

Unavailable

13270A

PLATE

13270-3851

Unavailable

13270B

PLATE

13270-3860

$8.20

13270C

PLATE

13270-3867

$8.81

14073

DUCT,FR

14073-3757

Unavailable

14073A

DUCT,AIR INTAKE

14073-3762

$15.68

16031

FLOAT

16031-3840

$48.77

18049

PIPE-EXHAUST

18049-3757

Unavailable

27012

HOOK

27012-3761

$37.38

27012A

HOOK

27012-3787

$5.37

27012B

HOOK

27012-3797

$32.91

27012C

HOOK,CARGO NET

27012-3798

Unavailable

27012D

HOOK,TOWING,RR

27012-3800

Unavailable

39145

TRIM-SEAL,L=1412

39145-3748

$93.03

59156

PIPE-TAIL

59156-3712

Unavailable

59437

STABILIZER,F.RED

59437-3708-6L

Unavailable

59446

COVER-JET PUMP

59446-3731

Unavailable

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92009A

SCREW,TAPPING,4X14

92009-3762

$1.54

92009B

SCREW,6X15

92009-3830

$2.66

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92015A

NUT,6MM

92015-3767

$3.57

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-541

$7.79

92039

RIVET,4.8MM

92039-3719

$5.42

92039A

RIVET

92039-3741

$1.23

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92066A

PLUG,DRAIN

92066-3749

Unavailable

92071

GROMMET

92071-3812

$16.97

156

BOLT-WP,6X18

156R0618

$2.84

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,5MM

411S0500

$0.78

92072

BAND,314X18

92072-3814

$16.78

92093

SEAL

92093-3720

$2.75

92143

COLLAR

92143-3739

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X40

92150-3847

$4.24

92160

DAMPER

92160-1011

Unavailable

92190

TUBE,5.8X10.8X370

92190-3864

Unavailable

92190A

TUBE

92190-3963

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

92200A

WASHER

92200-3726

$7.49

92210

NUT,26MM

92210-3711

Unavailable

59426

HULL-COMP,J.WHITE

59426-3847-22

$3,030.55
