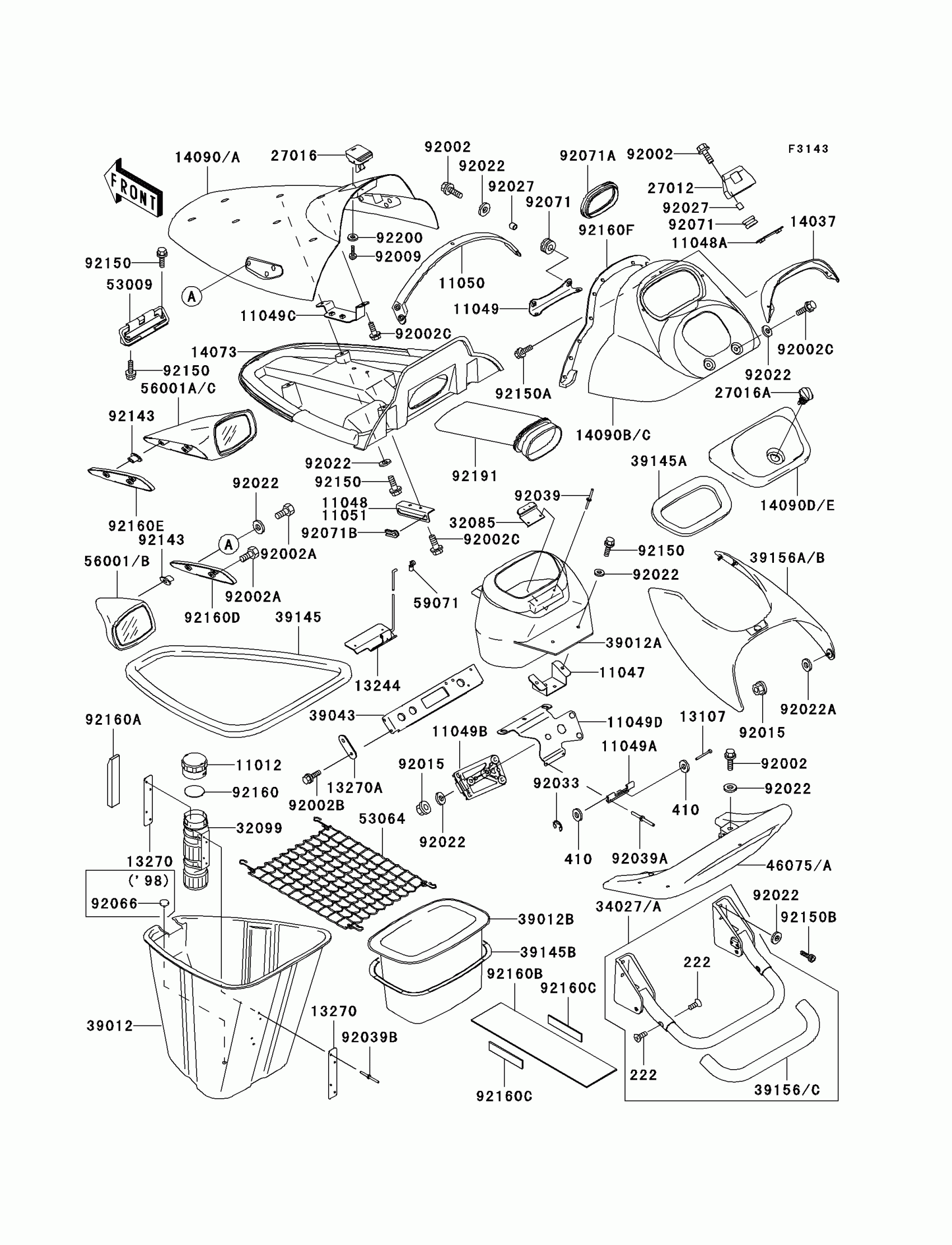

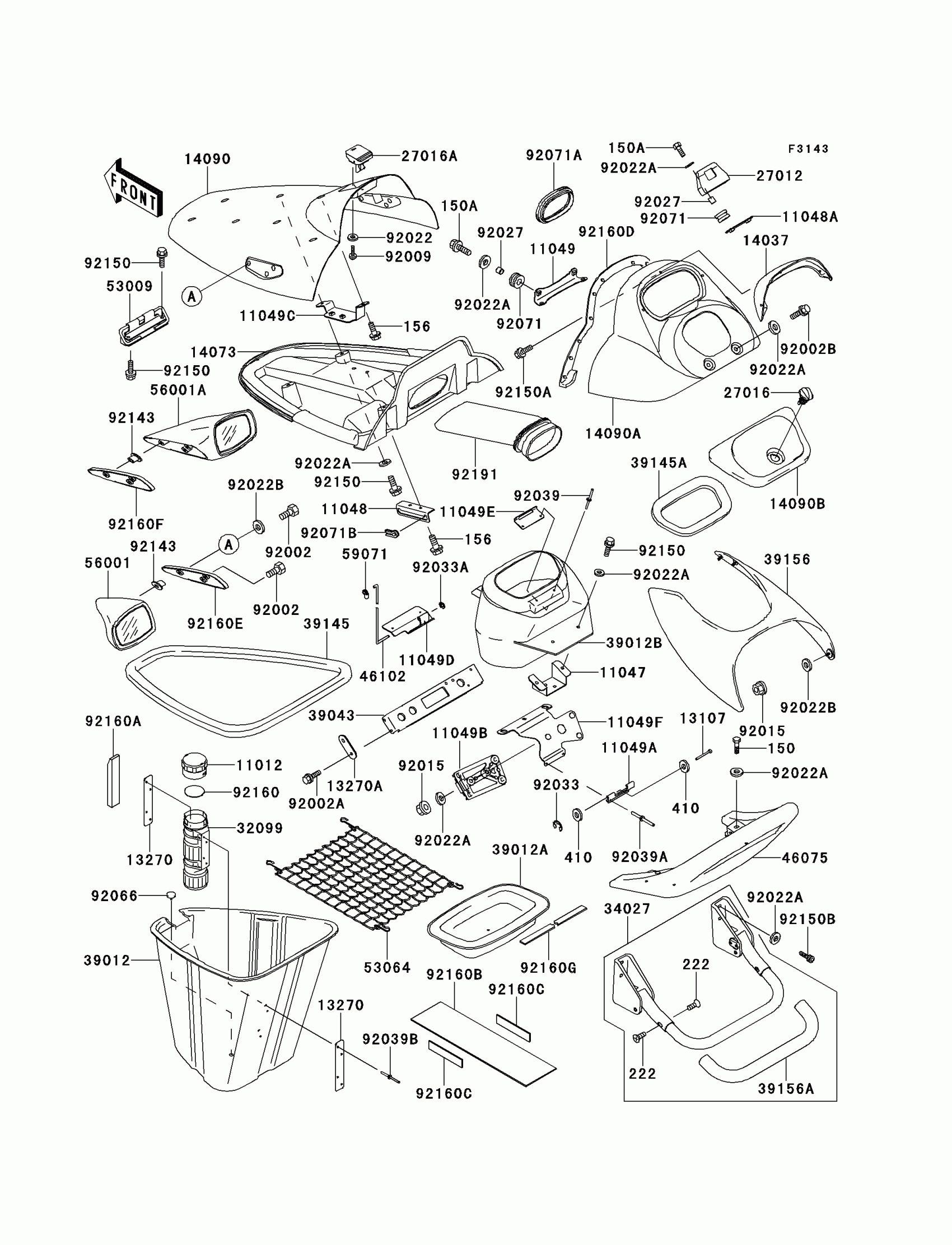

Kawasaki 1100 STX Hull Fittings Diagram

#

Description
Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$9.90

11047

BRACKET,FUEL FILTER

11047-3761

Unavailable

11048

BRACKET,HATCH COVER

11048-3777

Unavailable

11048A

BRACKET,HATCH COVER LOCK

11048-3778

Unavailable

11049

BRACKET,HANDLE COVER

11049-3716

Unavailable

11049A

BRACKET

11049-3717

$11.00

11049B

BRACKET

11049-3718

$56.49

11049C

BRACKET,HATCH COVER

11049-3736

Unavailable

11049D

BRACKET,HATCH COVER

11049-3737

Unavailable

11049E

BRACKET,CENTER STORAGE

11049-3739

Unavailable

11049F

BRACKET

11049-3743

Unavailable

13107

SHAFT,3X32

13107-3745

$1.81

13270

PLATE,FIRE EXTINGUISHER

13270-3729

Unavailable

13270A

PLATE

13270-3835

Unavailable

14037

SCREEN,F.BLACK

14037-3707-6Z

$33.97

14073

DUCT,FR

14073-3758

$138.44

14090

COVER,HATCH,P.C.GRAY

14090-3769-VK

Unavailable

14090A

COVER,HANDLE,P.C.GRAY

14090-3770-VK

Unavailable

14090B

COVER,CENTER STORAGE,P.C.GRAY

14090-3771-VK

Unavailable

27012

HOOK,HATCH COVER LOCK

27012-3803

$16.88

27016

LOCK-ASSY

27016-3733

Unavailable

27016A

LOCK-ASSY,HATCH COVER

27016-3737

$109.77

32099

CASE,FIRE EXTINGUISHER

32099-3769

$18.03

34027

STEP-ASSY

34027-3703

Unavailable

39012

CASE-STORAGE,FR

39012-3715

Unavailable

39012A

CASE-STORAGE

39012-3716

$9.41

39012B

CASE-STORAGE,CNT

39012-3717

Unavailable

39043

CROSSMEMBER-COMP

39043-3701

$104.42

39145

TRIM-SEAL,L=1380

39145-3746

$79.19

39145A

TRIM-SEAL

39145-3751

Unavailable

39156

PAD,KNEE,GRAY

39156-3791-PS

Unavailable

39156A

PAD,STEP

39156-3798

$6.08

46075

GRIP,TAIL,F.RED

46075-3745-6L

Unavailable

46102

ROD,HATCH COVER STOPPER

46102-3725

Unavailable

53009

HINGE,HATCH COVER

53009-3723

$120.15

53064

NET-CARGO

53064-3701

Unavailable

56001

MIRROR-ASSY,LH,F.BLACK

56001-3709-6Z

$199.13

56001A

MIRROR-ASSY,RH,F.BLACK

56001-3710-6Z

$181.22

59071

JOINT

59071-3743

$5.97

150

BOLT-WS,6X22

150R0622

$4.15

150A

BOLT-WS,6X25

150R0625

$3.88

156

BOLT-WP,6X12

156R0612

$3.51

222

SCREW-CSK-RD-CROS

222R0612

$0.86

410

W-PLAIN-S,3MM

410S0300

$1.17

92002

BOLT,6X40

92002-3716

$3.79

92002A

BOLT,6X20

92002-3755

$3.57

92002B

BOLT,6X12

92002-3763

$3.57

92009

SCREW,5X16

92009-3789

$2.42

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER,5X16X1.5

92022-3041

$3.19

92022A

WASHER,6.5X20X1.5

92022-3710

$2.76

92022B

WASHER,6.2X20X2

92022-3714

$3.19

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92033

RING-SNAP,2MM

92033-3711

$1.17

92033A

RING-SNAP,E-TYPE,4MM

92033-3722

$2.63

92039

RIVET

92039-3712

$4.29

92039A

RIVET

92039-3748

$1.59

92039B

RIVET

92039-3755

$5.71

92066

PLUG

92066-3752

$3.14

92071

GROMMET

92071-3716

$4.39

92071A

GROMMET

92071-3812

$16.97

92071B

GROMMET

92071-3816

$4.51

92143

COLLAR

92143-3763

$8.51

92150

BOLT,6X18

92150-3729

$3.57

92150A

BOLT,5X12

92150-3760

$8.61

92150B

BOLT,SOCKET,6X18

92150-3775

$3.57

92160

DAMPER

92160-3814

$7.76

92160A

DAMPER

92160-3821

$8.63

92160B

DAMPER

92160-3839

$20.73

92160C

DAMPER

92160-3840

$5.36

92160D

DAMPER,HATCH COVER

92160-3867

Unavailable

92160E

DAMPER,MIRROR,LH,F.BLACK

92160-3869-6Z

$43.33

92160F

DAMPER,MIRROR,RH,F.BLACK

92160-3870-6Z

Unavailable

92160G

DAMPER

92160-3878

Unavailable

92191

TUBE

92191-3742

$48.42
