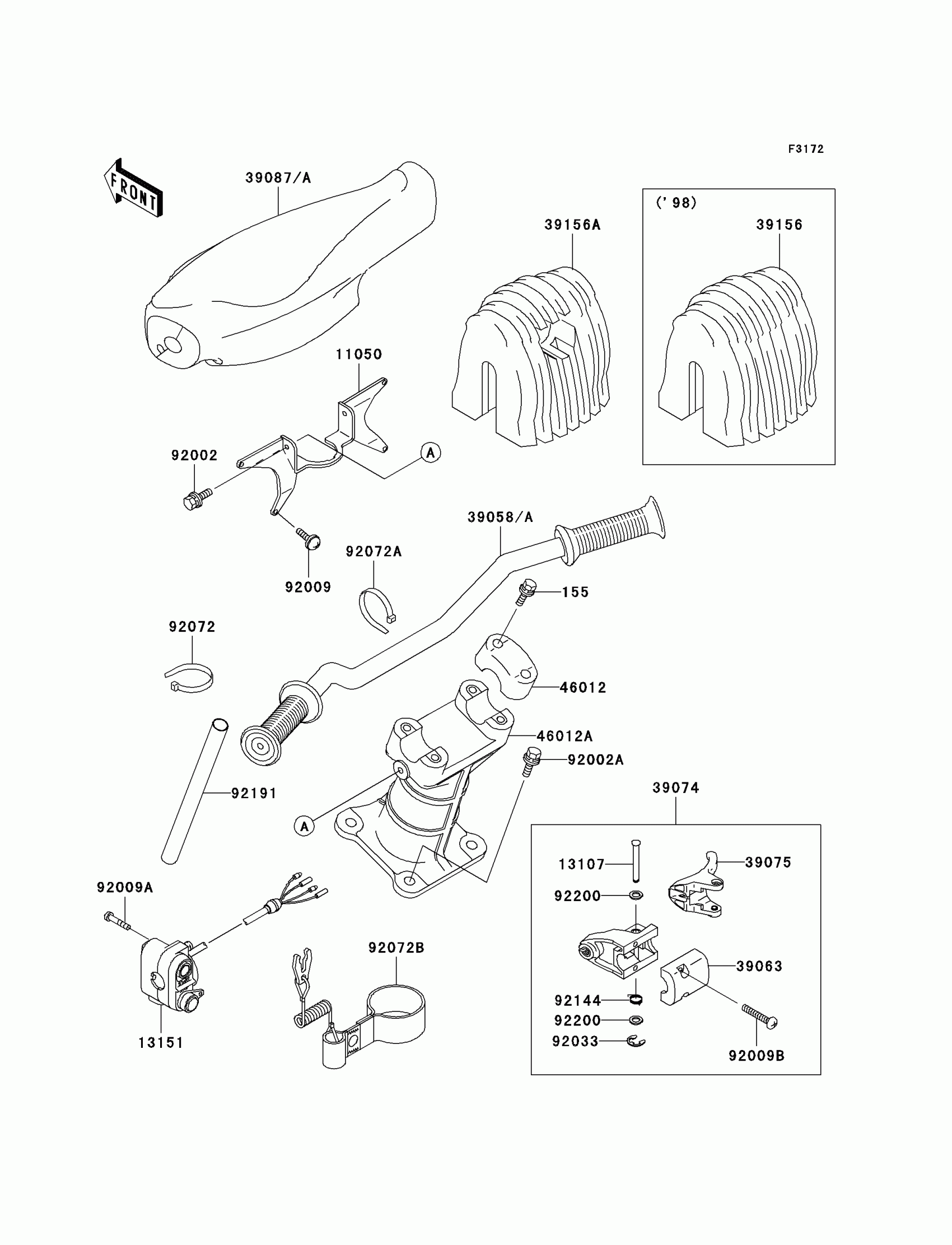

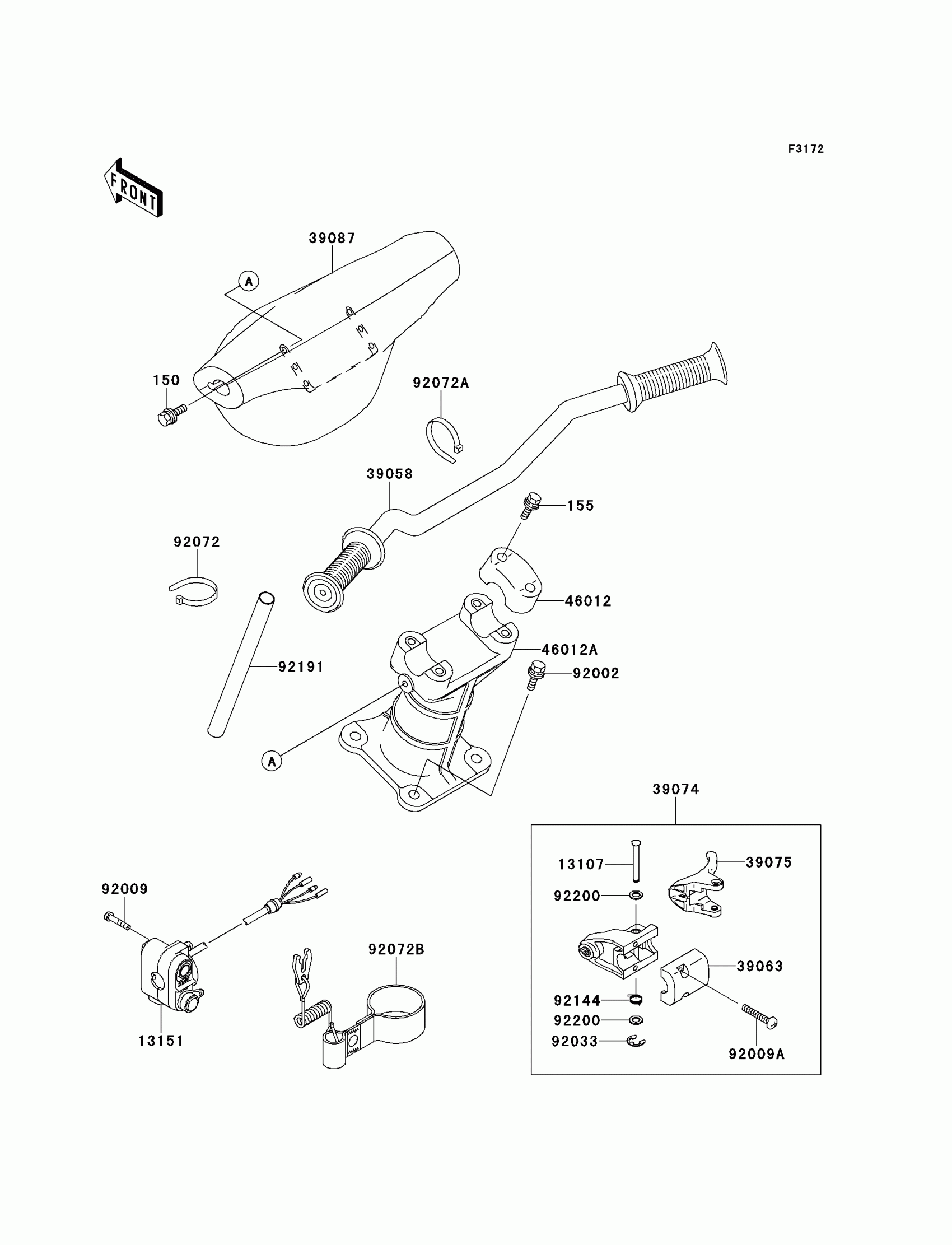

Kawasaki 1100 STX Handlebar Diagram
#
Description
Price
155
BOLT-WSP-SMALL,8X35
155R0835
$8.19
11050
BRACKET,HANDLE PAD
11050-3766
$30.82
13107
SHAFT
13107-3740
$8.58
13151
SWITCH-COMP,STOP&START
13151-3722
$420.13
39058A
HANDLE-COMP,F.RED
39058-3723-6L
$240.75
39063
HOUSING-CONTROL
39063-3722
Unavailable
39074
LEVER-ASSY-THROTTLE
39074-3719
$111.92
39075
LEVER-THROTTLE
39075-3714
$41.51
39087A
PAD-HANDLE,F.BLACK
39087-3727-6Z
$172.01
39156A
PAD,HANDLE,INNER
39156-3821
$10.78
46012
HOLDER-HANDLE,UPP
46012-3720
$16.69
46012A
HOLDER-HANDLE,LWR
46012-3722
$249.86
92002
BOLT,6X12
92002-3763
$4.69
92002A
BOLT,8X25
92002-3774
$7.91
92009
SCREW,6X20
92009-3781
$6.57
92009A
SCREW,5X30
92009-3836
$4.18
92009B
SCREW,6X30
92009-3837
$4.69
92033
RING-SNAP
92033-3723
$3.29
92072
BAND,L=292.1
92072-3509
Unavailable
92072A
BAND,L=201
92072-3778
$1.84
92072B
BAND,TETHER SWITCH
92072-3816
Unavailable
92144
SPRING
92144-3749
$4.26
92191
TUBE,22X24X200
92191-3792
$30.46
92200
WASHER
92200-3738
$3.32
