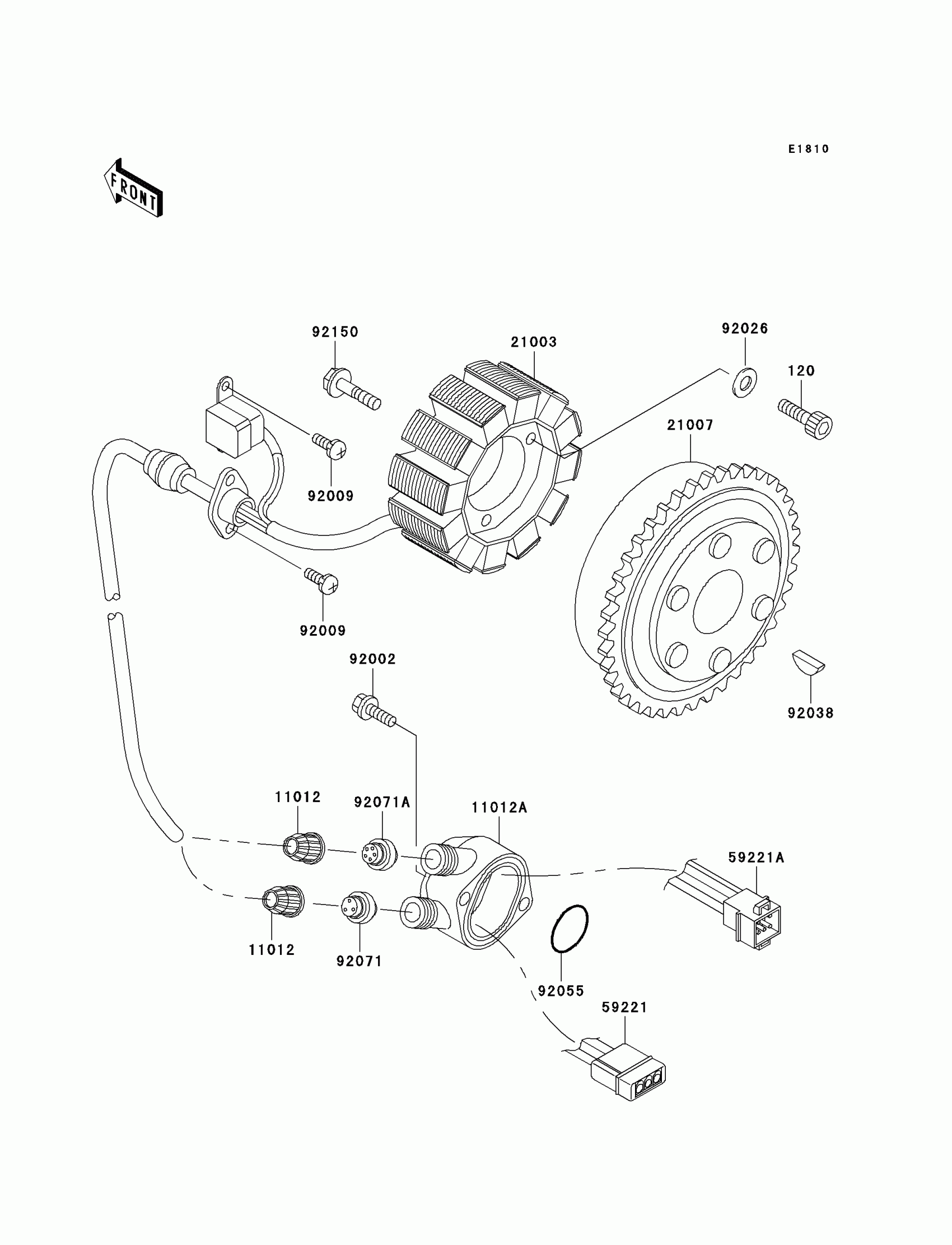

Kawasaki 1100 STX Generator(JT1100-B1) Diagram

Description

Price

120

BOLT-SOCKET,6X30

120P0630

$5.59

11012

CAP

11012-3005

$5.54

11012A

CAP,ELECTRIC CASE

11012-3761

$18.04

21003

STATOR

21003-3730

$891.79

21007

ROTOR,MAGNETO

21007-3722

$809.26

59221

CONNECTOR-CORD

59221-3703

$8.29

59221A

CONNECTOR-CORD

59221-506

$11.17

92002

BOLT,6X35

92002-3715

$6.61

92009

SCREW,5X12

92009-1296

$3.92

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92038

KEY,WOODRUFF

92038-001

$4.96

92055

RING-O

92055-3706

$4.45

92071

GROMMET

92071-3784

$6.55

92071A

GROMMET

92071-3804

$3.89

92150

BOLT

92150-3843

$19.88
