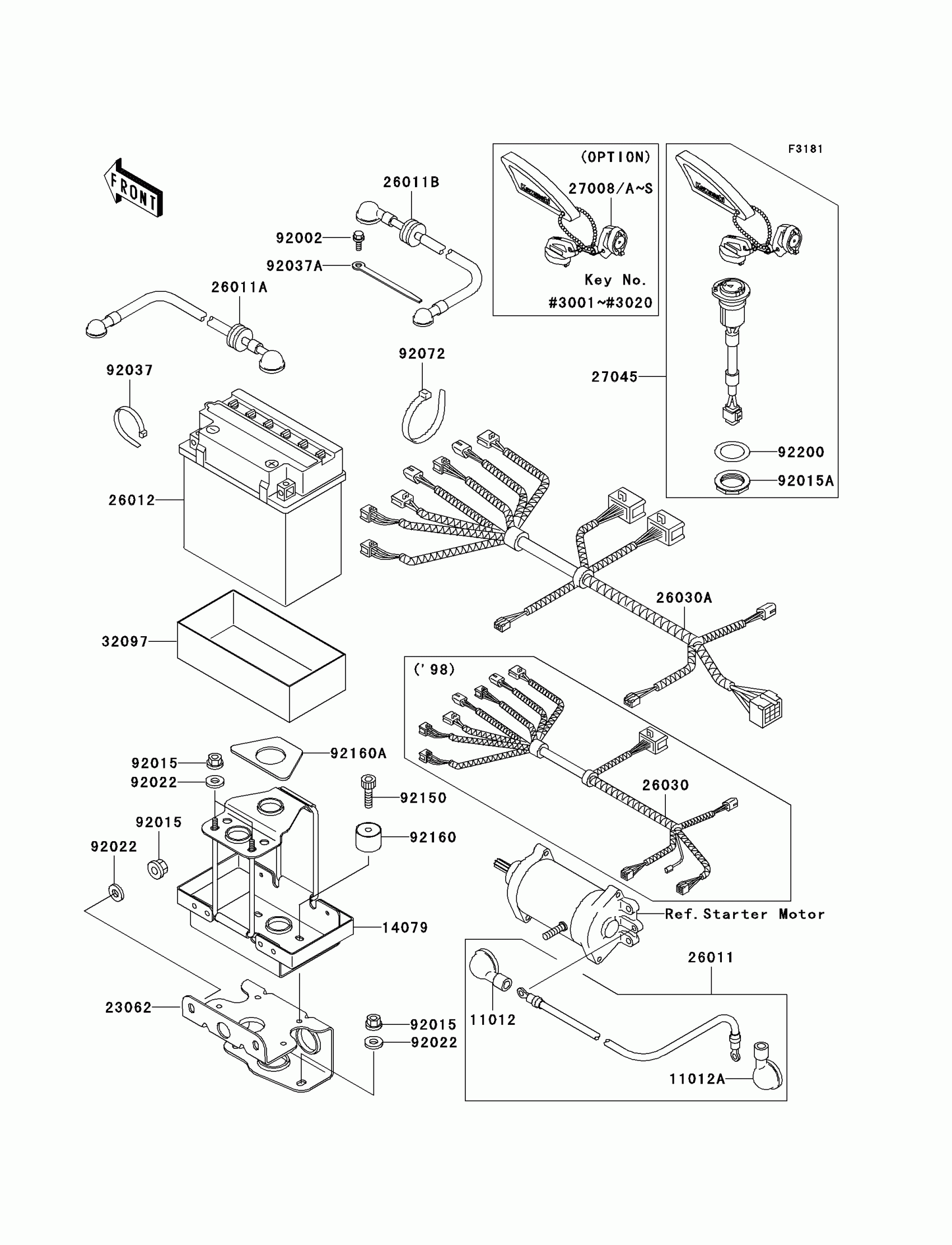

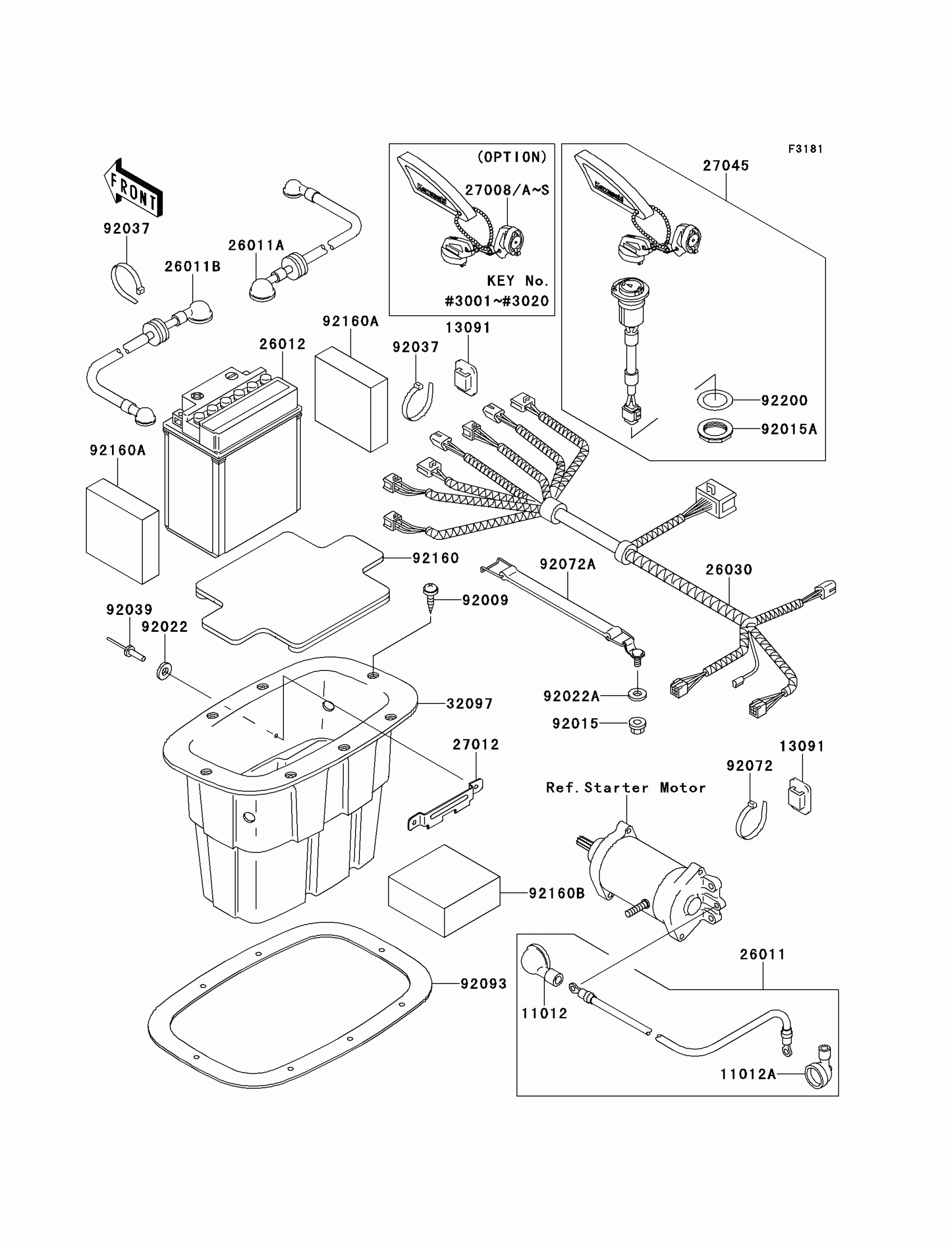

Kawasaki 1100 STX Electrical Equipment Diagram

#

Description
Price

11012

CAP

11012-3004

$7.55

11012A

CAP,LEAD WIRE

11012-3726

$7.84

13091

HOLDER,BAND

13091-3764

$5.17

26011

WIRE-LEAD,RELAY-STARTER

26011-3797

$65.55

26011A

WIRE-LEAD,BATTERY(-)-STARTER

26011-3843

Unavailable

26011B

WIRE-LEAD,BATTERY(+)-RELAY

26011-3844

$53.55

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3725

$148.91

26030

HARNESS,MAIN

26030-3707

$383.75

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$72.13

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

$72.13

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

$72.13

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$72.13

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$72.13

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

$72.13

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

$72.13

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$72.13

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$72.13

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

$72.13

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$72.13

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$72.13

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$72.13

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

$72.13

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

$72.13

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$72.13

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

$72.13

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

$72.13

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$72.13

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

$72.13

27012

HOOK

27012-3796

Unavailable

27045

SWITCH-ASSY,MAIN

27045-3716

$339.58

32097

CASE-BATTERY

32097-3706

Unavailable

92009

SCREW,TAPPING,5X20

92009-3716

$3.65

92015

NUT,6MM

92015-3767

$4.69

92015A

NUT

92015-3848

$5.52

92022

WASHER,5X16X1.5

92022-3041

$4.18

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92037

CLAMP

92037-1173

$3.49

92039

RIVET

92039-3714

$0.95

92072

BAND,L=201

92072-3778

$1.84

92072A

BAND,BATTERY

92072-3810

$28.76

92093

SEAL,BATTERY CASE

92093-3750

Unavailable

92160

DAMPER,BATTERY

92160-3877

Unavailable

92160A

DAMPER

92160-3889

Unavailable

92160B

DAMPER

92160-3890

Unavailable

92200

WASHER

92200-3736

$3.32
