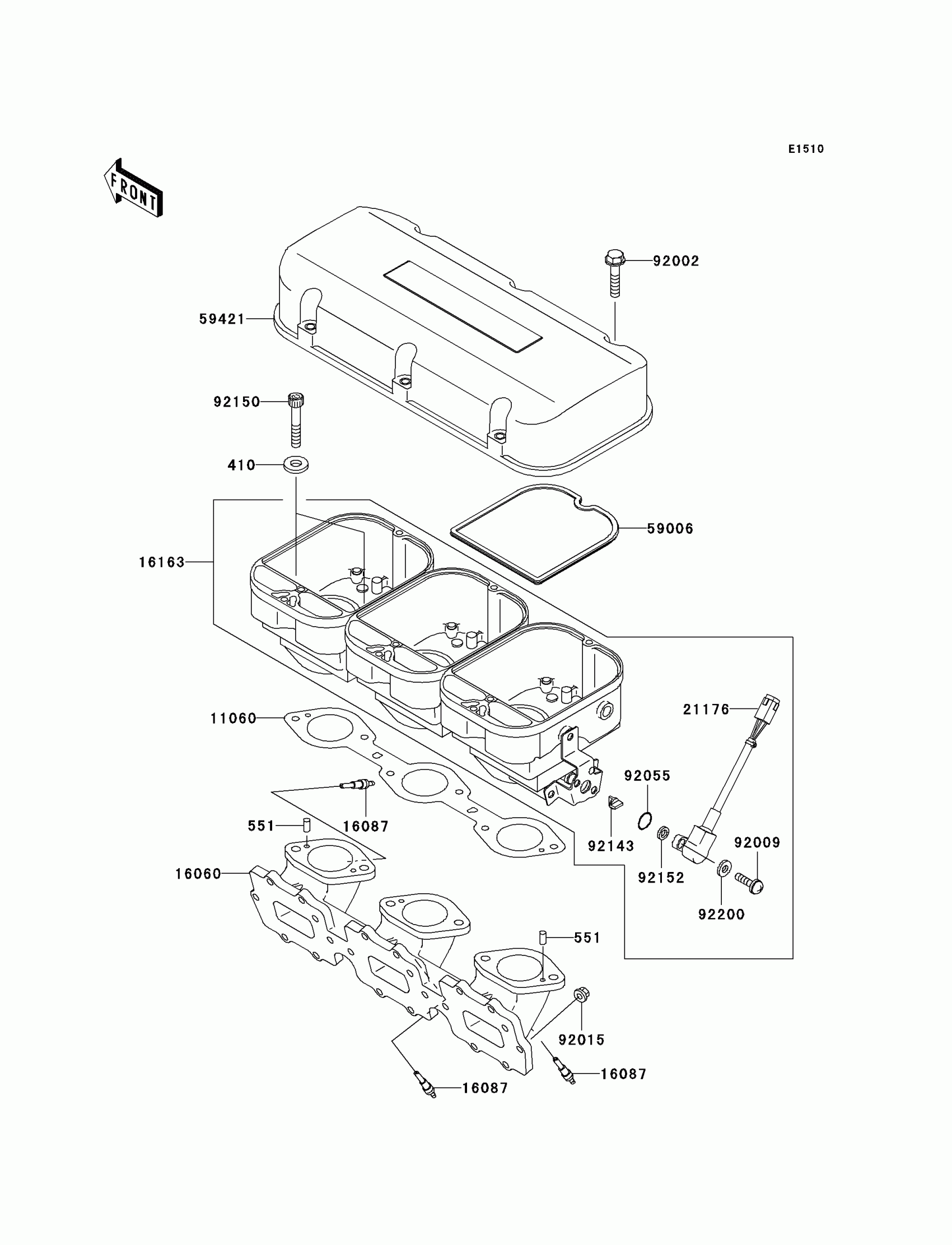

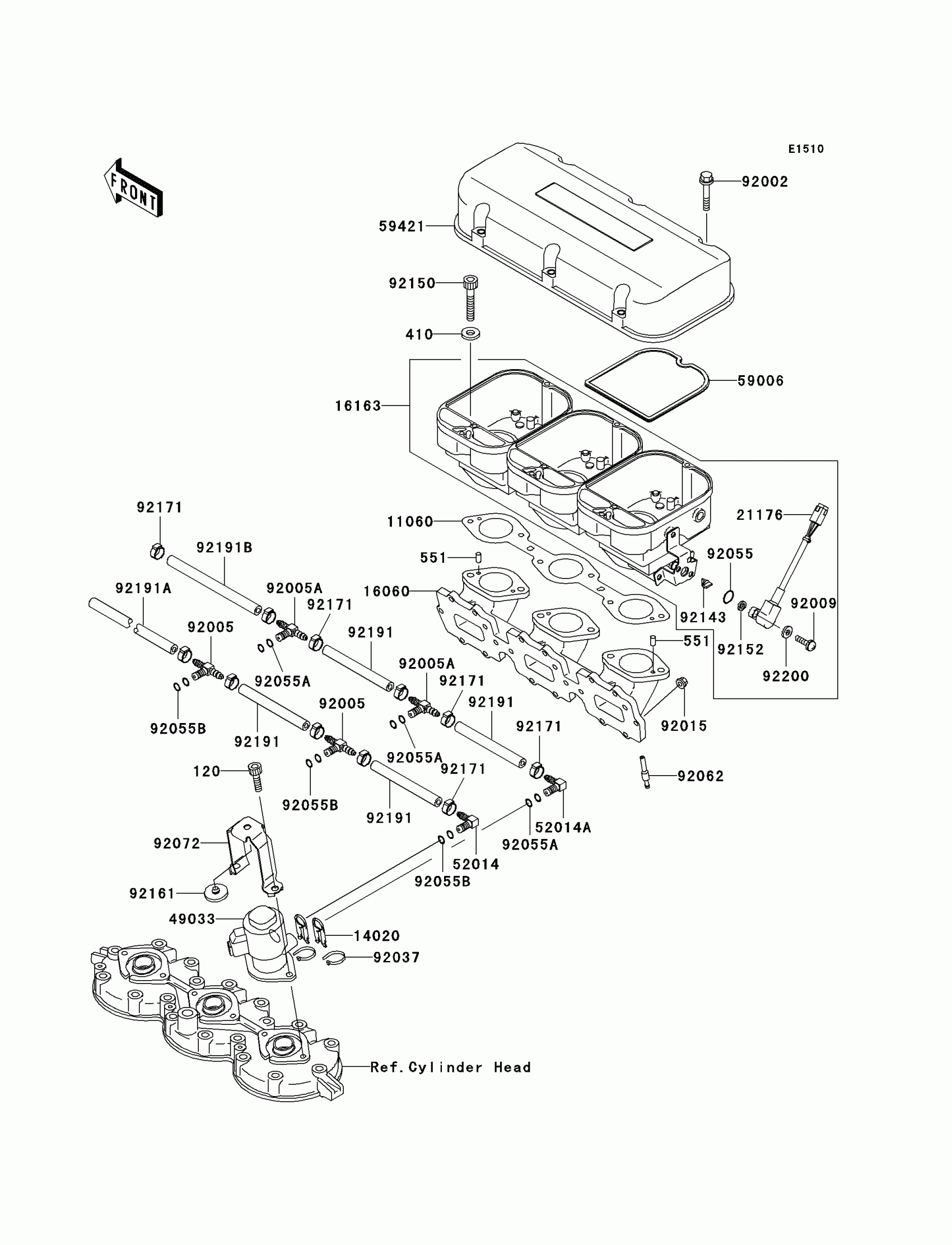

Kawasaki 1100 STX D.I. Throttle Diagram

#

Description
Price

120

BOLT-SOCKET

120Z0820

$4.88

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

551

PIN-DOWEL

551R0408

$5.38

11060

GASKET,CARBURETOR

11060-3753

$40.69

14020

RETAINER

14020-3705

$5.96

16060

PIPE-INTAKE

16060-3717

Unavailable

16163

THROTTLE-ASSY

16163-3705

$1,532.36

21176

SENSOR

21176-3743

Unavailable

49033

NOZZLE-INJECTION

49033-3704

Unavailable

52014

ELBOW,INLET

52014-3715

Unavailable

52014A

ELBOW,OUTLET

52014-3716

$13.41

59006

ARRESTER-FLAME

59006-3716

$58.00

59421

COVER-INTAKE

59421-3729

$80.06

92002

BOLT,6X30

92002-3726

$4.69

92005

FITTING,INLET

92005-3733

$9.74

92005A

FITTING,OUTLET

92005-3734

Unavailable

92009

SCREW,SENSOR

92009-3863

$2.75

92015

NUT,6MM

92015-3767

$4.69

92037

CLAMP

92037-1173

$3.49

92055

RING-O,SENSOR

92055-1574

$4.33

92055A

RING-O,OUTLET

92055-3752

$3.92

92055B

RING-O,INLET

92055-3753

$3.18

92062

NOZZLE

92062-3703

$15.43

92072

BAND,INJECTION

92072-3854

$11.67

92143

COLLAR

92143-1907

$9.50

92150

BOLT,SOCKET,6X35

92150-1887

$4.37

92152

COLLAR,SENSOR

92152-3721

$9.89

92161

DAMPER

92161-3718

$7.86

92171

CLAMP

92171-3706

$5.64

92191

TUBE,6X12X110

92191-3870

$20.82

92191A

TUBE,6X12X235

92191-3894

$23.38

92191B

TUBE,6X12X180

92191-3921

$34.32

92200

WASHER

92200-3782

$2.48
