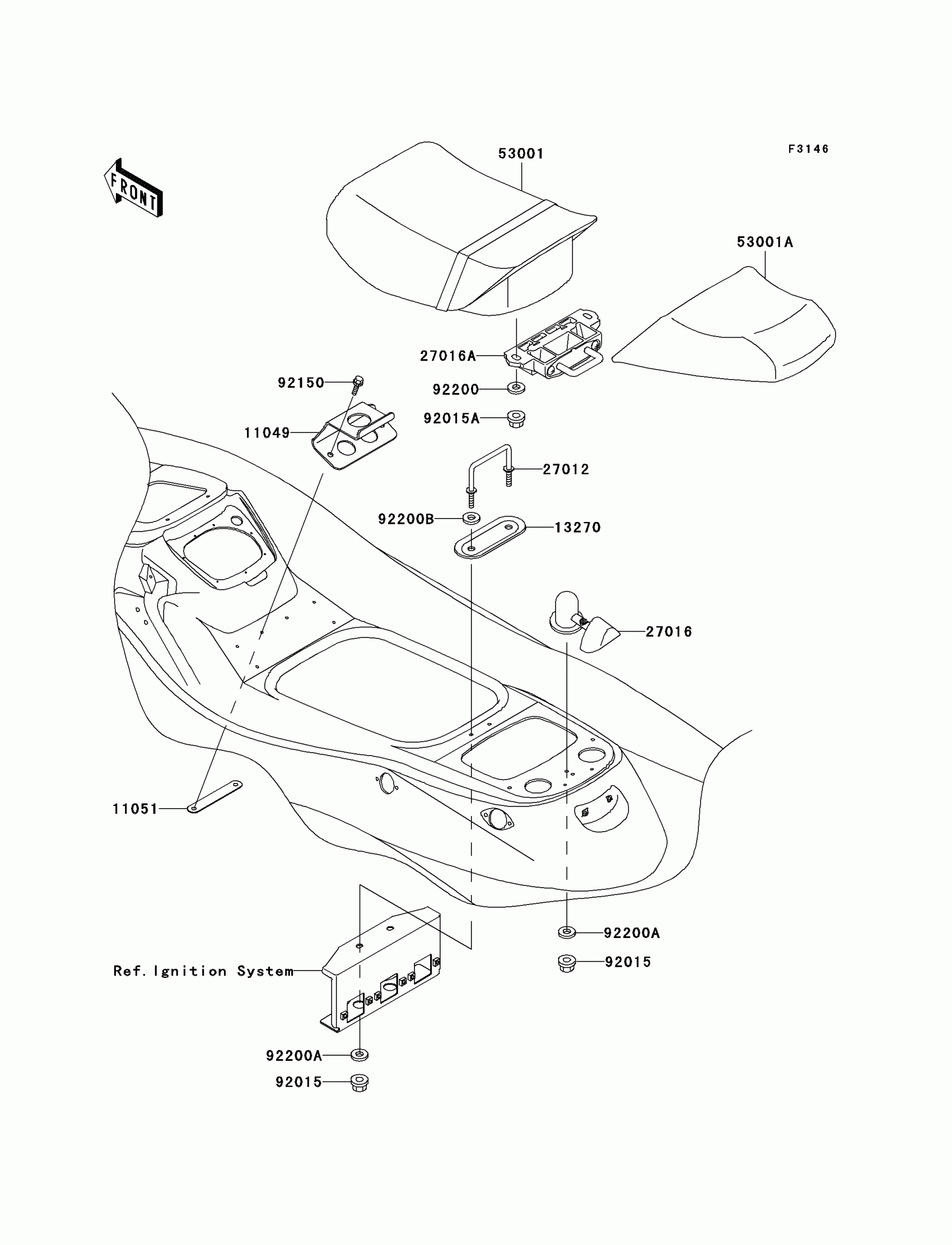

Kawasaki 1100 STX D.I. Seat Diagram

Description

Price

11049

BRACKET,SEAT

11049-3735

$50.89

11051

BRACKET

11051-3793

Unavailable

13270

PLATE,FRONT SEAT HOOK,OUTER

13270-3910

$9.31

27012

HOOK,FRONT SEAT LOCK

27012-3814

$35.98

27016

LOCK-ASSY,SEAT,F.BLACK

27016-3744-6Z

$122.80

27016A

LOCK-ASSY,FRONT SEAT

27016-3747

$66.32

53001

SEAT-ASSY,FR,F.SILVER

53001-3745-MN

$366.61

53001A

SEAT-ASSY,RR,D.R.RED

53001-3746-NS

Unavailable

92015

NUT,FLANGED,8MM

92015-3709

$5.05

92015A

NUT,6MM

92015-3767

$4.69

92150

BOLT,6X18

92150-3729

$4.69

92200

WASHER,6.5X20X1.5

92200-3715

$3.92

92200A

WASHER,8.5X25X1.5

92200-3717

$4.92

92200B

WASHER,8.5X18X3

92200-3761

$2.46
