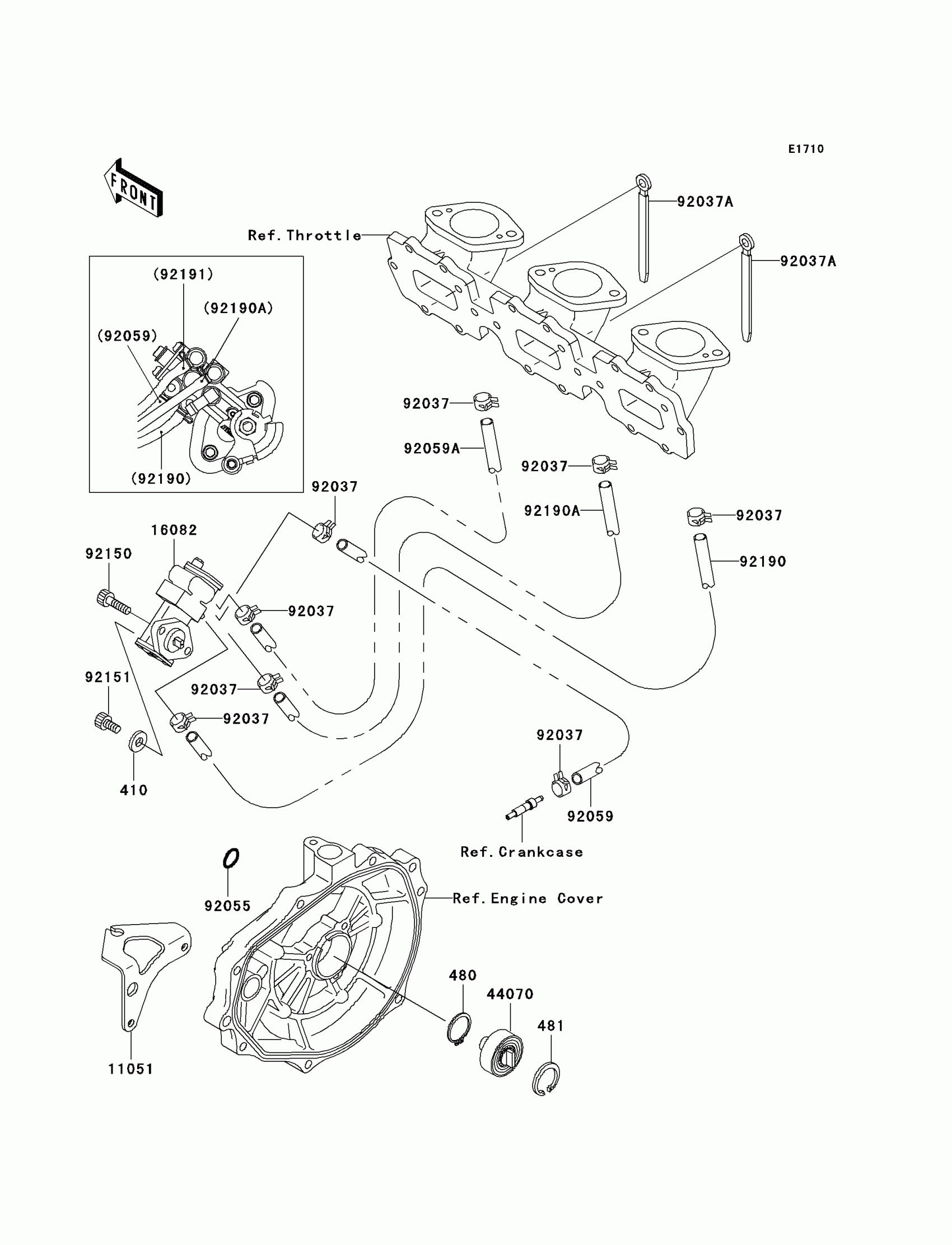

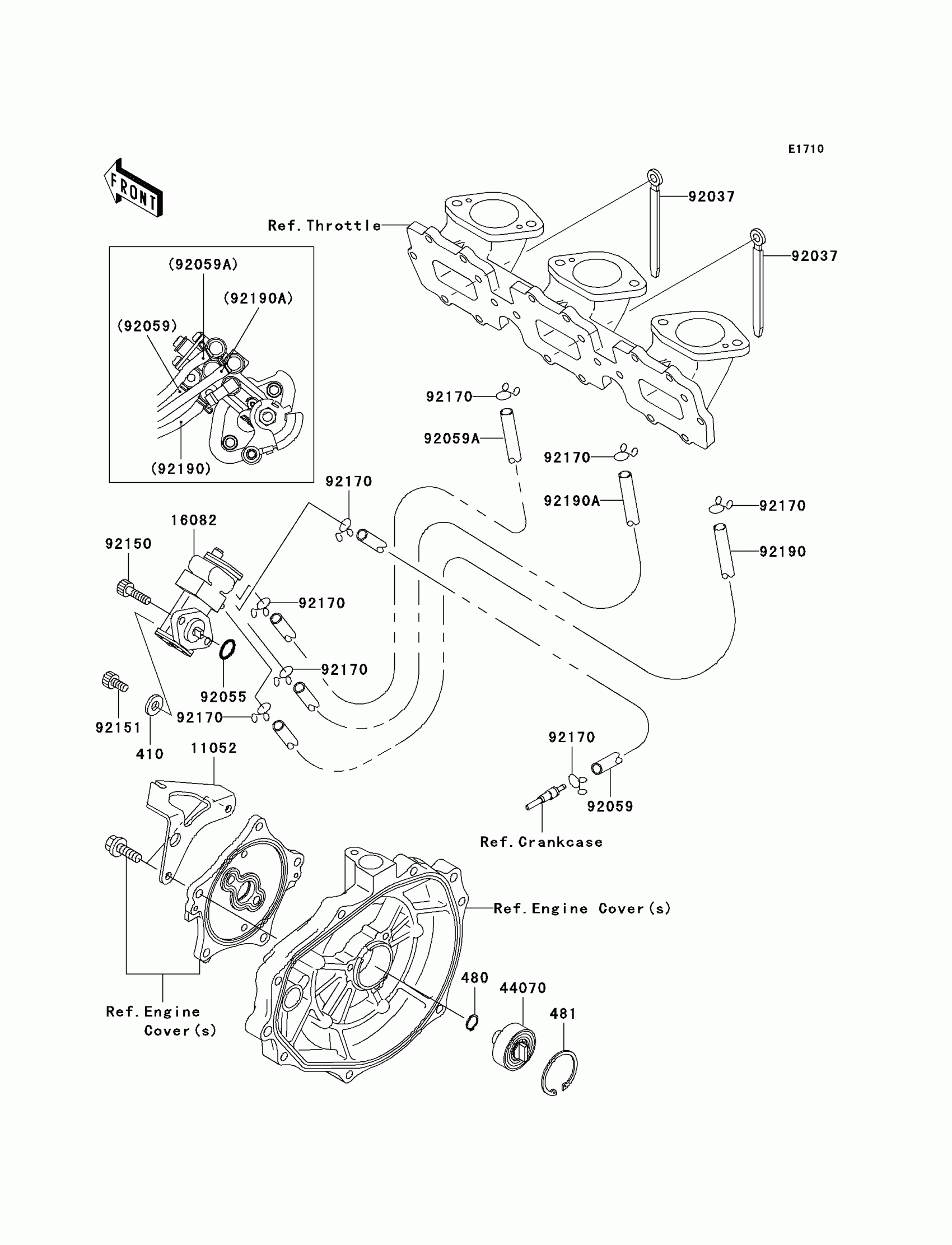

Kawasaki 1100 STX D.I. Oil Pump Diagram

Description

Price

410

W-PLAIN-S,5MM

410S0500

$1.20

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

11051

BRACKET,CABLE

11051-3779

$24.86

16082

PUMP-ASSY-OIL

16082-3730

Unavailable

44070

DAMPER-ASSY

44070-3702

$205.86

92037

CLAMP,TUBE

92037-1260

$1.95

92037A

CLAMP,L=100

92037-3736

$4.85

92055

RING-O,19.5X1.5

92055-055

$3.29

92059

TUBE

92059-3747

$8.22

92059A

TUBE,3X6X380

92059-3755

$24.24

92150

BOLT,SOCKET,6X25

92150-3830

Unavailable

92151

BOLT,SOCKET

92151-3772

Unavailable

92190

TUBE,3X6X545

92190-3907

$24.24

92190A

TUBE,3X6X420

92190-3945

$12.57
