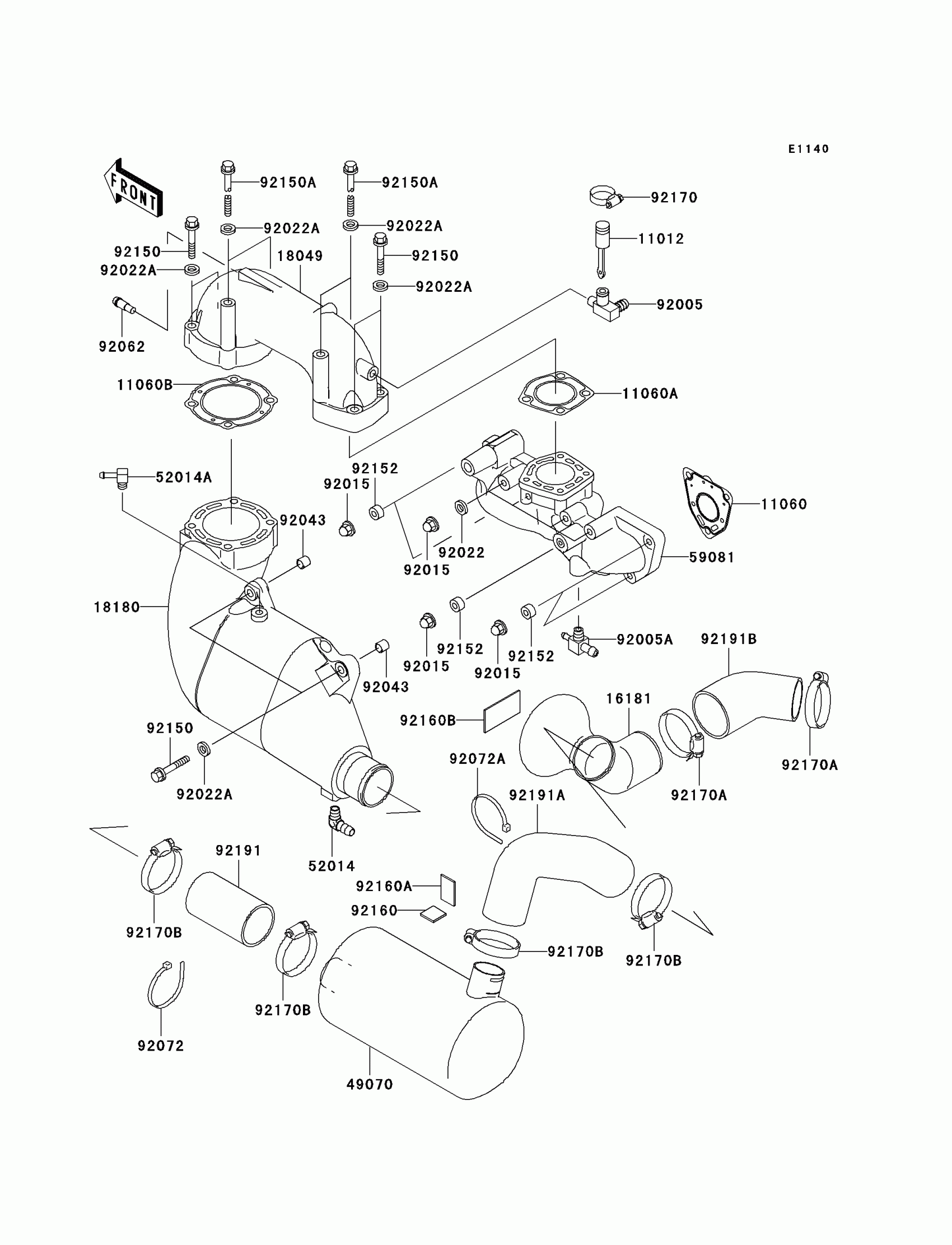

Kawasaki 1100 STX D.I. Muffler(s) Diagram

#

Description
Price

11012

CAP

11012-3757

Unavailable

11060

GASKET

11060-3767

$30.18

11060A

GASKET,MANIFOLD

11060-3768

$39.25

11060B

GASKET,MUFFLER

11060-3769

$40.03

16181

TANK-RESONATOR

16181-3702

Unavailable

18049

PIPE-EXHAUST

18049-3776

$229.82

18180

BODY-MUFFLER

18180-3719

$517.21

49070

MUFFLER-COMP

49070-3736

$353.07

52014

ELBOW

52014-3709

$25.19

52014A

ELBOW

52014-3718

$40.84

59081

MANIFOLD-EXHAUST

59081-3730

$635.51

92005

FITTING

92005-3715

$49.75

92005A

FITTING

92005-3720

$41.60

92015

NUT,CAP,8MM

92015-1371

$3.81

92022

WASHER,8.2X18X1.5

92022-1964

$3.19

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92043

PIN,11X14X12.3

92043-1266

$0.86

92062

NOZZLE

92062-3705

$6.73

92072

BAND,L=368.3

92072-3808

$1.20

92072A

BAND

92072-3857

$1.46

92150

BOLT,10X50

92150-3819

Unavailable

92150A

BOLT,10X125

92150-3825

$19.24

92152

COLLAR

92152-3726

$3.42

92160

DAMPER,25X25

92160-3864

$2.66

92160A

DAMPER,40X25

92160-3865

$4.61

92160B

DAMPER

92160-3913

$5.02

92170

CLAMP

92170-3729

Unavailable

92170A

CLAMP

92170-3760

$8.79

92170B

CLAMP

92170-3764

$9.95

92191

TUBE,MUFFLER-RESONATOR

92191-3914

$209.49

92191A

TUBE

92191-3922

Unavailable

92191B

TUBE,RESONATOR-TAILPIPE

92191-3923

$109.29
