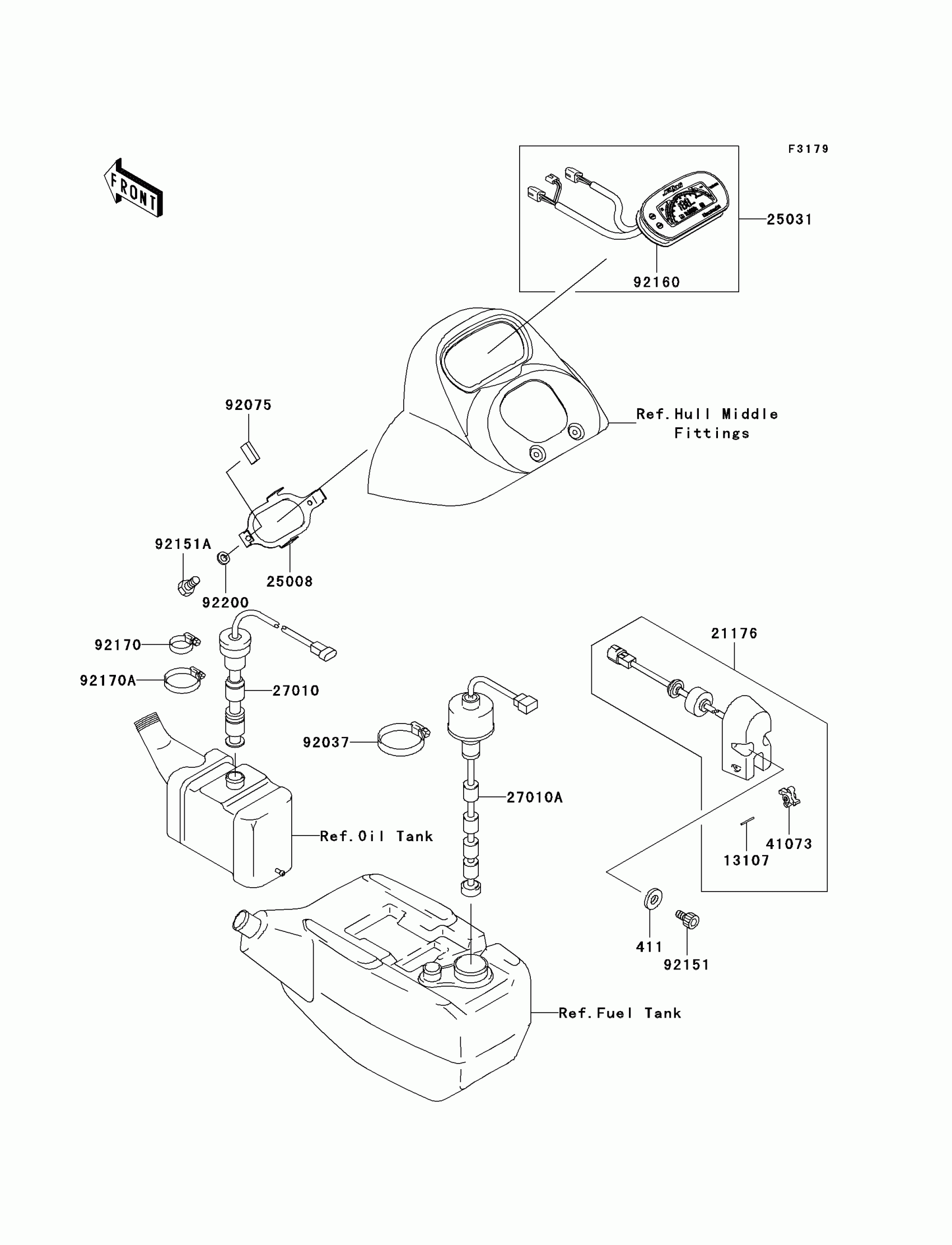

Kawasaki 1100 STX D.I. Meters Diagram

Description

Price

411

WASHER-PLAIN,6MM

411S0600

$1.49

13107

SHAFT

13107-3754

$4.90

21176

SENSOR,SPEEDOMETER

21176-3740

$233.27

25008

BRACKET-METER

25008-3709

$50.98

25031

METER-ASSY,MILE

25031-3713

$1,321.89

27010

SWITCH,OIL LEVEL

27010-3753

$162.43

27010A

SWITCH,FUEL LEVEL

27010-3770

Unavailable

41073

WHEEL-ASSY,PADDLE

41073-3701

$12.76

92037

CLAMP

92037-3009

$3.25

92072

BAND,L=201

92072-3778

$1.61

92075

DAMPER

92075-1446

$4.17

92151

BOLT,6X10

92151-3704

$3.35

92151A

BOLT,5X10

92151-3707

$2.66

92160

DAMPER,METER

92160-3881

$13.00

92170

CLAMP

92170-3718

$10.33

92170A

CLAMP

92170-3734

$15.02

92200

WASHER,5.9X16X1.5

92200-3714

$1.55
