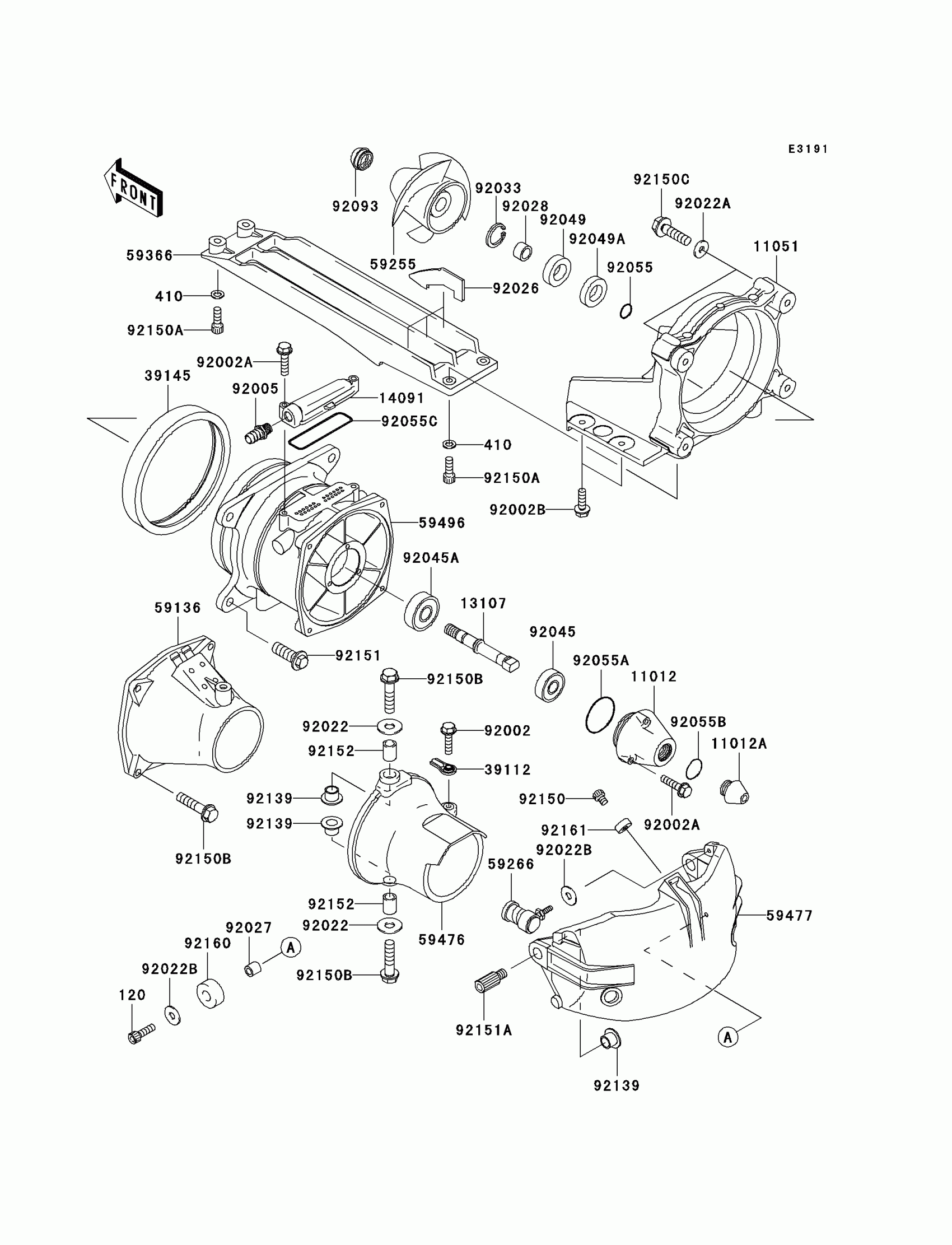

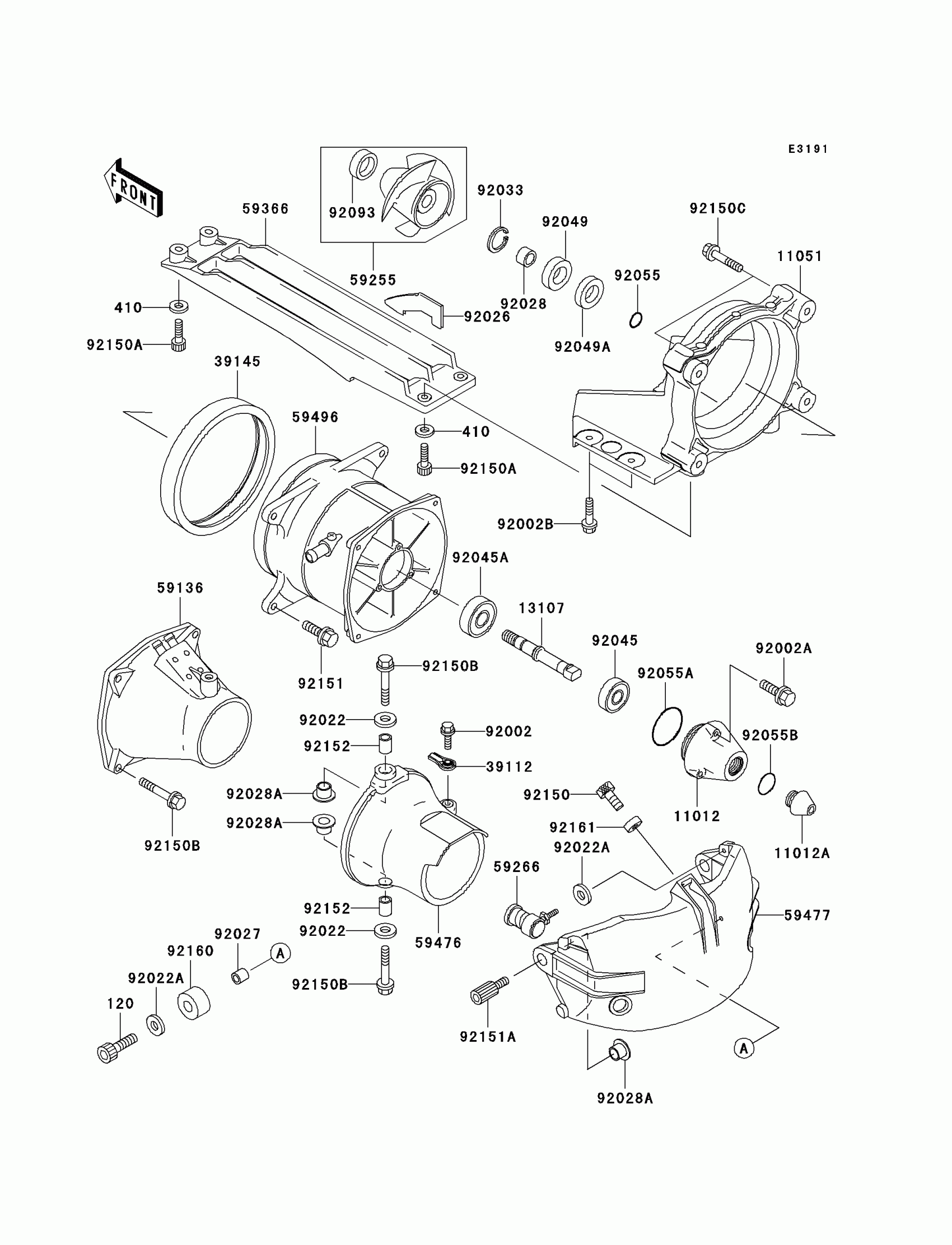

Kawasaki 1100 STX D.I. Jet Pump Diagram

#

Description
Price

11012

CAP

11012-3785

$49.96

11012A

CAP

11012-3786

Unavailable

11051

BRACKET

11051-3763

$516.54

13107

SHAFT,JETPUMP

13107-3752

$77.79

14091

COVER,VANE GUIDE

14091-3751

$30.84

39112

RODEND-TIE

39112-3703

$22.16

39145

TRIM-SEAL

39145-3742

$45.60

59136

NOZZLE-PUMP

59136-3747

$149.90

59255

IMPELLER-COMP

59255-3722

$544.71

59266

JOINT-BALL

59266-3707

$66.16

59366

GRATE

59366-3719

$191.46

59476

NOZZLE-STRG

59476-3742

$294.69

59477

BUCKET-REVERSE

59477-3707

$503.66

59496

VANE-GUIDE

59496-3737

Unavailable

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X20

92002-3755

$4.69

92005

FITTING

92005-3714

$18.72

92022

WASHER,PLAIN

92022-3026

$3.60

92022A

WASHER,8.4X23X2.5

92022-3744

$4.18

92022B

WASHER

92022-567

$2.67

92026

SPACER

92026-3742

$14.36

92027

COLLAR,6.2X10X10

92027-3705

$8.86

92028

BUSHING

92028-3756

$40.34

92033

RING-SNAP

92033-3725

$21.80

92045

BEARING-BALL,62022RD

92045-3721

$19.27

92045A

BEARING-BALL,6303R-6

92045-3727

Unavailable

92049

SEAL-OIL,SCJ30X50X7

92049-3720

$40.70

92049A

SEAL-OIL,SCY30X50X7

92049-3721

$38.17

92055

RING-O,13.0X1.9

92055-1011

$7.62

92055A

RING-O

92055-3741

$3.32

92055B

RING-O

92055-3744

$2.91

92055C

RING-O,70.2X74.0X1.90

92055-3765

Unavailable

92093

SEAL

92093-3749

$4.96

92139

BUSHING

92139-3701

Unavailable

92150

BOLT,SOCKET,6X10

92150-3759

$4.67

92150A

BOLT,SOCKET,6X18

92150-3775

$4.69

92150B

BOLT,8X35

92150-3792

$7.34

92150C

BOLT,FLANGED,8X30

92150-3803

$7.34

92151

BOLT,10X30

92151-3706

$6.57

120

BOLT-SOCKET,6X20

120R0620

$3.92

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.78

92151A

BOLT

92151-3716

$18.04

92152

COLLAR,8.2X11.8X15

92152-3703

$7.68

92160

DAMPER

92160-3739

$5.59

92161

DAMPER

92161-3717

$16.45
