Ignition System

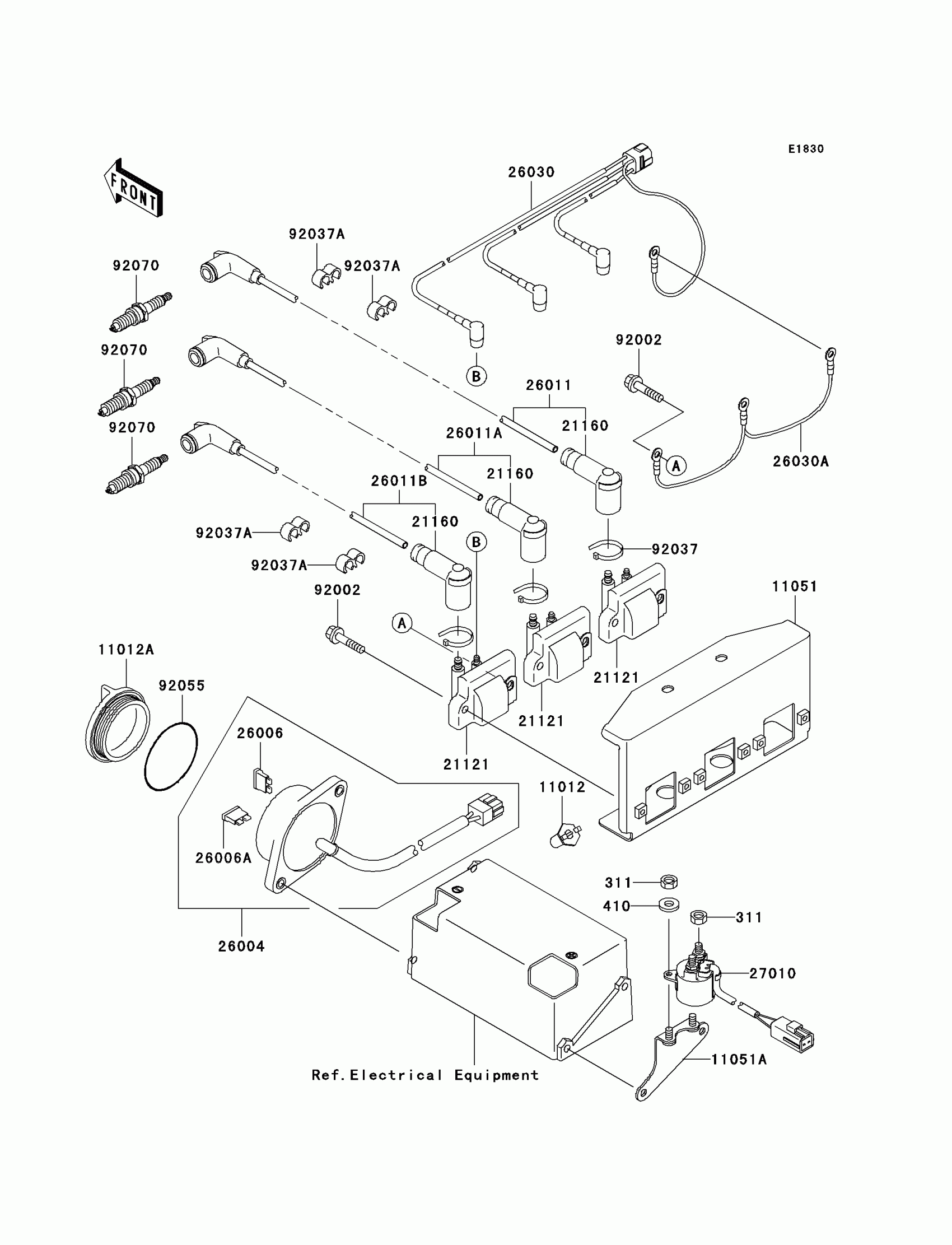

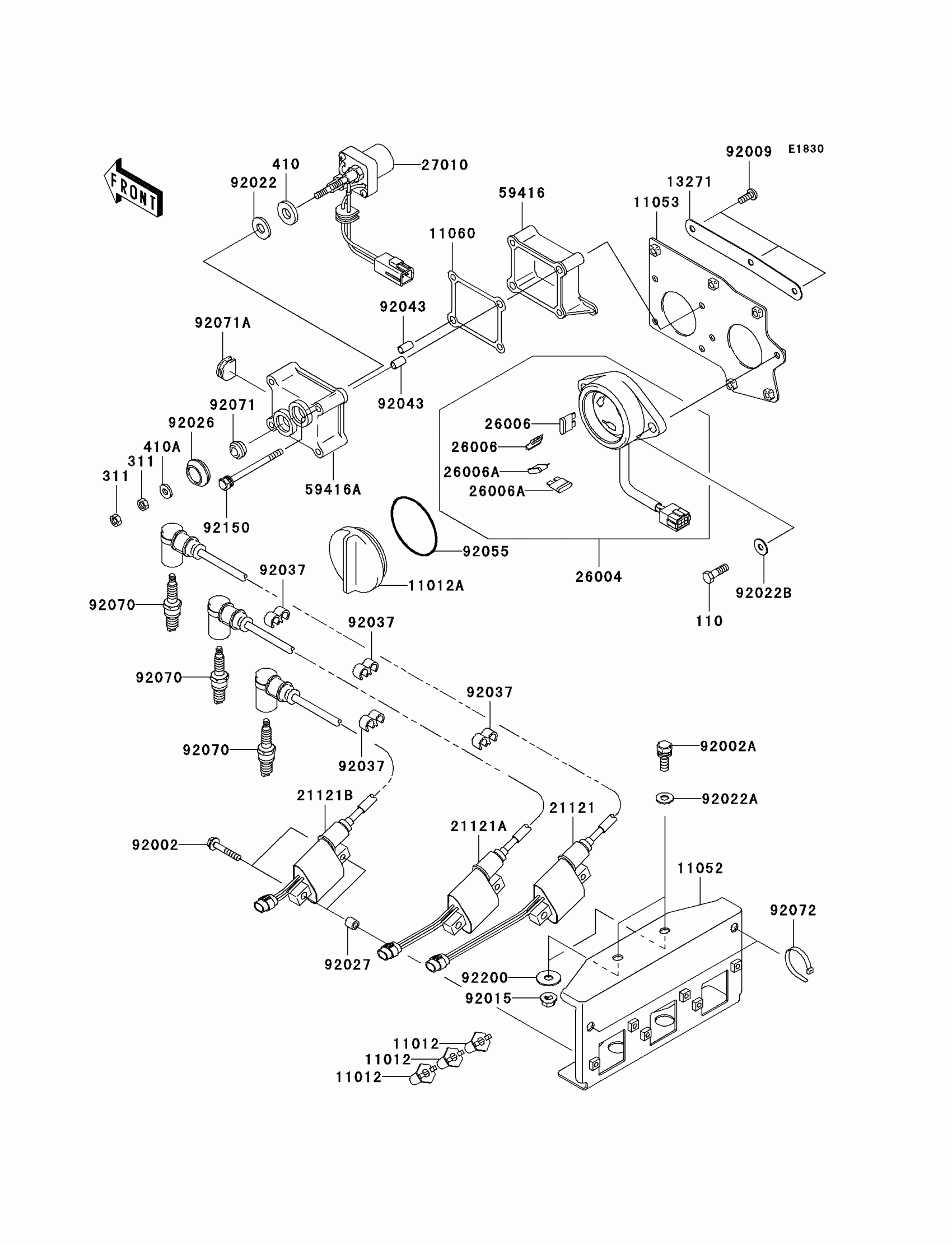

Kawasaki 1100 STX D.I. Ignition System Diagram
#
110
BOLT,6X20
110R0620
$5.31
311
NUT-HEX,6MM
311R0600
$0.70
410
WASHER PLAIN 10MM
410B1000
$0.58
410A
WASHER-PLAIN-SMALL,6MM
410S0600
$0.78
11012
CAP,HOLDER
11012-3768
$7.22
11012A
CAP
11012-3791
$12.48
11052
BRACKET
11052-3753
$58.29
11053
BRACKET
11053-3721
$31.93
11060
GASKET
11060-3709
$13.41
13271
PLATE
13271-3842
$6.82
21121
COIL-IGNITION,#1 BLACK
21121-3719
$317.50
21121A
COIL-IGNITION,#2 GREEN
21121-3720
$278.58
21121B
COIL-IGNITION,#3 WHITE
21121-3721
$262.75
26004
FUSE-ASSY
26004-3722
$138.51
26006
FUSE,BLADE,10A,RED
26006-1007
$4.96
26006A
FUSE,BLADE,20A,YELLOW
26006-1051
$4.96
27010
SWITCH
27010-3777
$164.03
59416
CASE-ELECTRIC
59416-3710
$57.71
59416A
CASE-ELECTRIC
59416-3711
$64.25
92002
BOLT,6X35
92002-3715
$6.61
92002A
BOLT,8X25
92002-3774
$7.91
92009
SCREW,6X15
92009-3830
$3.32
92015
NUT,FLANGED,8MM
92015-3709
$5.05
92022
WASHER
92022-3035
$3.52
92022A
WASHER,8.2X18X1.5
92022-3743
$4.22
92022B
WASHER
92022-567
$2.67
92026
SPACER
92026-3703
$4.69
92027
COLLAR,6.2X10X10
92027-3705
$8.86
92037
CLAMP,HOSE
92037-1603
$5.00
92043
PIN
92043-3715
$7.34
92055
RING-O
92055-1292
$8.42
92070
PLUG-SPARK,PZFR7G-G(NGK),SOLID
92070-3705
$16.91
92071
GROMMET
92071-3004
$3.99
92071A
GROMMET
92071-3837
$3.23
92072
BAND,L=203.2
92072-3867
$1.84
92150
BOLT,6X80
92150-3711
$13.04
92200
WASHER,8.5X25X1.5
92200-3717
$4.92
