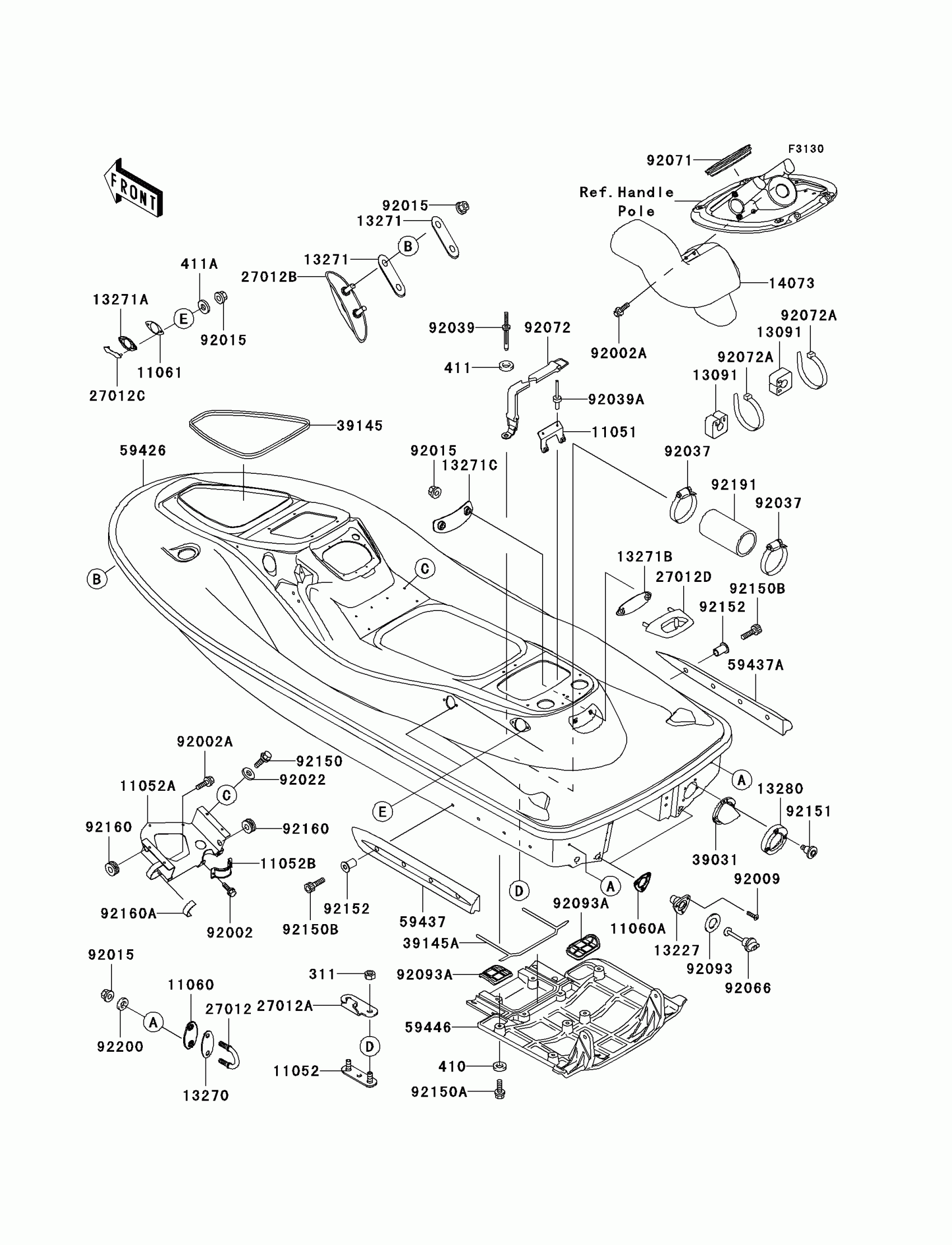

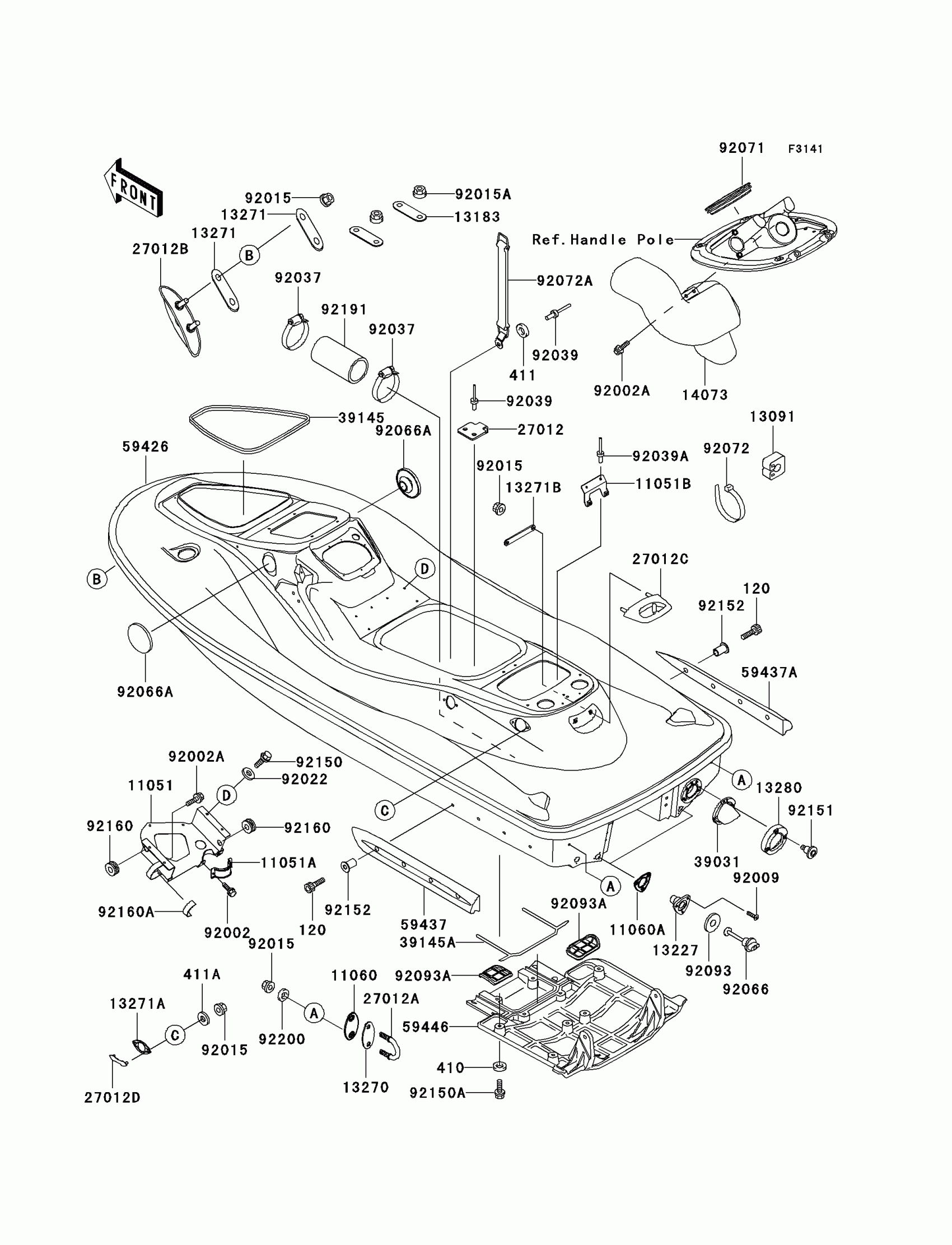

Kawasaki 1100 STX D.I. Hull Diagram

#

Description
Price

11051

BRACKET,EMM&CONDENSOR

11051-3734

Unavailable

11051A

BRACKET,FILTER

11051-3801

Unavailable

11051B

BRACKET,BREATHER-BILGE

11051-3802

$11.97

11060

GASKET,U HOOK,RR

11060-3800

$5.41

11060A

GASKET,DRAIN PLUG

11060-3801

$4.96

13091

HOLDER

13091-3780

$8.54

13183

PLATE

13183-3809

$5.61

13227

HOUSING,DRAIN PLUG

13227-3711

Unavailable

13270

PLATE

13270-3860

$8.20

13271

PLATE

13271-3724

$3.85

13271A

PLATE,CARGO NET HOOK

13271-3755

$7.00

13271B

PLATE,REAR TOWING HOOK

13271-3774

Unavailable

13280

HOLDER,EXHAUST VALVE

13280-3718

$25.92

14073

DUCT

14073-3781

$46.22

27012

HOOK

27012-3787

$5.37

27012A

HOOK

27012-3797

$32.91

27012B

HOOK,BOW,F.BLACK

27012-3822-6Z

$39.37

27012C

HOOK,REAR TOWING,F.BLACK

27012-3824-6Z

$127.47

27012D

HOOK,CARGO NET,G.SILVER

27012-3828-F2

$10.66

39031

CAP-END

39031-3704

$41.65

39145

TRIM-SEAL,L=1412

39145-3748

$93.03

39145A

TRIM-SEAL,JET PUMP COVER

39145-3768

$30.81

59426

HULL-COMP,D.R.RED

59426-3899-EU

$3,033.46

59437

STABILIZER,LH,D.R.RED

59437-3733-AB

Unavailable

59437A

STABILIZER,RH,D.R.RED

59437-3734-AB

Unavailable

59446

COVER-JET PUMP

59446-3752

$404.53

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X16

92009-3849

$1.20

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92015A

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.2X20X2

92022-3714

$3.19

92037

CLAMP

92037-509

$4.88

92039

RIVET,4.8MM

92039-3719

$5.42

92039A

RIVET

92039-3755

$5.71

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92066A

PLUG

92066-3772

$10.14

92071

GROMMET

92071-3812

$16.97

92072

BAND,L=201

92072-3778

$1.61

120

BOLT-SOCKET,6X30

120R0630

$3.35

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,5MM

411S0500

$0.78

411A

WASHER-PLAIN,8MM

411S0800

$2.15

92072A

BAND,314X18

92072-3814

$16.78

92093

SEAL

92093-3720

$2.75

92093A

SEAL

92093-3765

$13.53

92150

BOLT,6X18

92150-3729

$3.57

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,M6,SHOULDER

92151-3746

$12.00

92152

COLLAR

92152-3715

$6.39

92160

DAMPER

92160-1012

$4.18

92160A

DAMPER

92160-3793

$7.15

92191

TUBE,39X51X90

92191-3744

Unavailable

92200

WASHER

92200-3779

$4.66
