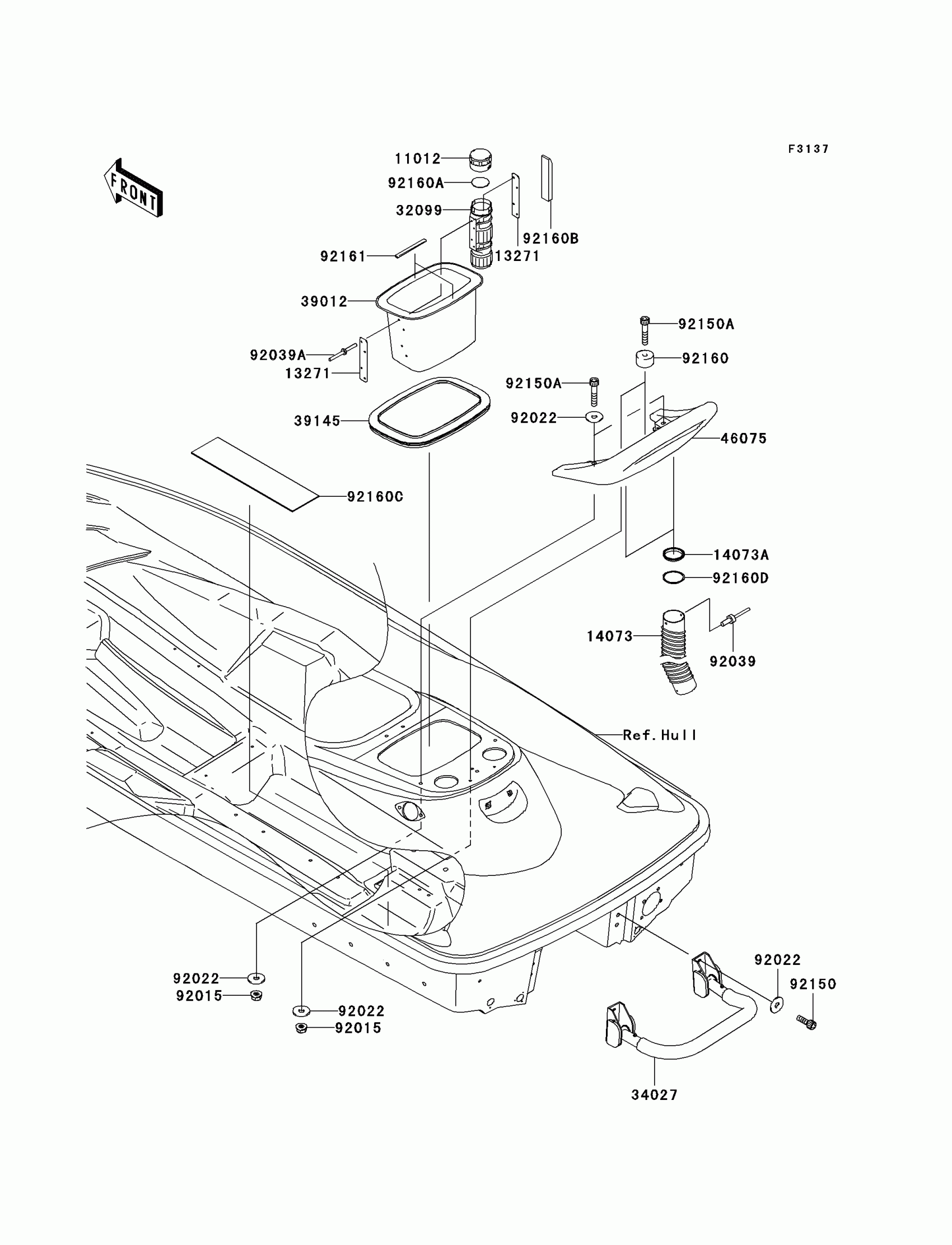

Kawasaki 1100 STX D.I. Hull Rear Fittings Diagram

Description

Price

11012

CAP,FIRE EXTINGUISHER

11012-3766

$10.30

13271

PLATE,FIRE EXTINGUISHER

13271-3775

$12.66

14073

DUCT,FR

14073-3764

$14.55

14073A

DUCT

14073-3780

Unavailable

32099

CASE,FIRE EXTINGUISHER

32099-3769

$19.37

34027

STEP-ASSY

34027-3706

$382.80

39012

CASE-STORAGE,RR

39012-3727

Unavailable

39145

TRIM-SEAL,REAR STORAGE CASE

39145-3783

$36.08

46075

GRIP,RR,F.BLACK

46075-3755-6Z

$231.19

92015

NUT,6MM

92015-3767

$4.69

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92039

RIVET

92039-3747

$1.70

92039A

RIVET

92039-3755

$6.57

92150

BOLT,SOCKET,6X18

92150-3775

$4.69

92150A

BOLT,SOCKET,6X30

92150-3822

$4.31

92160

DAMPER

92160-3738

$14.36

92160A

DAMPER

92160-3814

$7.91

92160B

DAMPER

92160-3821

$8.86

92160C

DAMPER

92160-3839

$22.14

92160D

DAMPER

92160-3910

$5.69

92161

DAMPER

92161-3740

$2.24
