Description

Price

11051

BRACKET,CROSSMEMBER

11051-3782

$17.73

11051A

BRACKET

11051-3811

Unavailable

13107

SHAFT

13107-3761

$4.46

13107A

SHAFT

13107-3769

$4.09

14037

SCREEN,METER,M.R.RED

14037-3709-369

Unavailable

14091

COVER,HANDLE,M.R.RED

14091-3703-369

Unavailable

14091A

COVER,SIDE,LH,M.R.RED

14091-3708-369

Unavailable

14091B

COVER,SIDE,RH,M.R.RED

14091-3709-369

Unavailable

14091C

COVER,CENTER STORAGE,P.BEIGE

14091-3710-QF

Unavailable

27012

HOOK

27012-3830

$25.74

27017

LOCK,CENTER STORAGE

27017-3725

$9.64

39012

CASE-STORAGE

39012-3735

Unavailable

39043

CROSSMEMBER-COMP

39043-3703

$102.54

39145

TRIM-SEAL,L=900

39145-3772

$33.41

53044

TRIM,L=180

53044-3755

$9.52

92002

BOLT,6X25

92002-3714

$5.00

92002A

BOLT,6X30

92002-3726

$4.69

92002B

BOLT,6X12

92002-3763

$4.69

92009

SCREW,TAPPING,5X20

92009-3716

$3.65

92015

NUT,6MM

92015-3767

$4.69

92015A

NUT,LOCK,5MM

92015-3798

$7.99

92015B

NUT,CLIP,5MM

92015-3830

$7.91

92022

WASHER,5X16X1.5

92022-3041

$4.18

92022A

WASHER,6.5X20X1.5

92022-3710

$3.65

92066

PLUG

92066-3773

$1.75

92145

SPRING

92145-3711

$4.96

92150

BOLT,5X16

92150-3778

$4.65

92153

BOLT,5MM

92153-3703

$7.73

92160

DAMPER

92160-3933

$12.90

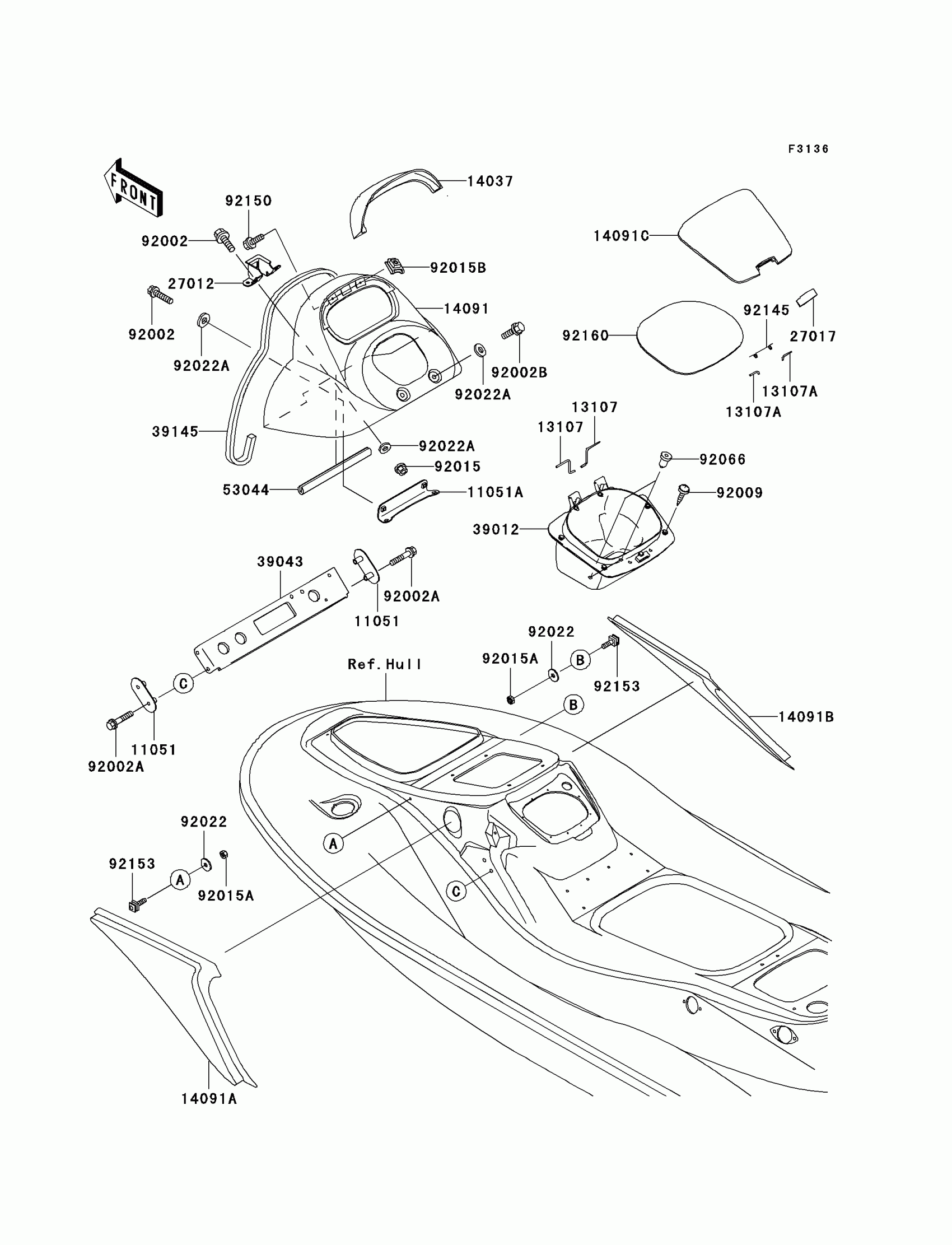

Kawasaki 1100 STX D.I. Hull Middle Fittings Diagram

BRACKET,CROSSMEMBER

BRACKET

SHAFT

SHAFT

SCREEN,METER,M.R.RED

COVER,HANDLE,M.R.RED

COVER,SIDE,LH,M.R.RED

COVER,SIDE,RH,M.R.RED

COVER,CENTER STORAGE,P.BEIGE

HOOK

LOCK,CENTER STORAGE

CASE-STORAGE

CROSSMEMBER-COMP

TRIM-SEAL,L=900

TRIM,L=180

BOLT,6X25

BOLT,6X30

BOLT,6X12

SCREW,TAPPING,5X20

NUT,6MM

NUT,LOCK,5MM

NUT,CLIP,5MM

WASHER,5X16X1.5

WASHER,6.5X20X1.5

PLUG

SPRING

BOLT,5X16

BOLT,5MM

DAMPER
